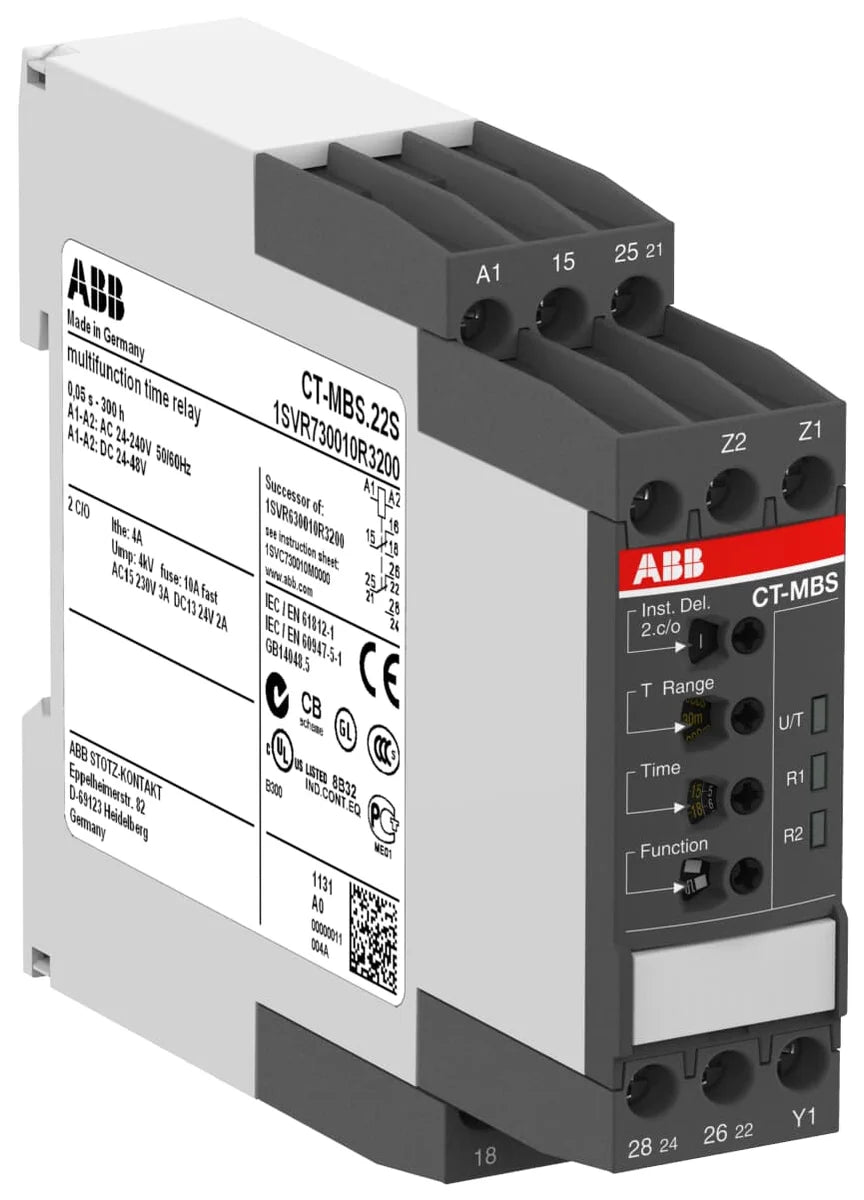

CT-SABB 1SVR730010R3200 CT-MBS.22S Multifunction Timer Relay 2C/O 24-48VDC 24-240VAC 22.5mm
Description
About the CT-MBS.22S
About the CT-MBS.22S
The ABB CT-MBS.22S (SKU: 1SVR730010R3200) is a multifunction timer relay from the CT-S series, delivering versatile time-delay control with 2 changeover (2C/O) output contacts across a wide supply voltage range of 24–48V DC and 24–240V AC. Designed for demanding industrial automation and control panel applications, the CT-MBS.22S features a compact 22.5mm DIN rail footprint and supports multiple timing functions within a single device, simplifying panel design and reducing component count.
Certifications & Standards
- CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
- IEC/EN 63000: Technical documentation for RoHS compliance assessment
- IEC/EN 61812-1: International standard for time relays for industrial and residential use
- UL 508: UL standard for industrial control equipment
- IEC 60715: DIN rail mounting dimensions for electrical equipment
- EN 61812: European standard for time relays
- CSA C22.2: Canadian Standards Association electrical safety standard
- CSA: Canadian Standards Association certified
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Compliant with EU Restriction of Hazardous Substances directive
- CCC: China Compulsory Certification
- cULus: UL certified for both US and Canadian markets
- CE: Conforms to European Union safety, health, and environmental requirements
- UKCA: UK Conformity Assessed marking for Great Britain market
Applications & Use Cases
- Industrial automation and sequential control systems
- Control panel time-delay and interval timing functions
- HVAC and building automation systems
- Motor control and conveyor system timing
- Process control in manufacturing and utilities
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.14 kg |
Technical 28
| Function | Remote potentiometer connection |
|---|---|
| Timer Relay Type | Impulse OFF, Impulse ON, OFF-Delay, ON-Delay, Star-Delta |
| Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC, 24 ... 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Output | 2 C/O Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V, 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V, Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 4.5, 0.8 x 4, Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715, TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508 |
Technical UL/CSA 6
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 2x 20-14 AWG, Rigid 1x 20-12 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 68 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR730010R3200 |
|---|---|
| Type designation | CT-MBS.22S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779851374 |
| eCl@ss | 27371605 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001439 - Timer relay |
|---|---|
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Sweden) | 4033144 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.162 kg |
| Package Level 1 EAN | 4016779851374 |
| Shipping weight | 0.162 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Critical stock |
