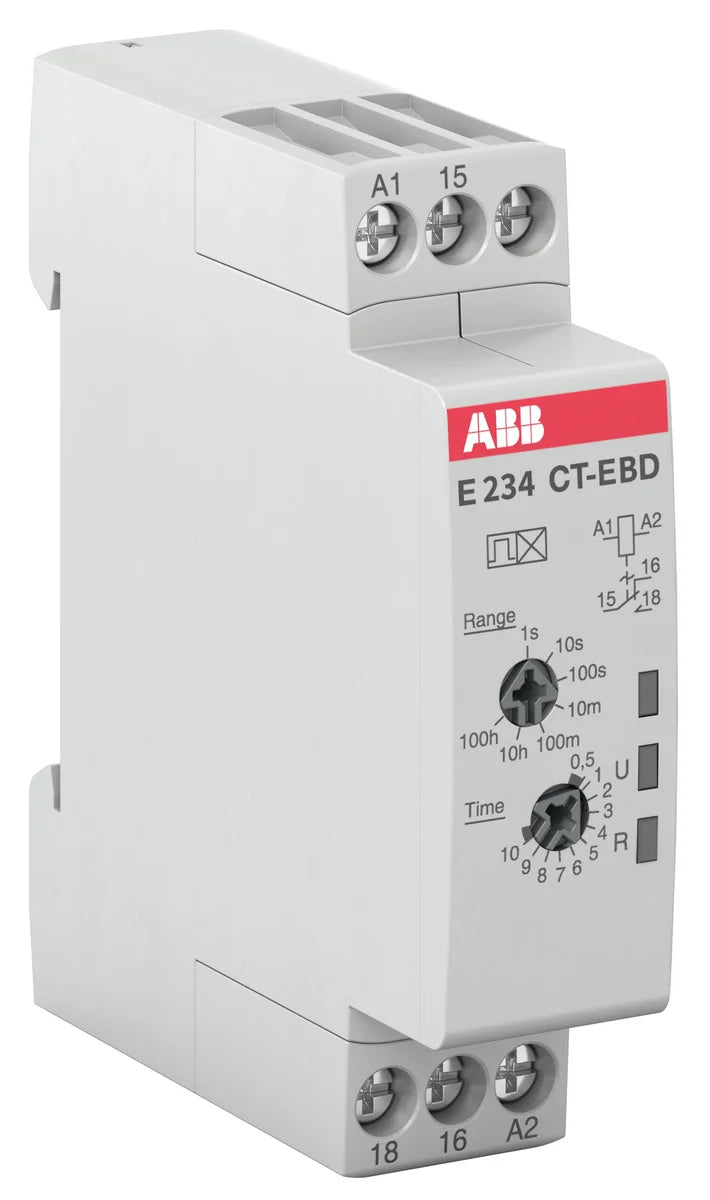

CT-DABB 1SVR500150R0000 CT-EBD.12 24-240VAC 24-48VDC 1C/O Flasher Timer Relay
Description
About the CT-EBD.12
About the CT-EBD.12
The ABB CT-EBD.12 (SKU: 1SVR500150R0000) is a flasher timer relay from the CT-D series, featuring a 1 changeover (1C/O) output contact rated at 6 A / 250 V AC. Designed for DIN rail mounting in control panels and automation cabinets, the CT-EBD.12 operates across a wide supply voltage range of 24–240 V AC and 24–48 V DC, making it highly versatile for global industrial and building automation applications. Its compact 17.5 mm wide housing fits seamlessly into space-constrained installations.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant for Great Britain market
- cULus: Listed by UL for both US and Canadian markets
- UL 508: UL standard for industrial control equipment
- CSA / CAN/CSA C22.2 No.14: Canadian Standards Association — industrial control equipment
- CCC: China Compulsory Certification — approved for the Chinese market
- IEC/EN 61812-1: International standard for time relays for industrial and residential use
- EN 61812-1: European harmonised standard for time relays
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
- EN 63000: European harmonised standard aligned with IEC 63000
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
Applications & Use Cases
- Flashing signal lamps and indicator lights in control panels
- Intermittent audible alarm control in industrial automation systems
- Cyclic switching of loads in building automation and HVAC systems
- Sequential control in machine tool and process automation
- Warning light circuits in transportation and infrastructure applications
Specification
Full specification
Dimensions 4
| Product Net Width | 17.5 mm |
|---|---|
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.052 kg |
Technical 24
| Timer Relay Type | Flasher Starting with ON |
|---|---|
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC, 24 ... 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 1.5 mm² |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4, Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508 |
Technical UL/CSA 6
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Contact Rating UL/CSA | C300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-16 AWG |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | C300 |
| Flammability According to UL94 | V-2 |
Show all 65 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR500150R0000 |
|---|---|
| Type designation | CT-EBD.12 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614350689 |
| eCl@ss | 27371605 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001439 - Timer relay |
|---|---|
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Sweden) | 4033021 |
Logistics 11
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 4013614350689 |
| Package Level 2 EAN | 4013614580284 |
| Shipping weight | 0.052 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR500150R0000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- CCC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61812-1
- UL 508
Quick answers
Questions about the CT-EBD.12
What is the rated current of CT-EBD.12?
The rated current of CT-EBD.12 is 6 A.
Which supply voltage is CT-EBD.12 rated for?
The rated operational voltage of CT-EBD.12 is 250 V AC.
What is the HS code of CT-EBD.12 for customs?
The tariff (HS) code on file for CT-EBD.12 is 85364900.
What is the EAN of CT-EBD.12?
The EAN (GTIN) of CT-EBD.12 is 4013614350689.
Where does CT-EBD.12 ship from, and how fast?
CT-EBD.12 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
