Part number
1SVR427034R0000
Model no
CP-E
$109.66 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
ABB 1SVR427034R0000 CP-E 24/5.0
  • CE
  • CSA
  • RoHS
  • UL
  • UKCA
CP-E

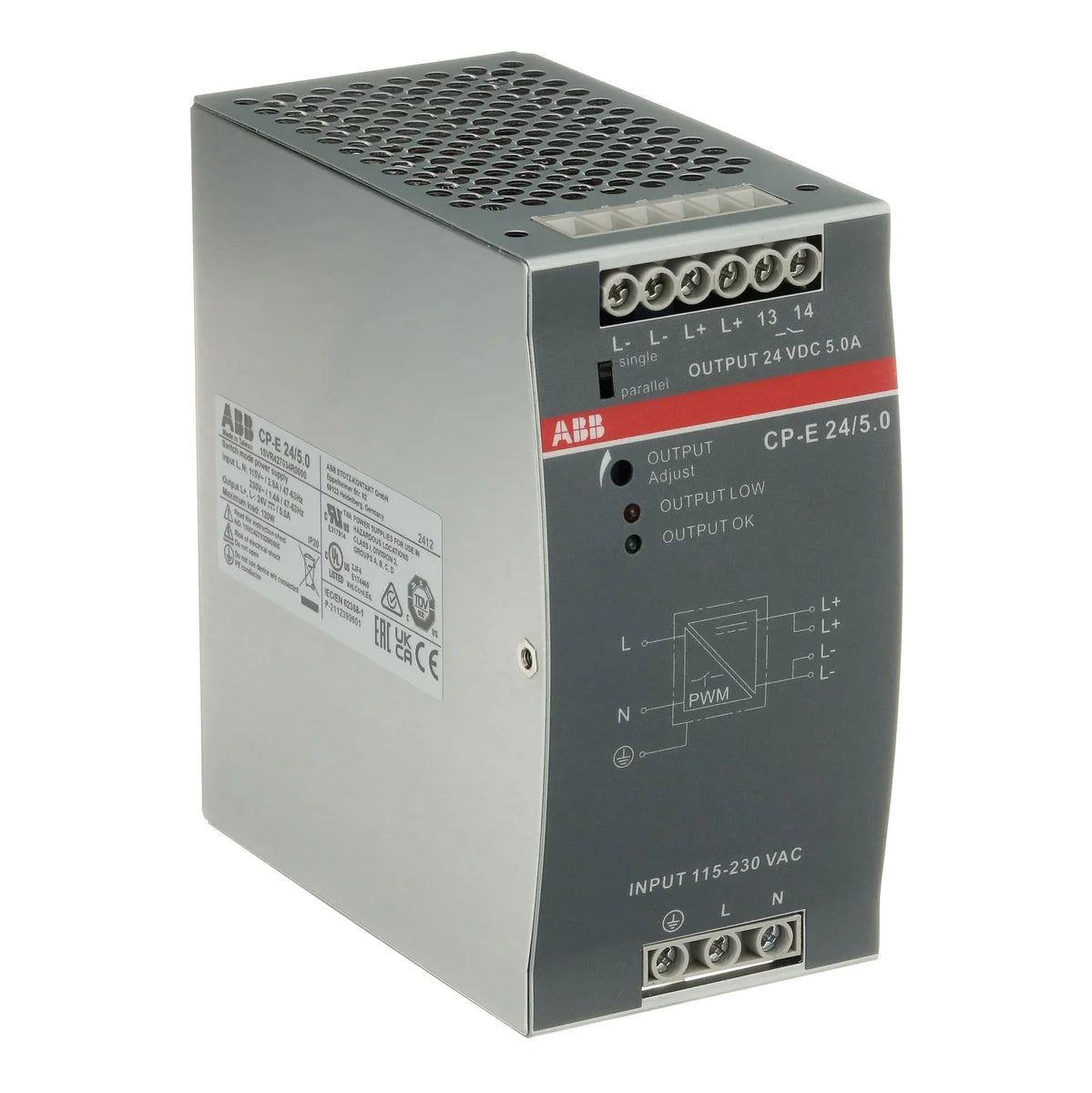

ABB 1SVR427034R0000 CP-E 24/5.0 24VDC 5A 120W DIN Rail DC Power Supply

Ratings Full specification ↓
Rated current
5 A
Rated operational voltage
115–230 V AC
EAN
4016779669689
Other ratings in CP-E All 4 ratings ↓
kW In (A) Part number Stock Price
0.75 1SVR427030R0000 On request $62.38
5 1SVR427034R0000This part Low stock $109.66
10 1SVR427035R0000 Critical stock $149.17
20 1SVR427036R0000 Low stock $234.15
Description

About the CP-E

The ABB CP-E 24/5.0 (SKU: 1SVR427034R0000) is a DIN rail-mounted DC power supply delivering a regulated 24 VDC output at 5 A (120 W) from a wide-range 115/230 V AC input, designed for reliable control panel and industrial automation applications. The CP-E 24/5.0 combines compact dimensions of 63.2 × 123.6 × 123.6 mm with a lightweight 0.882 kg chassis, making it an efficient choice for space-constrained enclosures. Certified to UL, IEC, CSA, CE, and UKCA standards, this ABB power supply meets global deployment requirements.

Certifications & Standards

  • CE: Conformité Européenne — compliance with EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — post-Brexit UK market compliance mark
  • UL 60950: UL safety standard for information technology equipment power supplies
  • UL 508: UL standard for industrial control equipment
  • cUL: Canadian UL recognition for use in Canada
  • IEC 60950-1: International standard for safety of information technology equipment
  • IEC/EN 63000: Technical documentation for assessment of electrical and electronic equipment with respect to restriction of hazardous substances
  • IEC/EN 61000-6: Electromagnetic compatibility — generic emission and immunity standards
  • IEC 61000-4: EMC testing and measurement techniques series
  • EN 63000: European harmonised standard for RoHS technical documentation
  • EN 61000-6: European EMC generic standards for industrial environments
  • CSA: Canadian Standards Association certification
  • CSA C22.2 No. 107: CSA standard for general use power supplies
  • CSA C22.2 No. 213: CSA standard for non-incendive electrical equipment
  • CSA C22.2 No. 60950: CSA equivalent to IEC 60950 safety standard
  • RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
  • REACH: EU Regulation EC 1907/2006 — chemical substance compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive — proper disposal compliance

Applications & Use Cases

  • Control panel and industrial automation power supply rails
  • PLC, HMI, and sensor supply in manufacturing environments
  • Building automation and HVAC control systems
  • Machine tool and process control enclosures
  • 24 VDC bus powering for relay, contactor, and I/O modules
Specification

Full specification

72 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 63.2 mm
Product Net Height 123.6 mm
Product Net Depth / Length 123.6 mm
Product Net Weight 0.882 kg

Technical 26

Function Switch mode power supply
Number of Phases 1-phase
Rated Input Voltage (UIN) 115 / 230 V AC
Input Voltage (Uin) 90 ... 132 V AC, 180 ... 264 V AC, 210 ... 375 V DC
Rated Frequency (f) 50 Hz
Rated Frequency Limits 47 ... 63 Hz
Characteristic of Output U/I Characteristic Curve
Rated Output Power 120 W
Output Power 120 W
Rated Output Voltage 24 V DC
Output Voltage (Uout) 24 V DC, 22.5 ... 28.5 V DC
Rated Output Current 5 A
Output Current 5 A
Rated Impulse Withstand Voltage (Uimp) Input Circuit / Output Circuit 4 kV, Input Circuit / PE 2.5 kV, Input Circuit / Relay Contact 4 kV, Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 300 V, Input Circuit / PE 300 V, Input Circuit / Relay Contact 300 V, Output Circuit / PE 50 V
Degree of Protection Housing IP20, Terminals IP20
Pollution Degree 2
Connecting Capacity Input Circuit Flexible with Ferrule 0.2 ... 4 mm², Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit Flexible with Ferrule 0.2 ... 4 mm², Rigid 0.2 ... 6 mm²
Tightening Torque Input Circuit 1 N·m, Output Circuit 0.62 N·m
Wire Stripping Length Input Circuit 8 mm, Output Circuit 8 mm
Recommended Screw Driver PH2
Minimum Mounting Distance Electrical Conductive Board, Horizontal 25 mm, Electrical Conductive Board, Vertical 25 mm, Other Device Same Type, Horizontal 25 mm, Other Device Same Type, Vertical 25 mm
Mounting Position 1
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL 60950

Technical UL/CSA 3

Connecting Capacity Input Circuit UL/CSA Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA Rigid 24-10 AWG
Tightening Torque UL/CSA Input Circuit 9 in·lb, Output Circuit 5.5 in·lb
Show all 72 specifications ↓ Show less ↑39 more values in Identification, Electromagnetic Compatibility, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 11

Part number 1SVR427034R0000
Type designation CP-E
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779669689
ETIM class EC002540
eCl@ss 27040701
Minimum Order Quantity 1 piece
Customs Tariff Number 85044095

Electromagnetic Compatibility 6

Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 Level 4 Air Discharge 15 kV, Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5 Level 3 Line-to-Line 2 kV, Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6 Level 3 10 V
Electromagnetic Compatibility (EMC) Immunity - Class B, Emission - Class B

Environmental 2

Ambient Air Temperature Operation -35 ... +70 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible 5000 m

Material Compliance 6

REACH Declaration 1SVD982001-4501
RoHS Declaration 1SVD982001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006535
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 4

ETIM 10 EC002540 - DC-power supply
eClass V11.0 : 27040701
UNSPSC 39121004
E-Number (Sweden) 5248134

Logistics 10

Package Level 1 Width 162 mm
Package Level 1 Depth / Length 160 mm
Package Level 1 Height 85 mm
Package Level 1 Gross Weight 0.998 kg
Package Level 1 EAN 4016779669689
Package Level 1 Units box 1 piece
Shipping weight 0.882 kg
Ships from Türkiye
Dispatch 16 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR427034R0000

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in CP-E
Motor power Rated current Part number Model no Stock Dispatch Price
0.75 A 1SVR427030R0000 CP-E On request — $62.38 Quote
5 A 1SVR427034R0000 This part CP-E Low stock $109.66
10 A 1SVR427035R0000 CP-E Critical stock $149.17
20 A 1SVR427036R0000 CP-E Low stock $234.15
Certifications

Certifications and standards
  • CE
  • CSA
  • RoHS
  • UL
  • UKCA
  • ANSI/ISA-12.12
  • CAN/CSA C22.2 No.107.1
  • CAN/CSA C22.2 No.213
  • CAN/CSA C22.2 No.60950
  • IEC/EN 63000
  • IEC 60950-1
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
  • UL 60950
Quick answers

Questions about the CP-E

What is the rated current of CP-E?

The rated current of CP-E is 5 A.

Which supply voltage is CP-E rated for?

The rated operational voltage of CP-E is 115–230 V AC.

What is the HS code of CP-E for customs?

The tariff (HS) code on file for CP-E is 85044095.

What is the EAN of CP-E?

The EAN (GTIN) of CP-E is 4016779669689.

Where does CP-E ship from, and how fast?

CP-E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
