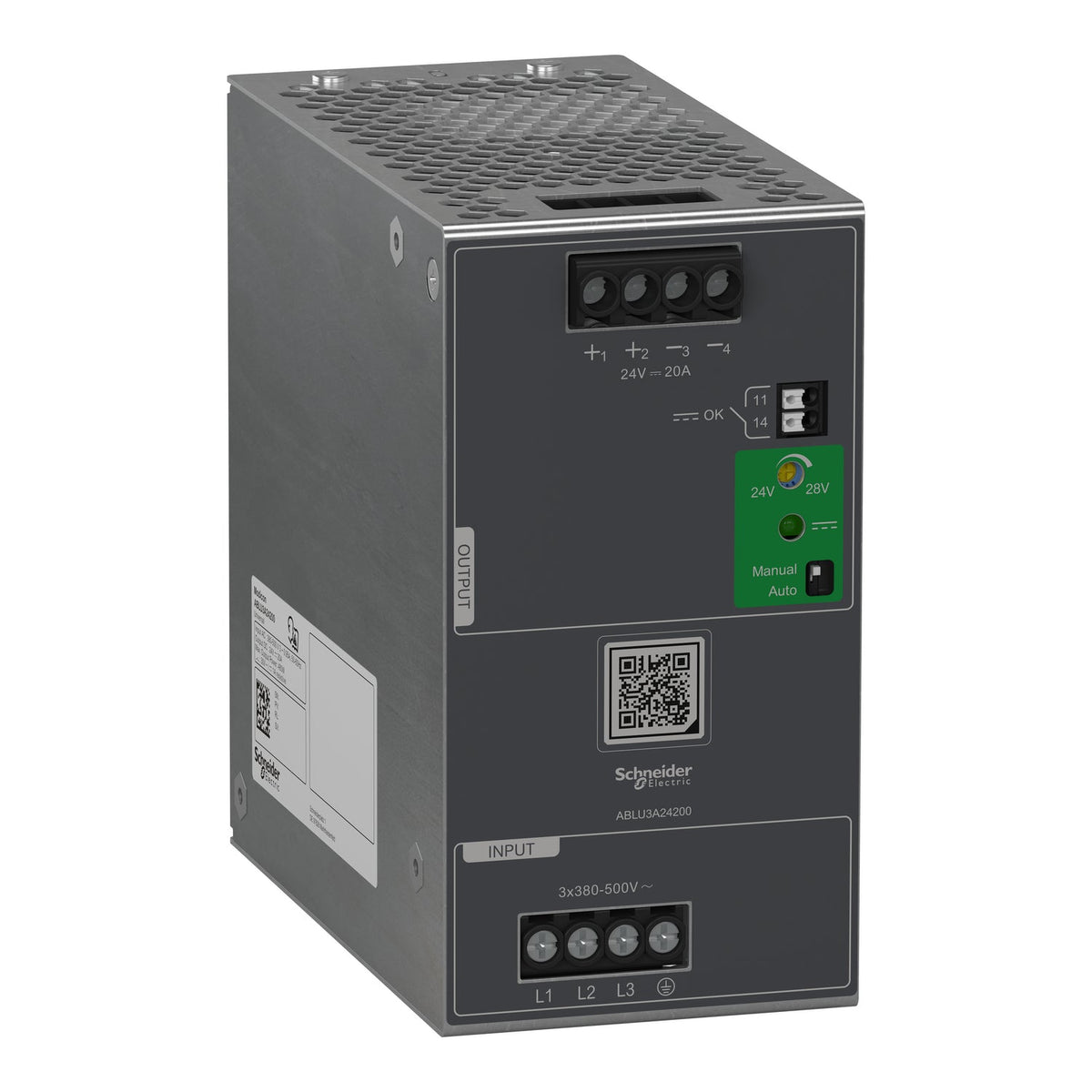

Modicon Power SupplySchneider Electric ABLU3A24200 Modicon 24 V DC 20 A 3-Phase 380-500 V AC Universal Regulated Power Supply
Modicon Universal regulated power supply, 380-500V AC 3-phase input, 24V DC 20A output, 480W, metal housing, DIN rail.
Description
About the ABLU3A24200
About the ABLU3A24200
The Schneider Electric ABLU3A24200 is a Modicon Universal regulated switch-mode power supply that converts a 380-500 V AC three-phase input into a stable 24 V DC output at 20 A, delivering 480 W. Built in a metal enclosure for a 35 mm DIN rail, it protects connected loads against overload, short-circuit, and overvoltage with automatic or manual reset.
Certifications & Standards
- CE
- cULus Listed
- cURus Recognized
- RCM
- CB Scheme
- EAC
- KC
- UKCA
- IEC 62368-1
- UL 62368-1
- CSA C22.2 No 62368-1
- CSA C22.2 No. 107.1
- EN/IEC 61204-3
- IEC 61000-6-1
- IEC 61000-6-2
- IEC 61000-6-3
- IEC 61000-6-4
- IEC 61000-3-2
- EN 61000-3-3
Selection Notes
The ABLU3A24200 suits three-phase 380-500 V AC installations that need 20 A of continuous 24 V DC output - its metal enclosure and Universal input range cover both European and North American three-phase voltages without a separate model. Where the load draws more than 20 A, the 40 A Universal-range unit in the same family is the better fit; where only single-phase or DC supply is available, a compact single-phase Modicon ABL unit applies instead.
Specification
Full specification
Main 10
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Universal |
| Enclosure Material | Metal |
| Nominal input voltage | 380...500 V AC three phase |
| Rated power in W | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In for 5 seconds) |
Complementary 32
| Efficiency at full load | 320...575 V AC 3 phase |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN, TT, IT |
| Maximum leakage current | 2 mA 500 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A, External protection (recommended) |
| Inrush current | 35 A 380 V, 35 A 500 V |
| Power factor | 0.90 at 380 V AC, 0.88 at 500 V AC |
| Efficiency | 93 % 380 V AC, 93 % 500 V AC |
| Output voltage adjustment | 24...28 V |
| Power dissipation in W | 33 W |
| Current consumption | < 0.85 A 380 V AC, < 0.73 A 500 V AC |
| Turn-on time | < 1 s |
| Holding time | > 20 ms 380 V AC, > 20 ms 500 V AC |
| Startup with capacitive loads | 200000 µF |
| Residual ripple | < 150 mV |
| Meantime between failure [MTBF] | 876500 h at 77 °F (25 °C), full load conforming to SR 332, 374800 h at 131 °F (55 °C), 80 % load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: manual or automatic reset by switch, Against over temperature, protection technology: automatic reset, Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 4...6 mm², 12 AWG...10 AWG) without wire end ferrule output, Screw connection 4 mm², 12 AWG) with wire end ferrule output, Screw connection 0.75…6 mm², 18 AWG...12 AWG) without wire end ferrule input, Screw connection 0.75...4 mm², 18 AWG...12 AWG) with wire end ferrule input, Cage clamp 0.2...1.5 mm², 22 AWG...16 AWG) without wire end ferrule diagnostic relay, Cage clamp 0.2...0.75 mm², 22 AWG...18 AWG) with wire end ferrule diagnostic relay, Cage clamp 0.2...0.75 mm², 22 AWG...18 AWG) with wire end ferrule shut down input |
| Line and load regulation | < 0.17 % network 100 % load in line at 77 °F (25 °C), < 0.6 % +/- 0.5 % network 150 % load at 77 °F (25 °C) |
| Status LED | 1 LED (green and red) product status |
| Depth | 5.01 in (127.3 mm) |
| Height | 4.9 in (124 mm) |
| Width | 2.6 in (65 mm) |
| Net Weight | 2.54 lb(US) (1.15 kg) |
| Output coupling | Parallel |
| Marking | CE, UKCA |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 4000 V AC with input to output, 2000 V AC with input to ground, 1500 V AC with output to ground, 4000 V AC with input to diagnostic relay, 500 V AC with output to diagnostic relay, 1500 V AC with diagnostic relay to ground, with shutdown input not isolated from output |
| Diagnostic relay | Electromechanical relay 1000.0 mA 30 V |
| Service life | 10 year(s) 104 °F (40 °C) 80 % load |
| Overvoltage category | III, II |
Environment 11
| Standards | IEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, CSA C22.2 No. 107.1 |
|---|---|
| Product certifications | CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, CURus |
| Operating altitude | < 5000 m overvoltage category III, overvoltage category II |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -13…131 °F (-25…55 °C) without current derating mounting position A < 6561.68 ft (2000 m), 131…158 °F (55…70 °C) with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f= 3…11.9 Hz) conforming to IEC 60068-2-6, 20 m/s² (f= 11.9…150 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4 |
Show all 66 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLU3A24200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482185258 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | TH |
|---|---|
| Shipping weight | 1.15 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
