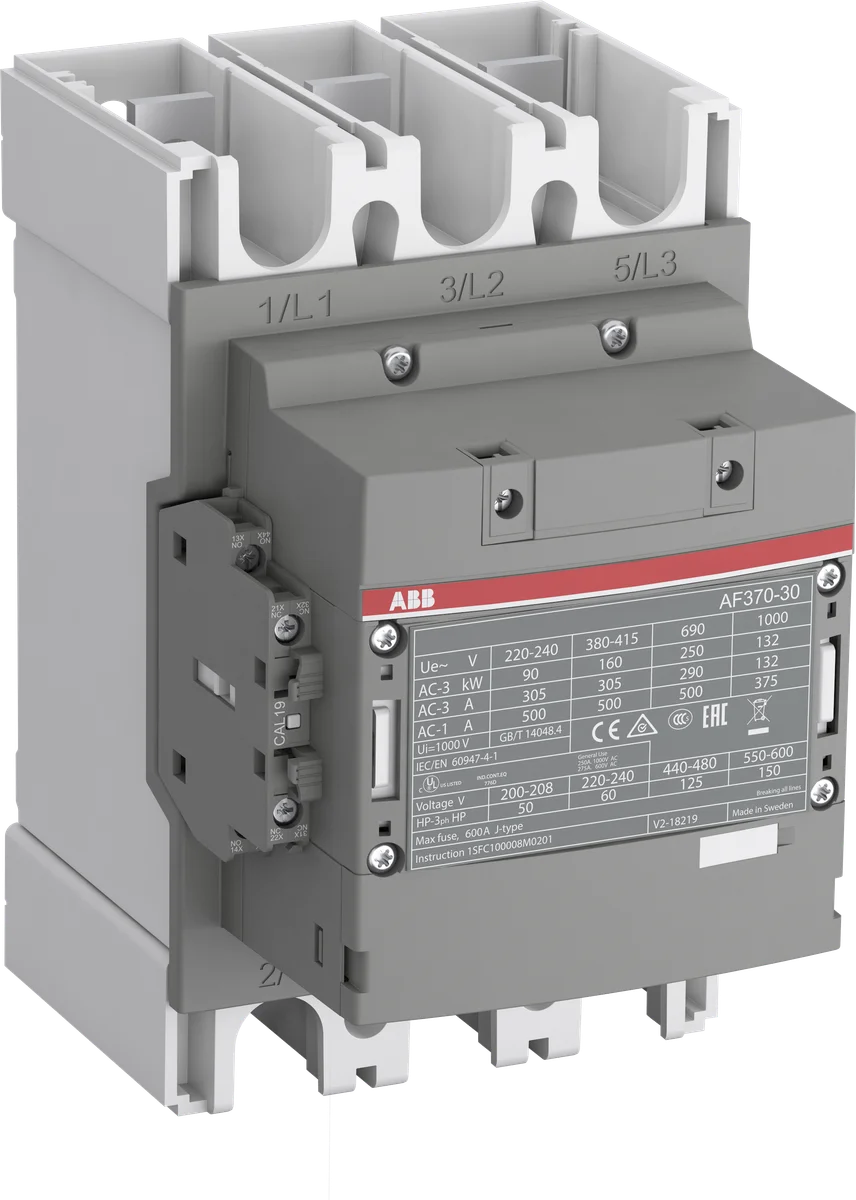

ABB 1SFL607002R1311 AF370-30-11-13 3-Pole 600A 1000V AC-1 200kW Power Contactor AC Switching

The ABB AF370-30-11-13 (SKU: 1SFL607002R1311) is a 3-pole AC power contactor rated at 600 A AC-1 and 1000 V IEC, delivering 200 kW at 400 V AC-3 for heavy-duty industrial switching applications. Part of ABB's trusted AF series, the AF370-30-11-13 is engineered for demanding control panel and motor switching duties where reliability, global certification, and high current capacity are non-negotiable. With a UL general-use rating of 520 A at 600 V and 300 hp at 480 V, this contactor bridges IEC and UL environments seamlessly.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union directives for electrical equipment safety and electromagnetic compatibility
• UKCA: UK Conformity Assessed — compliant for Great Britain market requirements
• cULus: Listed by Underwriters Laboratories for both US (UL) and Canadian (cUL) markets; UL File E36588
• CCC (CQC): China Compulsory Certification for the Chinese market
• CCS: China Classification Society approval for marine applications
• DNV: Det Norske Veritas type approval for offshore and marine installations
• KC EMC: Korean Certification for electromagnetic compatibility
• LR (Lloyd's Register): Type approved by Lloyd's Register for marine and offshore use
• PRS: Polski Rejestr Statków — Polish Ship Register approval
• RINA: Registro Italiano Navale approval for marine applications
• CB (SE-89316): International CB Scheme certificate for global market acceptance
• UL E36588: UL file number confirming North American listing
• IEC 60947-4: International standard for AC contactors and motor-starters
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60529: Degrees of protection provided by enclosures (IP rating standard)
• EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• EN 45555-76: Specific product family requirements under EN 45555
• CSA: Canadian Standards Association certification
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances — compliant with EU RoHS directive
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive

Applications & Use Cases

• Heavy-duty AC motor switching in industrial drives and compressor systems
• Main and distribution panel switching for large loads up to 600 A
• Marine and offshore power distribution (DNV, LR, RINA, CCS, PRS approved)
• Industrial automation and process control panels requiring IEC 60947-4 compliance
• Global OEM installations requiring simultaneous IEC and UL/CSA market coverage
