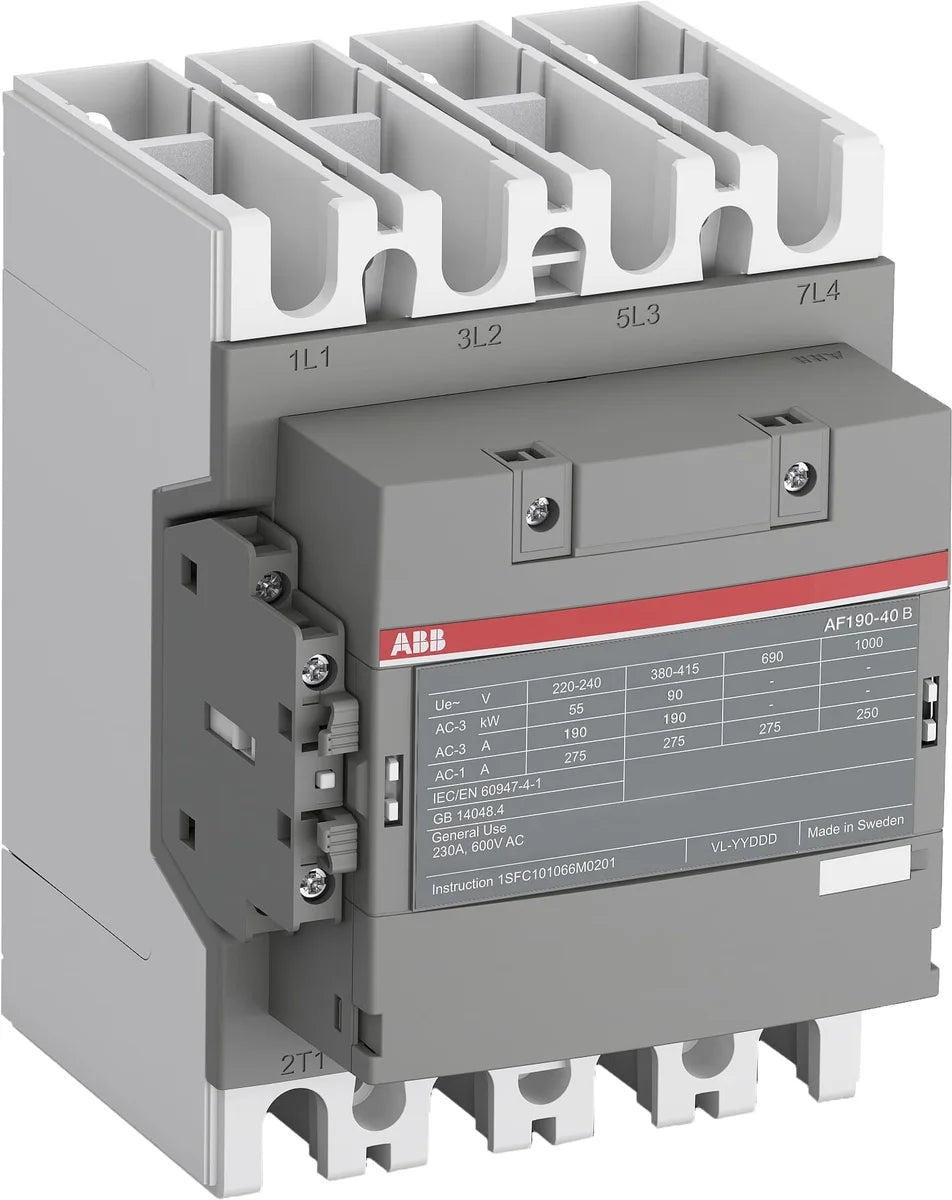

The ABB AF190-40-11-11 power contactor (SKU: 1SFL487102R1111) is a heavy-duty 4-pole AC switching contactor rated at 275 A (AC-1) and 1000 V IEC, delivering 90 kW at 400 V AC (AC-3) for demanding industrial applications. Designed for motor switching, heating, and capacitor bank control in commercial and industrial environments, the AF190-40-11-11 combines a robust construction with a wide operating voltage coil and comprehensive global certification coverage.
| Product Net Width | 140 mm |
|---|---|
| Product Net Depth / Length | 153 mm |
| Product Net Height | 196 mm |
| Product Net Weight | 3.3 kg |
| Number of Main Contacts NO | 4 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 4P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 275 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 250 A, (1000 V) 60 °C 225 A, (1000 V) 70 °C 185 A, (690 V) 40 °C 275 A, (690 V) 60 °C 250 A, (690 V) 70 °C 200 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 190 A, (440 V) 60 °C 190 A, (380 / 400 V) 60 °C 190 A, (220 / 230 / 240 V) 60 °C 190 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 90 kW, (440 V) 110 kW, (380 / 400 V) 90 kW, (220 / 230 / 240 V) 55 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 355 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 275 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 878 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1900 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1520 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 621 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3300 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour, (AC-3) 300 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V, 60 Hz 24 ... 60 V, DC Operation 20 ... 60 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 10.5 V·A, Holding at Max. Rated Control Circuit Voltage 50 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage 60 Hz 10.5 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage DC 2.6 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 294 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 294 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 W |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 11 W, at Rated Operating Conditions AC-3 per Pole 5 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 45 ... 80 ms, Between Coil Energization and NO Contact Closing 25 ... 60 ms |
| Connecting Capacity Main Circuit | Flexible 2 x 50 ... 95 mm², Rigid Al-Cable 1 x 95 ... 185 mm², Rigid Cu-Cable 2 x 50 ... 120 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm² |
| Connecting Capacity | Flexible 2 x 50 ... 95 mm², Rigid Cu-Cable 2 x 10 ... 95 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening Torque | Cable Lug 9 N·m, Main Circuit 14 ... 31 N·m |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
|---|---|
| General Use Rating UL/CSA | (600 V AC) 230 A |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 20 Hp, (200 V AC) Three Phase 50 hp, (208 V AC) Three Phase 50 hp, (220 ... 240 V AC) Three Phase 25 Hp, (220 ... 240 V AC) Three Phase 60, (440 ... 480 V AC) Three Phase 60 Hp, (440 ... 480 V AC) Three Phase 125 hp, (550 ... 600 V AC) Three Phase 75 Hp, (550 ... 600 V AC) Three Phase 150 hp |
| Part number | 1SFL487102R1111 |
|---|---|
| Type designation | AF190-40-11-11 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500504215 |
| eCl@ss | 27371003 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC000066 - Power contactor, AC switching |
|---|---|
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| E-Number (Sweden) | 3210325 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 166 mm |
| Package Level 1 Depth / Length | 238 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Gross Weight | 3.9 kg |
| Package Level 1 EAN | 7320500504215 |
| Shipping weight | 3.9 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
