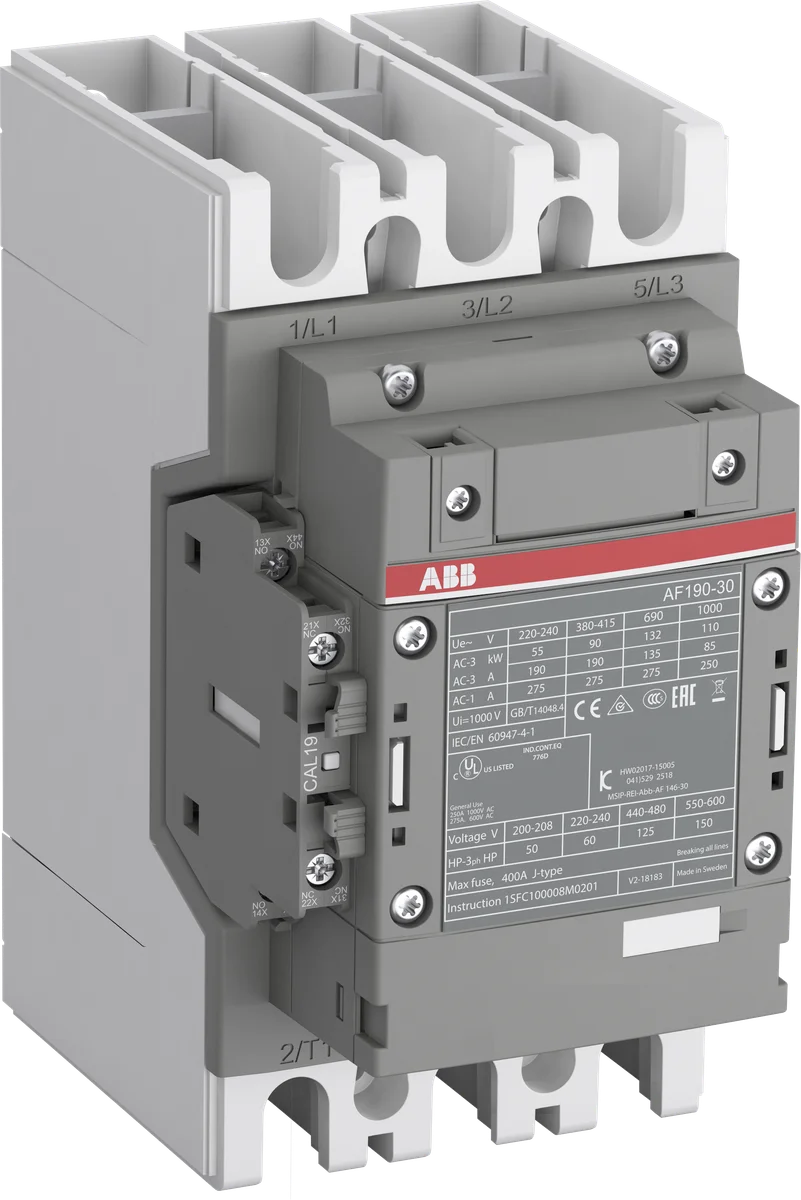

ABB 1SFL487002R1111 AF190-30-11-11 3-Pole 275A 1000V AC-1 90kW AF Series Power Contactor AC Switching

The ABB AF190-30-11-11 is a 3-pole AC power contactor (SKU: 1SFL487002R1111) rated for 275 A at AC-1 and up to 1000 V IEC, designed for demanding industrial switching applications where reliability and high-current performance are critical. Part of ABB's proven AF series, the AF190-30-11-11 delivers 90 kW motor switching capability at 400 V AC-3, making it a premier choice for motor starters, control panels, and heavy-duty automation systems.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental protection requirements
• UKCA: UK Conformity Assessed marking for Great Britain market compliance
• cULus: Certified by Underwriters Laboratories for both US and Canadian markets
• ABS: Approved by the American Bureau of Shipping for marine applications
• BV: Bureau Veritas type approval for marine and offshore use
• CB: CB Scheme international safety certification for global market access
• CCS: China Classification Society approval for marine applications
• CQC: China Quality Certification Centre approval
• DNV: Det Norske Veritas type approval for marine and offshore environments
• KC: Korea Certification mark for the South Korean market
• LR: Lloyd's Register type approval for marine applications
• PRS: Polish Register of Shipping approval
• RINA: Registro Italiano Navale approval for marine use
• IEC 60947-4: Compliance with IEC standard for low-voltage switchgear — contactors and motor starters
• IEC 60947-1: Compliance with IEC general rules for low-voltage switchgear and controlgear
• CSA: Canadian Standards Association certification
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances directive compliant
• WEEE: Waste Electrical and Electronic Equipment directive compliant

Applications & Use Cases

• Heavy-duty motor starting and switching in industrial automation systems
• Control panel integration for large AC motors up to 90 kW / 125 hp
• Marine and offshore power distribution (DNV, ABS, LR, BV, CCS, RINA, PRS approved)
• High-current load switching in manufacturing and process industries
• Building services and HVAC systems requiring reliable AC switching
• Motor controller assemblies and motor starter combinations
