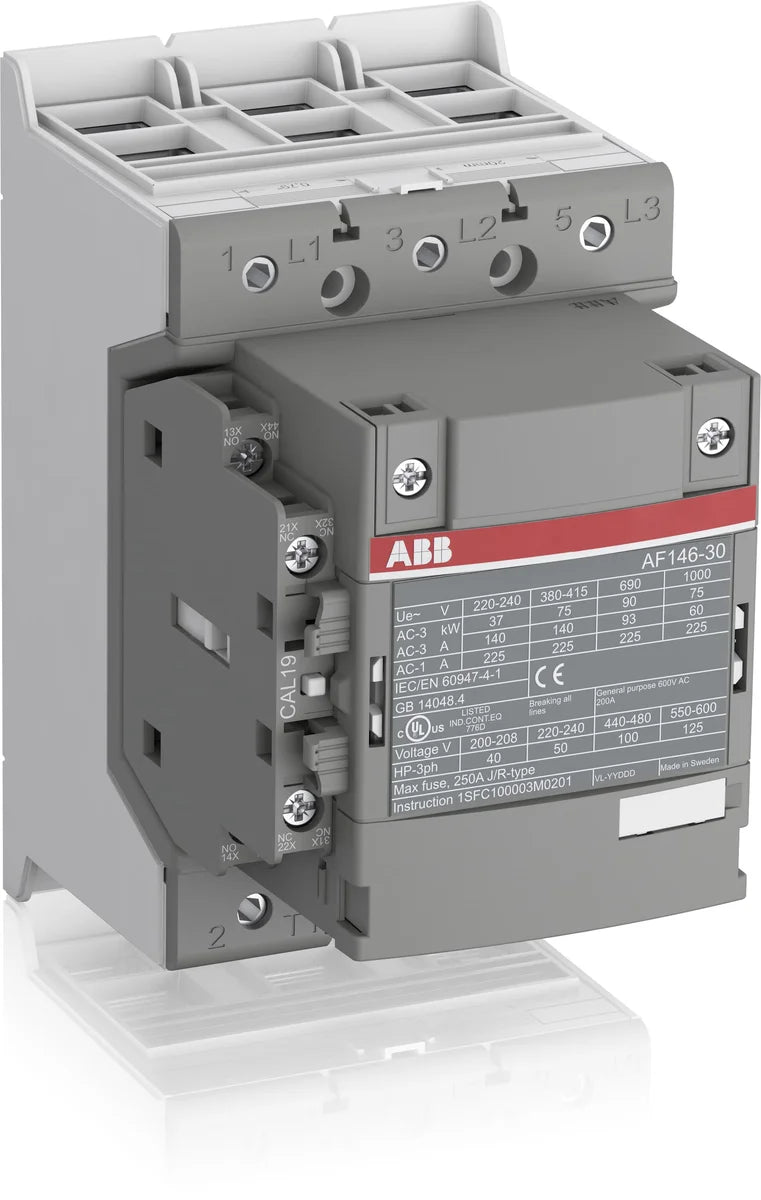

ABB 1SFL467001R1111 AF146-30-11-11 3-Pole 225A 1000V AC-1 75kW Power Contactor AC Switching

The ABB AF146-30-11-11 (SKU: 1SFL467001R1111) is a 3-pole heavy-duty power contactor designed for AC switching applications, rated 225 A (AC-1) at up to 1000 V IEC and delivering 75 kW at 400 V AC-3. Part of ABB's AF146 series, this contactor is engineered for demanding industrial environments and carries an extensive portfolio of international approvals including CE, cULus, DNV, and Lloyd's Register.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU health, safety, and environmental requirements
• UKCA: UK Conformity Assessed — confirms compliance with Great Britain market regulations
• cULus: UL E36588 — certified to both US and Canadian safety standards
• CQC: China Quality Certification — approved for the Chinese market
• KC Safety: Korean Certification for electrical safety
• KC EMC: Korean Certification for electromagnetic compatibility
• DNV: Det Norske Veritas — approved for marine and offshore applications
• LR (Lloyd's Register): Marine type approval by Lloyd's Register
• PRS: Polski Rejestr Statków — Polish ship classification society approval
• RINA: Registro Italiano Navale — Italian naval classification approval
• CCS: China Classification Society — marine equipment approval
• SEMKO: Swedish Electrical Safety certification
• UL 2799: UL Standard for Zero Waste certification
• IEC 60947-4: Low-voltage switchgear and controlgear — contactors and motor-starters
• IEC 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60529: Degrees of protection provided by enclosures (IP code)
• EN 45555: General methods for assessment of the ability to recover materials from electrical and electronic equipment
• CSA: Canadian Standards Association — certified to Canadian requirements
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Motor switching and control in industrial automation systems
• Large pump, fan, and compressor drives up to 75 kW (IEC) / 100 hp (UL)
• Marine and offshore power distribution panels (DNV, LR, RINA, CCS, PRS approved)
• Heavy-duty resistive and capacitive load switching in control panels
• High-voltage bus switching up to 1000 V IEC in industrial installations
• OEM machine building requiring globally recognised multi-certification
