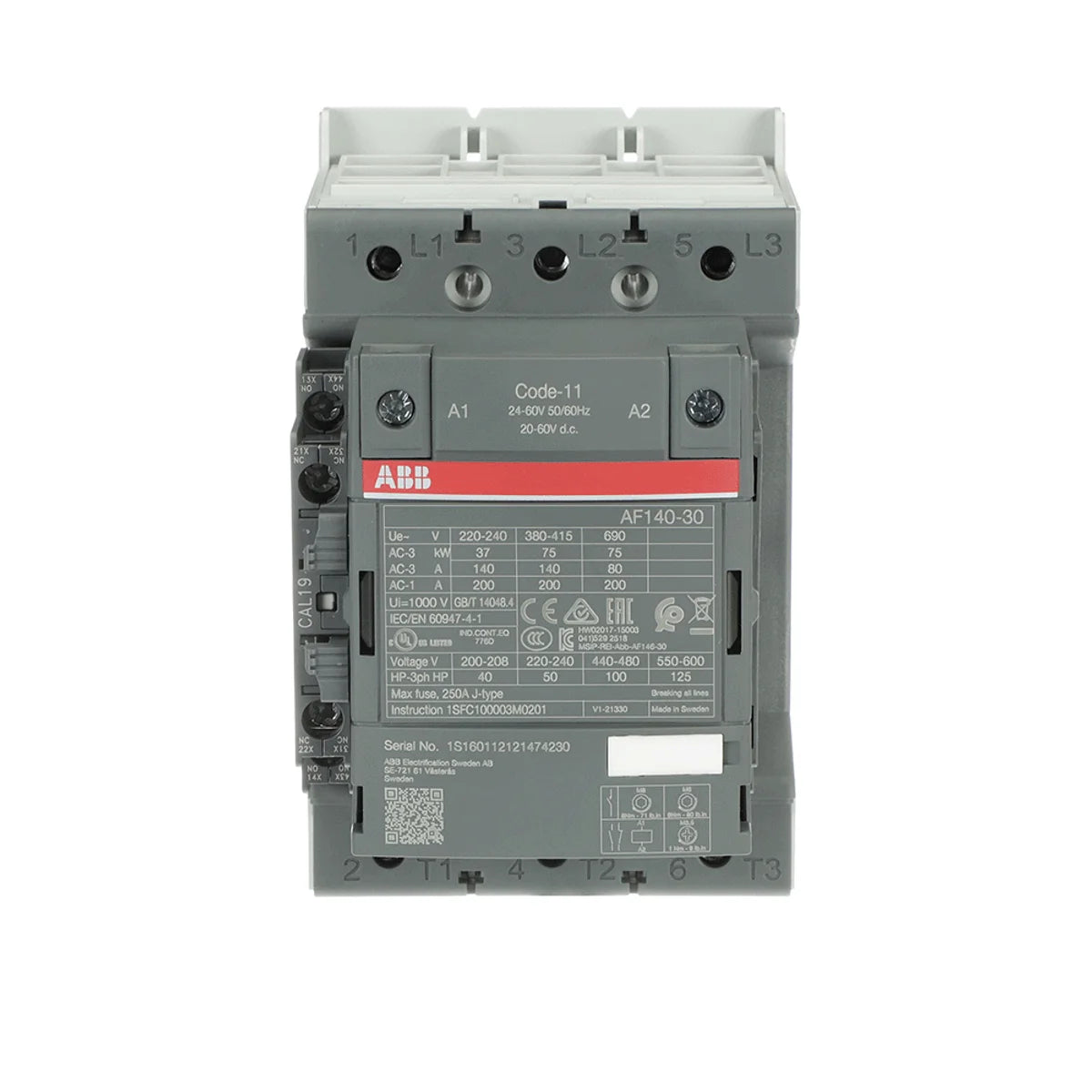

ABB 1SFL447001R1111 AF140-30-11-11 3-Pole 200A 690V AC-3 75kW Power Contactor AC Switching

The ABB AF140-30-11-11 (SKU: 1SFL447001R1111) is a 3-pole, 200 A power contactor rated for AC switching at up to 690 V IEC / 600 V UL, delivering 75 kW at 400 V AC (AC-3) or 100 hp at 480 V UL. Part of ABB's proven AF-series range, the AF140-30-11-11 is engineered for demanding industrial motor control and power switching applications requiring high reliability, compact dimensions, and broad international certification coverage.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
• cULus: Listed to both Canadian (CSA) and US (UL) standards for North American markets
• UL: Underwriters Laboratories listed for the US market
• CCC: China Compulsory Certification — required for the Chinese market
• CQC: China Quality Certification Centre voluntary certification
• KC: Korea Certification mark for the South Korean market
• ABS: American Bureau of Shipping marine type approval
• BV: Bureau Veritas marine and industrial type approval
• DNV: Det Norske Veritas type approval for marine and offshore applications
• LR: Lloyd's Register type approval for marine applications
• CCS: China Classification Society type approval
• RINA: Registro Italiano Navale marine type approval
• PRS: Polish Register of Shipping type approval
• CB: IECEE CB Scheme — internationally recognised safety certification
• IEC 60947-4: International standard for low-voltage switchgear — contactors and motor starters
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60529: Degrees of protection provided by enclosures (IP Code)
• VDE: Verband der Elektrotechnik — German electrical engineering standards compliance
• CSA: Canadian Standards Association certification for Canadian market
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Industrial motor control and starting for 3-phase AC motors up to 75 kW / 100 hp
• Control panel and MCC (Motor Control Centre) assemblies
• Pump, fan, compressor, and conveyor drive switching
• Marine and offshore electrical systems (ABS, BV, DNV, LR, CCS, RINA, PRS approved)
• Process automation and industrial machinery in demanding environments
• Power distribution switching in factories, utilities, and infrastructure projects
