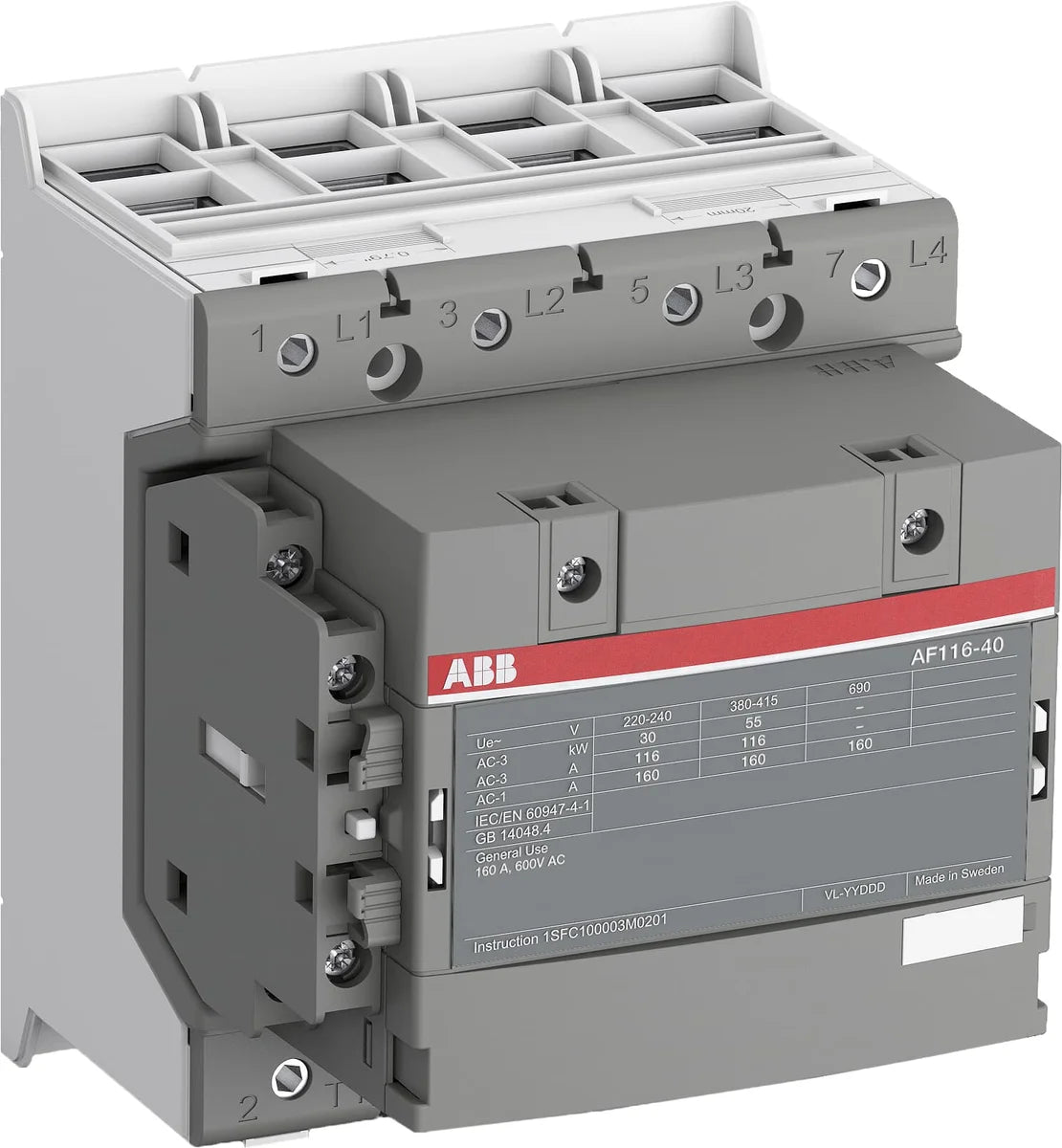

ABB 1SFL427101R1311 AF116-40-11-13 4-Pole 160A 690V AC 55kW Power Contactor AC Switching
Brand:
ABB
Reference No:
1SFL427101R1311
Catalog No:
AF116-40-11-13
Series:
AF
Tariff Code (GTIP):
85364900
Stock: 27
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$310.51
- Description
The ABB AF116-40-11-13 (SKU: 1SFL427101R1311) is a 4-pole AC power contactor rated at 160 A and up to 690 V IEC, delivering 55 kW at 400 V AC for heavy-duty industrial switching applications. Part of ABB's proven AF-series contactor range, the AF116-40-11-13 features a wide-range coil for flexible control voltage compatibility and is built to meet the demands of demanding motor control and distribution panel environments.
Technical Specifications
| Catalog Number | AF116-40-11-13 |
| SKU | 1SFL427101R1311 |
| Brand | ABB |
| Series | AF |
| Model | AF116 |
| Product Type | Power Contactor, AC Switching |
| Rated Current | 160 A |
| Rated Voltage | 690 V IEC / 600 V UL |
| Number of Poles | 4 |
| Motor Power (400 V AC) | 55 kW |
| Dimensions (W × D × H) | 147 mm × 197 mm × 155 mm |
| Weight | 2.25 kg |
| EAN | 7320500503959 |
Certifications & Standards
- CE: Conformity with European Union safety, health, and environmental requirements
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
- cULus: UL and CSA dual certification for North American markets
- CCC: China Compulsory Certification for the Chinese market
- CQC: China Quality Certification Centre voluntary product certification
- DNV: Det Norske Veritas marine and offshore type approval
- KC Safety: Korea Certification mark for electrical safety compliance
- KC EMC: Korea Certification mark for electromagnetic compatibility
- LR (Lloyd's Register): Type approval for marine and offshore installations
- PRS: Polski Rejestr Statków — Polish ship classification society approval
- RINA: Registro Italiano Navale — Italian naval registry type approval
- CCS: China Classification Society approval for marine applications
- IEC 60947-4: Low-voltage switchgear — contactors and motor starters standard
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
- UL 2799: Standard for Electrical Energy Storage Systems
- CSA: Canadian Standards Association certification
- REACH: Compliance with EU regulation on chemicals (Registration, Evaluation, Authorisation and Restriction)
- RoHS: Restriction of Hazardous Substances Directive compliance
- WEEE: Waste Electrical and Electronic Equipment Directive compliance
Applications & Use Cases
- Motor control centres (MCCs) for industrial drive switching up to 55 kW at 400 V AC
- Heavy-duty HVAC and pump systems requiring reliable 160 A AC switching
- Marine and offshore installations — certified by DNV, LR, PRS, RINA, and CCS
- Automation and control panel assemblies in manufacturing environments
- Power distribution and load switching in industrial facilities up to 690 V IEC
Technical Details
Catalog No
AF116-40-11-13
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
AF116-40-11-13
Tariff Code
85364900
