- Part number
- 1SFA619210R1026
- Model no
- C3SS1-10B-20
Description
About the C3SS1-10B-20
About the C3SS1-10B-20

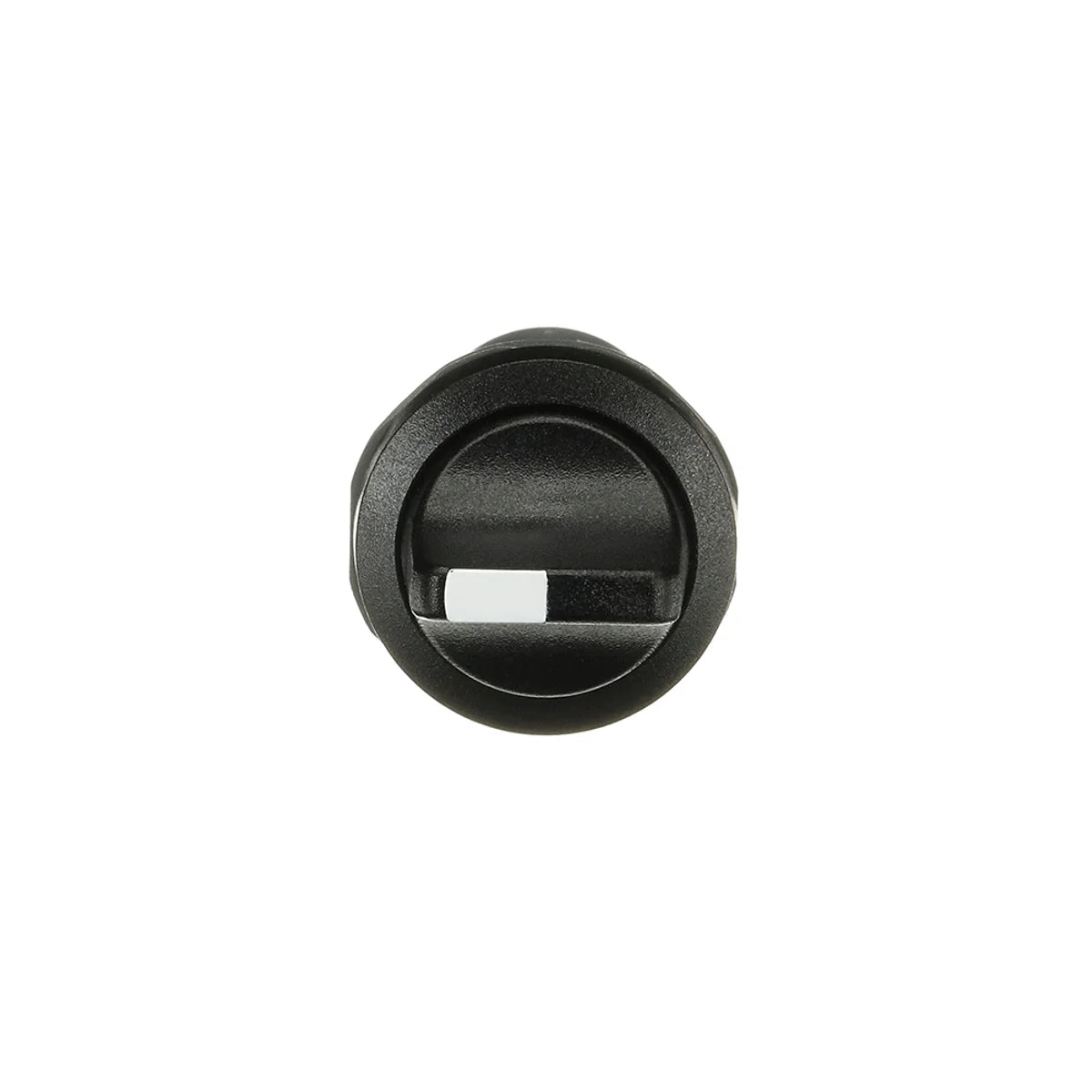

The ABB C3SS1-10B-20 (SKU: 1SFA619210R1026) is a compact 2-position selector switch rated at 300 V, designed for reliable operator control in industrial automation and control panel applications. Part of ABB's Compact series, the C3SS1-10B-20 delivers robust switching performance in a space-efficient 30 × 30 × 72 mm form factor weighing just 24 g, making it ideal for panel builders and machine manufacturers seeking dependable pilot devices.
Certifications & Standards
- CE: Compliant with European Union directives for electrical safety and electromagnetic compatibility
- CSA: Certified to Canadian Standards Association requirements for North American markets
- UKCA: UK Conformity Assessed marking for the Great Britain market post-Brexit
- EAC: Eurasian Conformity mark for use in Eurasian Economic Union member countries
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substance registration and safety
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Machine tool and industrial machinery operator control stations
- Control panel pilot device for switching between operational modes (e.g., Manual / Auto)
- Industrial automation systems requiring a compact, panel-mount selector switch
- OEM equipment where space-saving dimensions and low weight are critical
- Production line and process control environments demanding certified, globally compliant components
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.024 kg |
Technical 22
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 3-position |
| Maintained Positions | A, B, C |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 59 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619210R1026 |
|---|---|
| Type designation | C3SS1-10B-20 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500555330 |
| eCl@ss | 27371243 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001029 - Selector switch, complete |
|---|---|
| ETIM 7 | EC001029 - Selector switch, complete |
| eClass | V11.0 : 27371243 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3711306 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.24 kg |
| Package Level 1 EAN | 7320500246726 |
| Shipping weight | 0.24 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619210R1026
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the C3SS1-10B-20
Which supply voltage is C3SS1-10B-20 rated for?
The rated operational voltage of C3SS1-10B-20 is 300 V AC.
What is the HS code of C3SS1-10B-20 for customs?
The tariff (HS) code on file for C3SS1-10B-20 is 8536508090.
What is the EAN of C3SS1-10B-20?
The EAN (GTIN) of C3SS1-10B-20 is 7320500555330.
Where does C3SS1-10B-20 ship from, and how fast?
C3SS1-10B-20 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
