Part number
1SFA619200R1076
Model no
C2SS1-10B-11
$14.70 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Compact

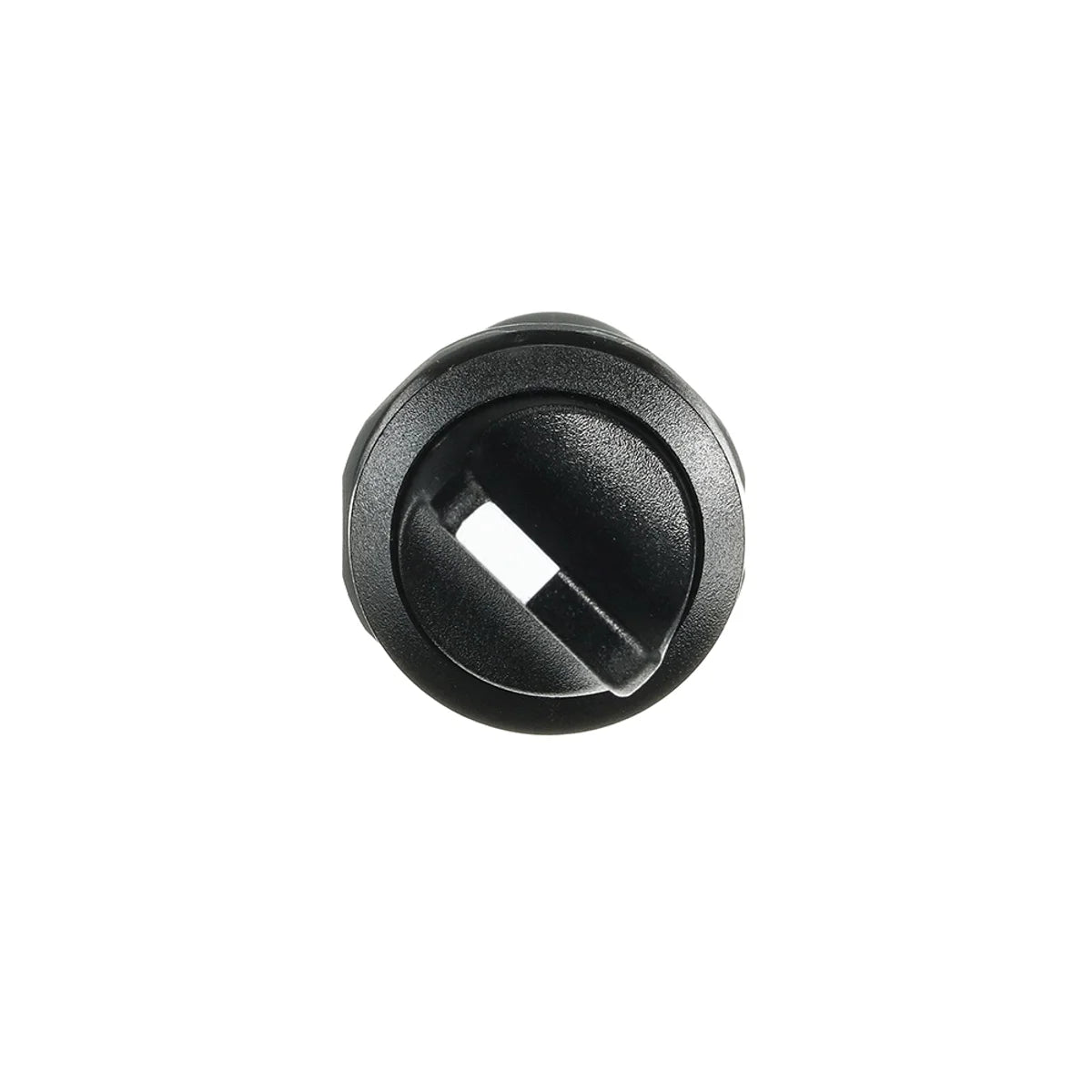

ABB 1SFA619200R1076 C2SS1-10B-11 Compact 1NO+1NC 24-300V Selector Switch

Rated operational voltage
24–300 V AC
EAN
7320500554760
Description

About the C2SS1-10B-11

The ABB C2SS1-10B-11 selector switch (SKU: 1SFA619200R1076) is a compact pilot device from ABB's Compact series, designed for reliable switching and control in industrial automation and control panel applications. Rated for 24–300 V, the C2SS1-10B-11 features a 1NO+1NC contact configuration and compact 30 × 30 × 72 mm dimensions, making it suitable for space-constrained enclosures and demanding industrial environments.

Certifications & Standards

  • CE: Meets European Union safety, health, and environmental protection requirements
  • UKCA: UK Conformity Assessed — compliant for sale in Great Britain
  • CCC: China Compulsory Certification — approved for the Chinese market
  • CSA: Canadian Standards Association certified for North American applications
  • EAC: Eurasian Conformity mark — approved for the Eurasian Economic Union
  • REACH: Compliant with EU REACH regulation on chemical substances
  • RoHS: Restriction of Hazardous Substances directive compliant
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive

Applications & Use Cases

  • Control panel operator interfaces for mode selection and machine control
  • Industrial automation systems requiring manual switching functions
  • Machine tools, conveyor systems, and process equipment control circuits
  • Enclosed switches and pendant control stations
  • Building automation and facility management switchboards
Specification

Full specification

60 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 72 mm
Product Net Weight 0.024 kg

Technical 23

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Black
Bezel Material Plastic
Illumination Non-illuminated
Function Maintained
Sub-Function 2-position
Maintained Positions B, C
Number of Auxiliary Contacts NC 1
Number of Auxiliary Contacts NO 1
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage 24 ... 300 V, Maximum 300 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 5 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619200R1076
Type designation C2SS1-10B-11
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500554760
eCl@ss 27371243
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001029 - Selector switch, complete
ETIM 7 EC001029 - Selector switch, complete
eClass V11.0 : 27371243
UNSPSC 39122217
E-Number (Sweden) 3711300

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 235 mm
Package Level 1 Depth / Length 125 mm
Package Level 1 Height 35 mm
Package Level 1 Gross Weight 0.24 kg
Package Level 1 EAN 7320500245491
Shipping weight 0.24 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619200R1076

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the C2SS1-10B-11

Which supply voltage is C2SS1-10B-11 rated for?

The rated operational voltage of C2SS1-10B-11 is 24–300 V AC.

What is the HS code of C2SS1-10B-11 for customs?

The tariff (HS) code on file for C2SS1-10B-11 is 8536508090.

What is the EAN of C2SS1-10B-11?

The EAN (GTIN) of C2SS1-10B-11 is 7320500554760.

Where does C2SS1-10B-11 ship from, and how fast?

C2SS1-10B-11 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
