Part number
1SFA619103R1312
Model no
CP4-13G-10
$9.46 On request Dispatch — · From TürkiyeGet a Quote
CP4

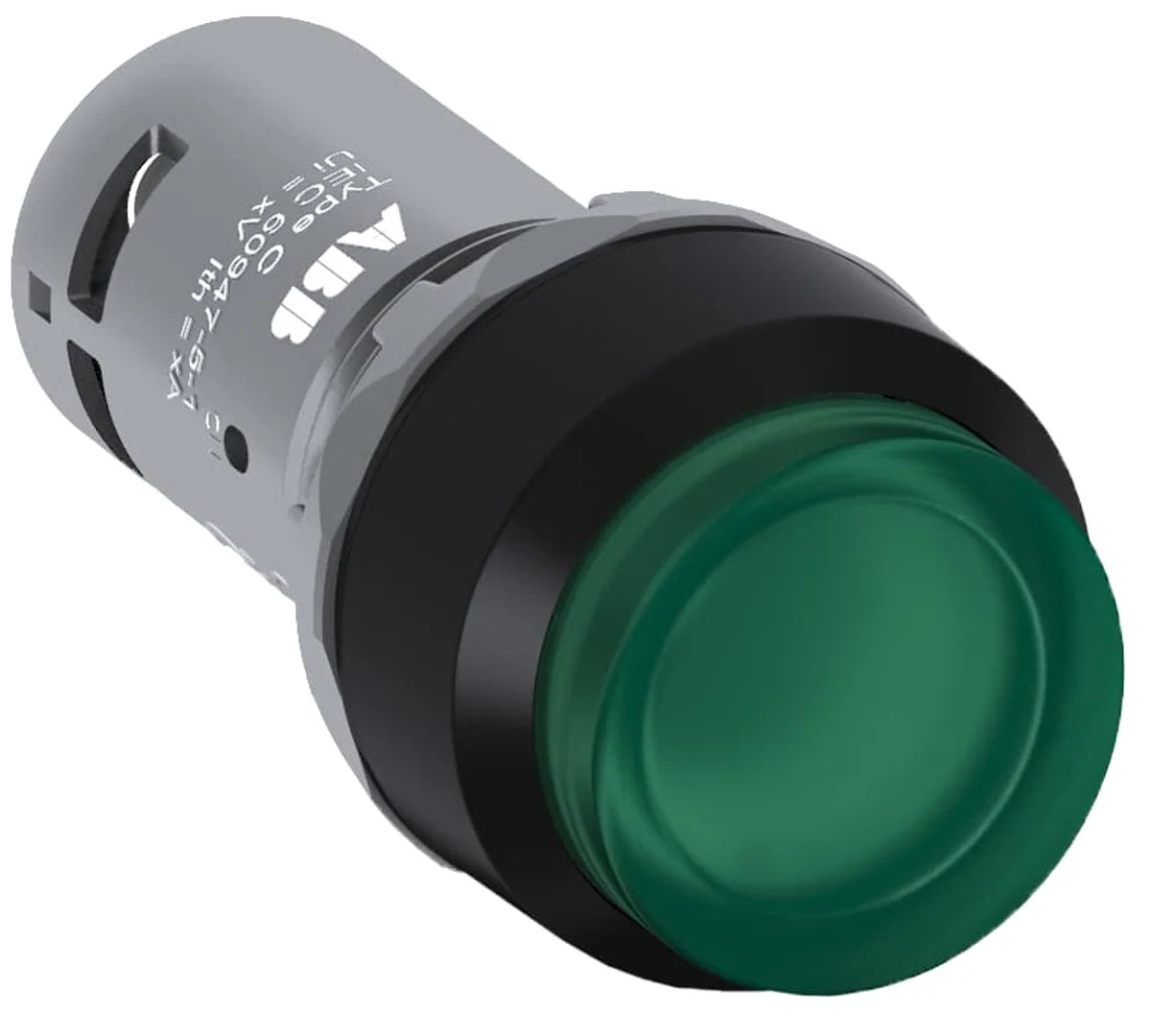

ABB 1SFA619103R1312 CP4-13G-10 230V AC/DC Pushbutton

Rated operational voltage
230–DC V DC
EAN
7320500553695
Description

About the CP4-13G-10

The ABB CP4-13G-10 pushbutton (SKU 1SFA619103R1312) is an industrial-grade pilot device rated at 230V AC/DC, designed for control panel and automation applications requiring reliable operator interface. Part of ABB's CP4 series, this compact pushbutton measures 30 x 30 x 55 mm and weighs just 25 g, making it well suited for space-constrained enclosures and pendant control stations.

Certifications & Standards

  • CE: Compliant with European Union directives for safety and electromagnetic compatibility
  • UKCA: UK Conformity Assessed marking for Great Britain market placement
  • CSA: Certified to Canadian Standards Association requirements for North American markets
  • CCC: China Compulsory Certification for the Chinese market
  • EAC: Eurasian Conformity marking for the Eurasian Economic Union
  • RoHS: Compliant with Restriction of Hazardous Substances Directive (EU 2011/65/EU)
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible disposal

Applications & Use Cases

  • Industrial control panels and operator stations
  • Machine tool and automation system interfaces
  • Pendant control and remote operator interface units
  • Process control and manufacturing line start/stop circuits
  • Building automation and HVAC control switchboards
Specification

Full specification

60 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 55 mm
Product Net Weight 0.025 kg

Technical 23

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Green
Bezel Material Plastic
Illumination Illuminated
Lamp Type LED 220V AC/DC
Function Maintained
Number of Auxiliary Contacts NC 0
Number of Auxiliary Contacts NO 1
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz, Supply Circuit 50 / 60 Hz
Rated Operational Voltage 230 V AC/DC, Maximum 300 V, Supply Circuit 230 V AC/DC
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (120 V) 1.5 A, (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 3.7 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619103R1312
Type designation CP4-13G-10
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500553695
eCl@ss 27371228
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001028 - Push button, complete
ETIM 7 EC001028 - Push button, complete
eClass V11.0 : 27371228
UNSPSC 39122216
E-Number (Sweden) 3717290

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 125 mm
Package Level 1 Depth / Length 235 mm
Package Level 1 Height 50 mm
Package Level 1 Gross Weight 0.254 kg
Package Level 1 EAN 7320500381809
Shipping weight 0.254 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619103R1312

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the CP4-13G-10

Which supply voltage is CP4-13G-10 rated for?

The rated operational voltage of CP4-13G-10 is 230–DC V DC.

What is the HS code of CP4-13G-10 for customs?

The tariff (HS) code on file for CP4-13G-10 is 8536508090.

What is the EAN of CP4-13G-10?

The EAN (GTIN) of CP4-13G-10 is 7320500553695.

Where does CP4-13G-10 ship from, and how fast?

CP4-13G-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
