Part number
1SFA619103R1141
Model no
CP4-11R-01
$9.46 In stock · 37 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CP4

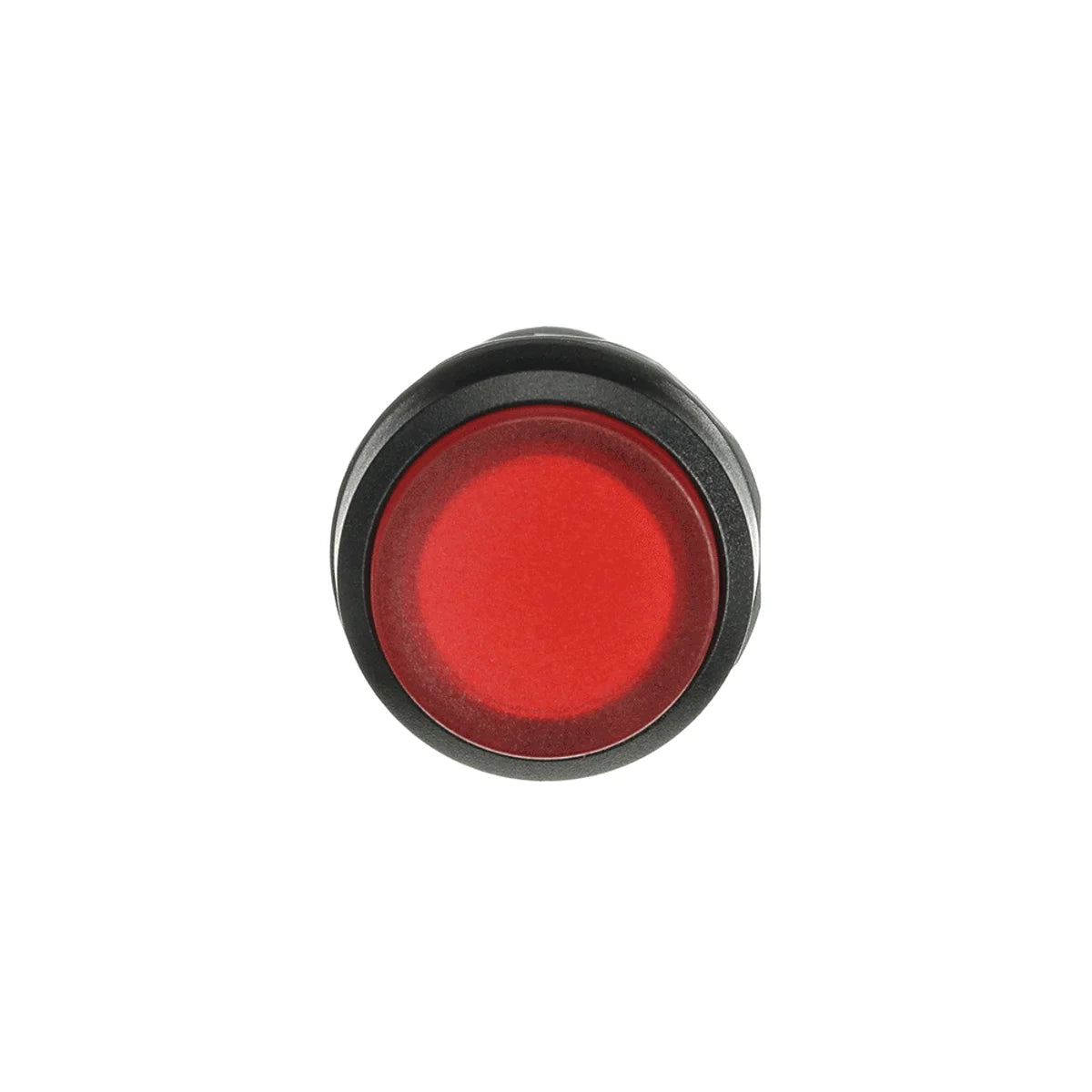

ABB 1SFA619103R1141 CP4-11R-01 Pushbutton 300V Industrial Control Panel Pilot Device

Rated operational voltage
300 V AC
EAN
7320500553619
Description

About the CP4-11R-01

The ABB CP4-11R-01 Pushbutton (SKU: 1SFA619103R1141) is a compact, industrial-grade pilot device rated at 300 V, designed for reliable operator control in demanding automation and control panel environments. Part of ABB's CP4 series, this pushbutton delivers consistent switching performance with a lightweight 25 g form factor and a compact footprint of 30 × 30 × 55 mm, making it well-suited for dense panel layouts.

Certifications & Standards

  • CE: Complies with European Union directives for safety, health, and environmental protection.
  • CSA: Certified by the Canadian Standards Association for use in North American markets.
  • CCC: China Compulsory Certification, required for sale and use in the Chinese market.
  • UKCA: UK Conformity Assessed marking for products placed on the Great Britain market post-Brexit.
  • EAC: Eurasian Conformity mark for use in the Eurasian Economic Union member states.

Applications & Use Cases

The ABB CP4-11R-01 is engineered for integration into industrial control panels, machine operator stations, and automation systems across manufacturing, process control, and building automation sectors. Its compact dimensions make it ideal for space-constrained enclosures, while its multi-market certifications (CE, CSA, CCC, UKCA, EAC) support global deployment without re-certification. Engineers and procurement professionals specify the CP4-11R-01 for start/stop stations, motor control centers, conveyor systems, and general-purpose operator interfaces requiring dependable tactile feedback and a proven switching mechanism.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 55 mm
Product Net Weight 0.025 kg

Technical 23

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Red
Bezel Material Plastic
Illumination Illuminated
Lamp Type LED 24V AC/DC
Function Maintained
Number of Auxiliary Contacts NC 1
Number of Auxiliary Contacts NO 0
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz, Supply Circuit 50 / 60 Hz
Rated Operational Voltage 24 V AC/DC, Maximum 300 V, Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 2.7 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619103R1141
Type designation CP4-11R-01
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500553619
eCl@ss 27371228
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001028 - Push button, complete
ETIM 7 EC001028 - Push button, complete
eClass V11.0 : 27371228
UNSPSC 39122216
E-Number (Sweden) 3717260

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 125 mm
Package Level 1 Depth / Length 235 mm
Package Level 1 Height 50 mm
Package Level 1 Gross Weight 0.254 kg
Package Level 1 EAN 7320500381502
Shipping weight 0.254 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619103R1141

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the CP4-11R-01

Which supply voltage is CP4-11R-01 rated for?

The rated operational voltage of CP4-11R-01 is 300 V AC.

What is the HS code of CP4-11R-01 for customs?

The tariff (HS) code on file for CP4-11R-01 is 8536508090.

What is the EAN of CP4-11R-01?

The EAN (GTIN) of CP4-11R-01 is 7320500553619.

Where does CP4-11R-01 ship from, and how fast?

CP4-11R-01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
