- Part number
- 1SFA619102R1313
- Model no
- CP3-13Y-10
Description
About the CP3-13Y-10
About the CP3-13Y-10

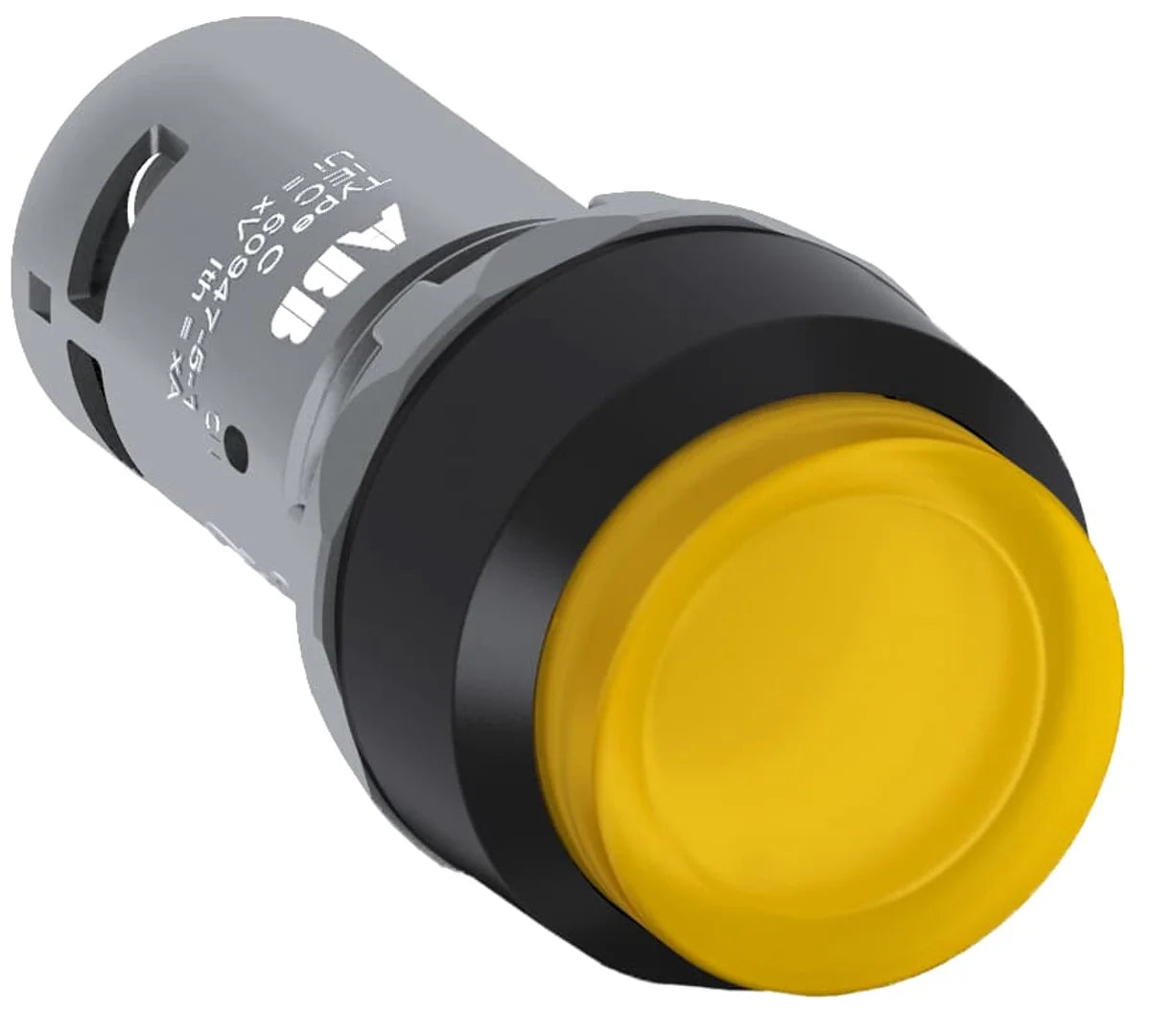

The ABB CP3-13Y-10 pushbutton (SKU 1SFA619102R1313) is a compact, industrial-grade pilot device rated at 230 V AC/DC, designed for reliable operator control in automation and control panel applications. Part of ABB's CP3 series, it delivers consistent switching performance in demanding industrial environments and is certified to major international standards including CE, RoHS, CCC, and UKCA.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant with Great Britain market regulations post-Brexit
- CCC: China Compulsory Certification — approved for the Chinese market
- CSA: Canadian Standards Association — certified for North American safety requirements
- EAC: Eurasian Conformity — approved for the Eurasian Economic Union markets
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — compliant with EU chemical safety regulation
- WEEE: Waste Electrical and Electronic Equipment Directive — designed for responsible end-of-life disposal and recycling
Applications & Use Cases
- Control panel operator interfaces in industrial machinery
- Machine start/stop functions in automation systems
- Signalling and command circuits in electrical switchgear
- Process control stations in manufacturing environments
- Building automation and HVAC control panels
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.025 kg |
Technical 23
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Yellow |
| Bezel Material | Plastic |
| Illumination | Illuminated |
| Lamp Type | LED 220V AC/DC |
| Function | Momentary |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz, Supply Circuit 50 / 60 Hz |
| Rated Operational Voltage | 230 V AC/DC, Maximum 300 V, Supply Circuit 230 V AC/DC |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A, (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 3.7 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619102R1313 |
|---|---|
| Type designation | CP3-13Y-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500552926 |
| eCl@ss | 27371228 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001028 - Push button, complete |
|---|---|
| ETIM 7 | EC001028 - Push button, complete |
| eClass | V11.0 : 27371228 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3717283 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.254 kg |
| Package Level 1 EAN | 7320500381779 |
| Shipping weight | 0.254 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619102R1313
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CP3-13Y-10
Which supply voltage is CP3-13Y-10 rated for?
The rated operational voltage of CP3-13Y-10 is 230–DC V DC.
What is the HS code of CP3-13Y-10 for customs?
The tariff (HS) code on file for CP3-13Y-10 is 8536508090.
What is the EAN of CP3-13Y-10?
The EAN (GTIN) of CP3-13Y-10 is 7320500552926.
Where does CP3-13Y-10 ship from, and how fast?
CP3-13Y-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
