Part number
1SFA619102R1141
Model no
CP3-11R-01
$9.46 In stock · 28 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CP Compact

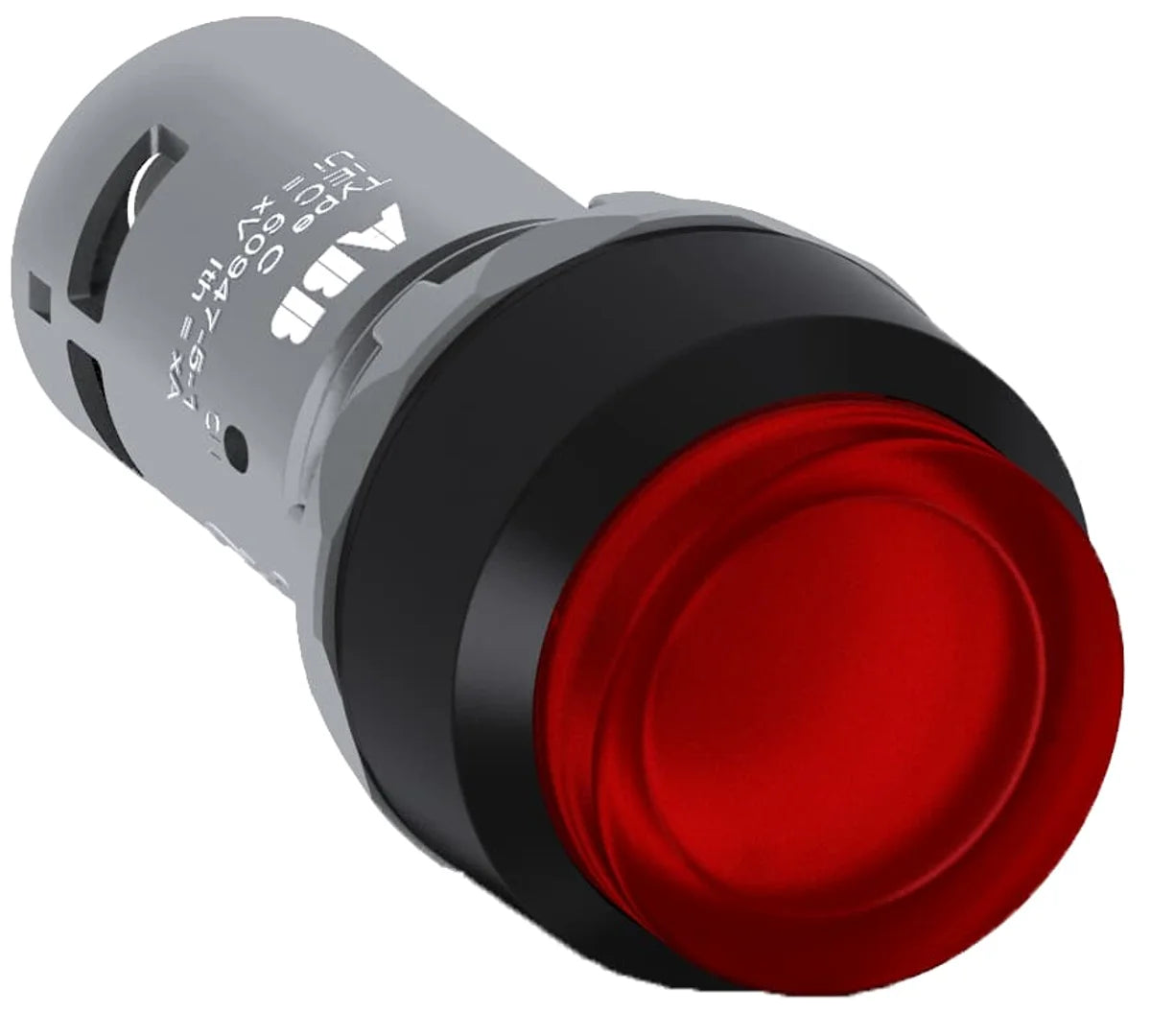

ABB 1SFA619102R1141 CP3-11R-01 Pushbutton 300V 30mm CP Compact Series

Rated operational voltage
Ma×imum 300 V AC
EAN
7320500552834
Description

About the CP3-11R-01

The ABB CP3-11R-01 (SKU: 1SFA619102R1141) is a compact industrial pushbutton from the CP Compact Series, rated for operation up to 300V maximum and designed for reliable control panel and automation applications. The CP3-11R-01 features a 30mm form factor and lightweight 0.025 kg construction, making it an ideal pilot device for machine control, industrial automation, and operator interface installations.

Certifications & Standards

  • CE: Compliant with European Union product safety and electromagnetic compatibility directives
  • CCC: China Compulsory Certification for market access in the People's Republic of China
  • CSA: Canadian Standards Association certification for North American safety requirements
  • UKCA: UK Conformity Assessed marking for products placed on the Great Britain market post-Brexit
  • EAC: Eurasian Conformity mark for the Eurasian Economic Union member states

Applications & Use Cases

  • Control panel operator interfaces in manufacturing and process automation
  • Machine tool start/stop and command stations
  • Industrial automation and PLC input signal devices
  • Pendant control and local operator stations
  • Building automation and HVAC control panels
Specification

Full specification

60 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 60 mm
Product Net Weight 0.025 kg

Technical 23

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Red
Bezel Material Plastic
Illumination Illuminated
Lamp Type LED 24V AC/DC
Function Momentary
Number of Auxiliary Contacts NC 1
Number of Auxiliary Contacts NO 0
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz, Supply Circuit 50 / 60 Hz
Rated Operational Voltage 24 V AC/DC, Maximum 300 V, Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 2.7 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619102R1141
Type designation CP3-11R-01
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500552834
eCl@ss 27371228
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001028 - Push button, complete
ETIM 7 EC001028 - Push button, complete
eClass V11.0 : 27371228
UNSPSC 39122216
E-Number (Sweden) 3717252

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 125 mm
Package Level 1 Depth / Length 235 mm
Package Level 1 Height 50 mm
Package Level 1 Gross Weight 0.254 kg
Package Level 1 EAN 7320500381465
Shipping weight 0.254 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619102R1141

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the CP3-11R-01

Which supply voltage is CP3-11R-01 rated for?

The rated operational voltage of CP3-11R-01 is Ma×imum 300 V AC.

What is the HS code of CP3-11R-01 for customs?

The tariff (HS) code on file for CP3-11R-01 is 8536508090.

What is the EAN of CP3-11R-01?

The EAN (GTIN) of CP3-11R-01 is 7320500552834.

Where does CP3-11R-01 ship from, and how fast?

CP3-11R-01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
