- Part number
- 1SFA619101R1111
- Model no
- CP2-11R-10
Description
About the CP2-11R-10
About the CP2-11R-10

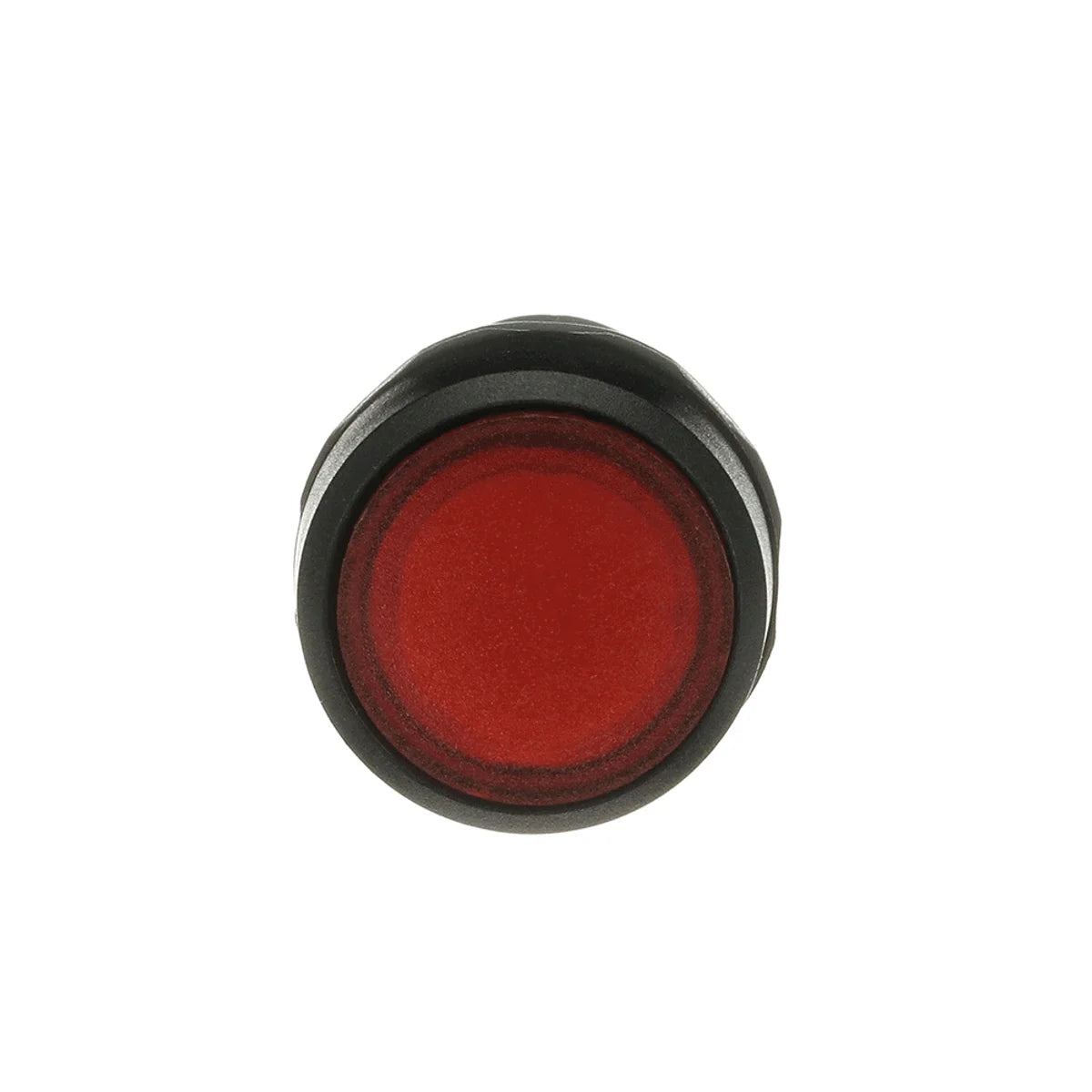

The ABB CP2-11R-10 pushbutton (SKU: 1SFA619101R1111) is a 30mm flush-mount pilot device from the ABB CP2 Series, engineered for reliable operator control in industrial automation and control panel applications. The CP2-11R-10 features compact dimensions of 30 x 30 x 55 mm and a lightweight 25 g construction, making it ideal for dense panel layouts. Certified to CE, CCC, CSA, RoHS, REACH, WEEE, EAC, and UKCA standards, this pushbutton meets global compliance requirements for industrial installations.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental protection requirements
- CCC: China Compulsory Certification — required for sale in the Chinese market
- CSA: Canadian Standards Association — certified for use in North American markets
- REACH: EU Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals — compliant with hazardous substance restrictions
- RoHS: Restriction of Hazardous Substances Directive — free from restricted hazardous materials including lead and mercury
- WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU e-waste management regulations
- UKCA: UK Conformity Assessed — meets Great Britain market regulatory requirements post-Brexit
- EAC: Eurasian Conformity — certified for the Eurasian Economic Union markets
Applications & Use Cases
- Industrial machine control panels and operator workstations
- Process automation start/stop operator interfaces
- Motor control centers and switchgear panels
- Manufacturing and assembly line control stations
- Building automation and HVAC control panels
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.025 kg |
Technical 23
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Bezel Material | Plastic |
| Illumination | Illuminated |
| Lamp Type | LED 24V AC/DC |
| Function | Maintained |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz, Supply Circuit 50 / 60 Hz |
| Rated Operational Voltage | 24 V AC/DC, Maximum 300 V, Supply Circuit 24 V AC/DC |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 2.7 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619101R1111 |
|---|---|
| Type designation | CP2-11R-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500551943 |
| eCl@ss | 27371228 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001028 - Push button, complete |
|---|---|
| ETIM 7 | EC001028 - Push button, complete |
| eClass | V11.0 : 27371228 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3717253 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.254 kg |
| Package Level 1 EAN | 7320500376348 |
| Shipping weight | 0.254 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619101R1111
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CP2-11R-10
What is the HS code of CP2-11R-10 for customs?
The tariff (HS) code on file for CP2-11R-10 is 8536508090.
What is the EAN of CP2-11R-10?
The EAN (GTIN) of CP2-11R-10 is 7320500551943.
Where does CP2-11R-10 ship from, and how fast?
CP2-11R-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
