- Part number
- 1SFA619100R1312
- Model no
- CP1-13G-10
Description
About the CP1-13G-10
About the CP1-13G-10

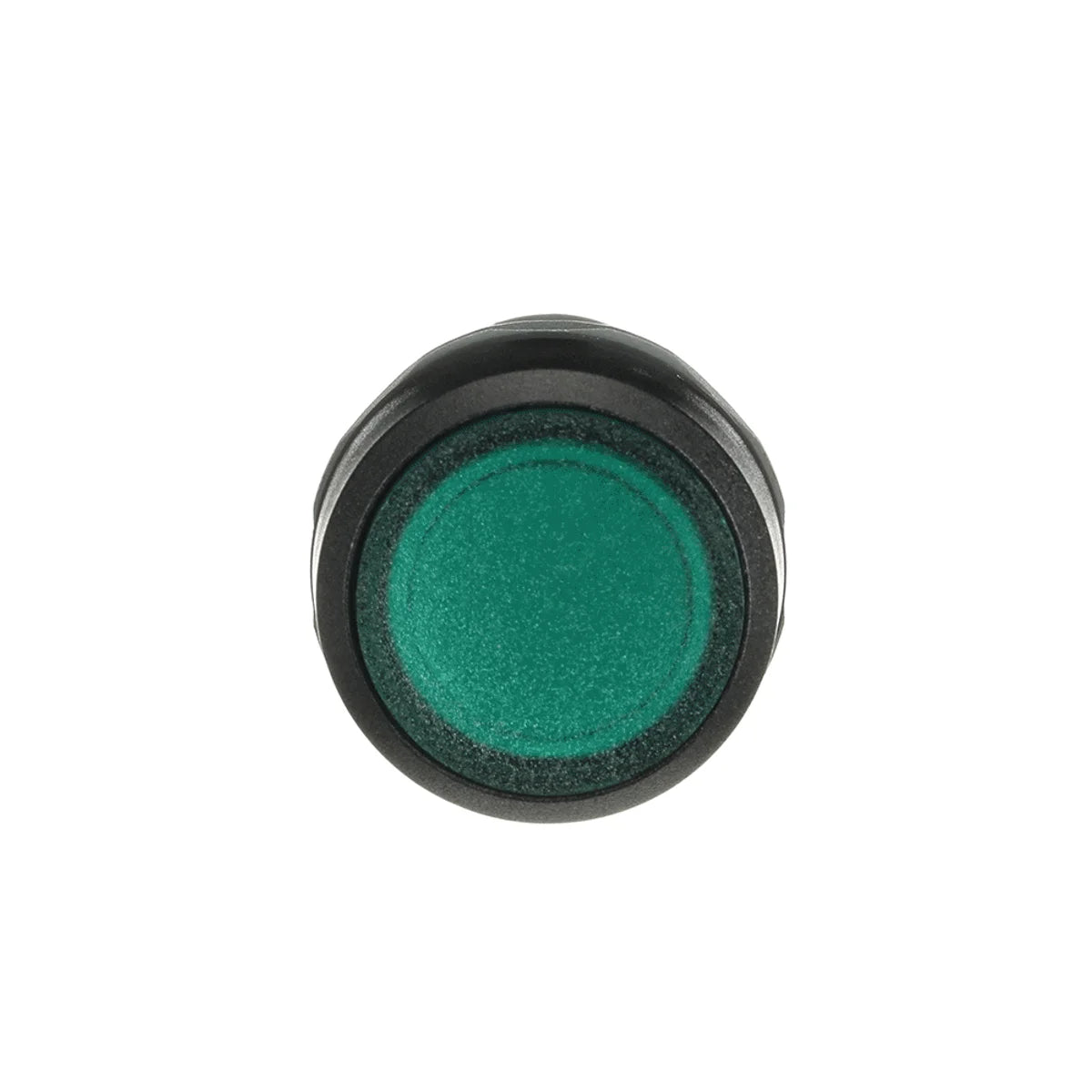

The ABB CP1-13G-10 pushbutton (SKU: 1SFA619100R1312) is a flush-mount industrial pushbutton rated at 230 V, designed for reliable operator control in industrial automation and control panel applications. Part of ABB's CP1 series, this compact pilot device measures 30 mm × 30 mm × 55 mm and weighs just 25 g, making it a space-efficient solution for demanding environments. The CP1-13G-10 carries multiple international certifications, ensuring compliance with global installation standards.
Certifications & Standards
- CE: Conforms to European Union directives for safety and electromagnetic compatibility
- CSA: Certified by the Canadian Standards Association for use in North American markets
- CCC: China Compulsory Certification, required for products sold in the Chinese market
- UKCA: UK Conformity Assessed marking for Great Britain market compliance post-Brexit
- EAC: Eurasian Conformity mark for use in Russia and Eurasian Economic Union member states
Applications & Use Cases
- Operator control stations and control panels in industrial automation
- Machine tool control and start/stop functions on industrial equipment
- Process control systems requiring reliable momentary switching
- Building automation and HVAC control panels
- General-purpose pilot device installations requiring flush-mount aesthetics
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.025 kg |
Technical 23
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Green |
| Bezel Material | Plastic |
| Illumination | Illuminated |
| Lamp Type | LED 220V AC/DC |
| Function | Momentary |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz, Supply Circuit 50 / 60 Hz |
| Rated Operational Voltage | 230 V AC/DC, Supply Circuit 230 V AC/DC |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A, (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 3.7 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619100R1312 |
|---|---|
| Type designation | CP1-13G-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500550847 |
| eCl@ss | 27371228 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001028 - Push button, complete |
|---|---|
| ETIM 7 | EC001028 - Push button, complete |
| eClass | V11.0 : 27371228 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3717278 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.254 kg |
| Package Level 1 EAN | 7320500381687 |
| Shipping weight | 0.254 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619100R1312
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- UKCA
- CCC
- EAC
Quick answers
Questions about the CP1-13G-10
Which supply voltage is CP1-13G-10 rated for?
The rated operational voltage of CP1-13G-10 is 230 V AC.
What is the HS code of CP1-13G-10 for customs?
The tariff (HS) code on file for CP1-13G-10 is 85369001.
What is the EAN of CP1-13G-10?
The EAN (GTIN) of CP1-13G-10 is 7320500550847.
Where does CP1-13G-10 ship from, and how fast?
CP1-13G-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
ABB CP1
