- Part number
- 1SFA619100R1112
- Model no
- CP1-11G-10
Description
About the CP1-11G-10
About the CP1-11G-10

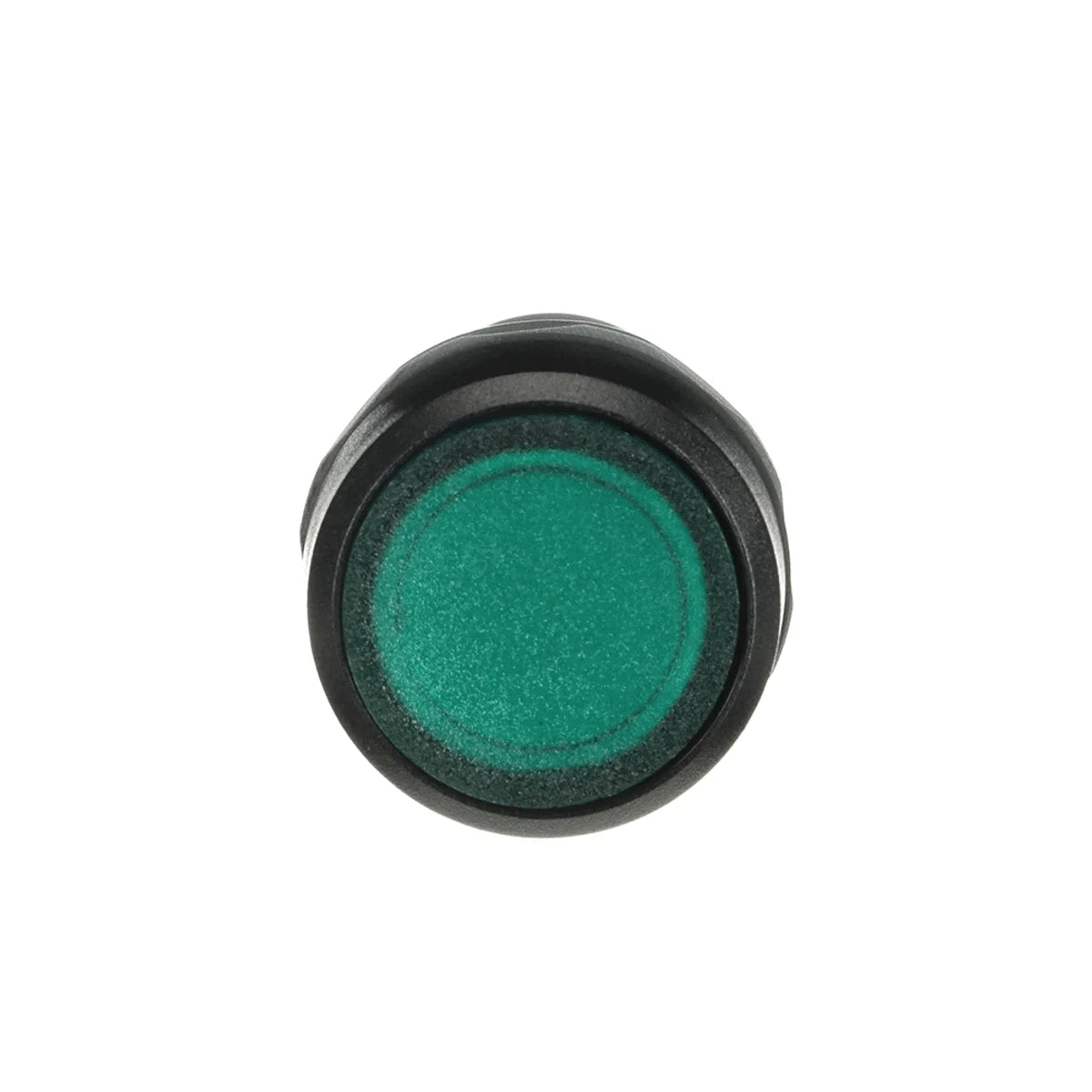

The ABB CP1-11G-10 pushbutton (SKU: 1SFA619100R1112) is a flush-mount 30mm industrial pushbutton designed for control panel and machine automation applications. Part of the ABB CP1 Series, this compact pilot device measures 30 × 30 × 55 mm and weighs just 25 g, making it ideal for space-constrained panel layouts. The CP1-11G-10 delivers reliable operator control in demanding industrial environments.
Certifications & Standards
- CE: Compliant with European Union safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed marking for Great Britain market access
- CCC: China Compulsory Certification for the Chinese market
- CSA: Canadian Standards Association certification for North American safety compliance
- EAC: Eurasian Conformity marking for the Eurasian Economic Union market
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
Applications & Use Cases
- Machine control panels and operator interface stations
- Industrial automation start/stop circuits
- Process control and manufacturing line control desks
- Motor control centers and switchgear panels
- Building automation and HVAC control systems
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.025 kg |
Technical 23
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Green |
| Bezel Material | Plastic |
| Illumination | Illuminated |
| Lamp Type | LED 24V AC/DC |
| Function | Momentary |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz, Supply Circuit 50 / 60 Hz |
| Rated Operational Voltage | 24 V AC/DC, Supply Circuit 24 V AC/DC |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 2.7 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619100R1112 |
|---|---|
| Type designation | CP1-11G-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500550717 |
| eCl@ss | 27371228 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001028 - Push button, complete |
|---|---|
| ETIM 7 | EC001028 - Push button, complete |
| eClass | V11.0 : 27371228 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3717246 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.254 kg |
| Package Level 1 EAN | 7320500376317 |
| Shipping weight | 0.254 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619100R1112
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CP1-11G-10
What is the HS code of CP1-11G-10 for customs?
The tariff (HS) code on file for CP1-11G-10 is 85369001.
What is the EAN of CP1-11G-10?
The EAN (GTIN) of CP1-11G-10 is 7320500550717.
Where does CP1-11G-10 ship from, and how fast?
CP1-11G-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
