Part number
1SFA619100R1016
Model no
CP1-10B-10
$8.66 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CP1

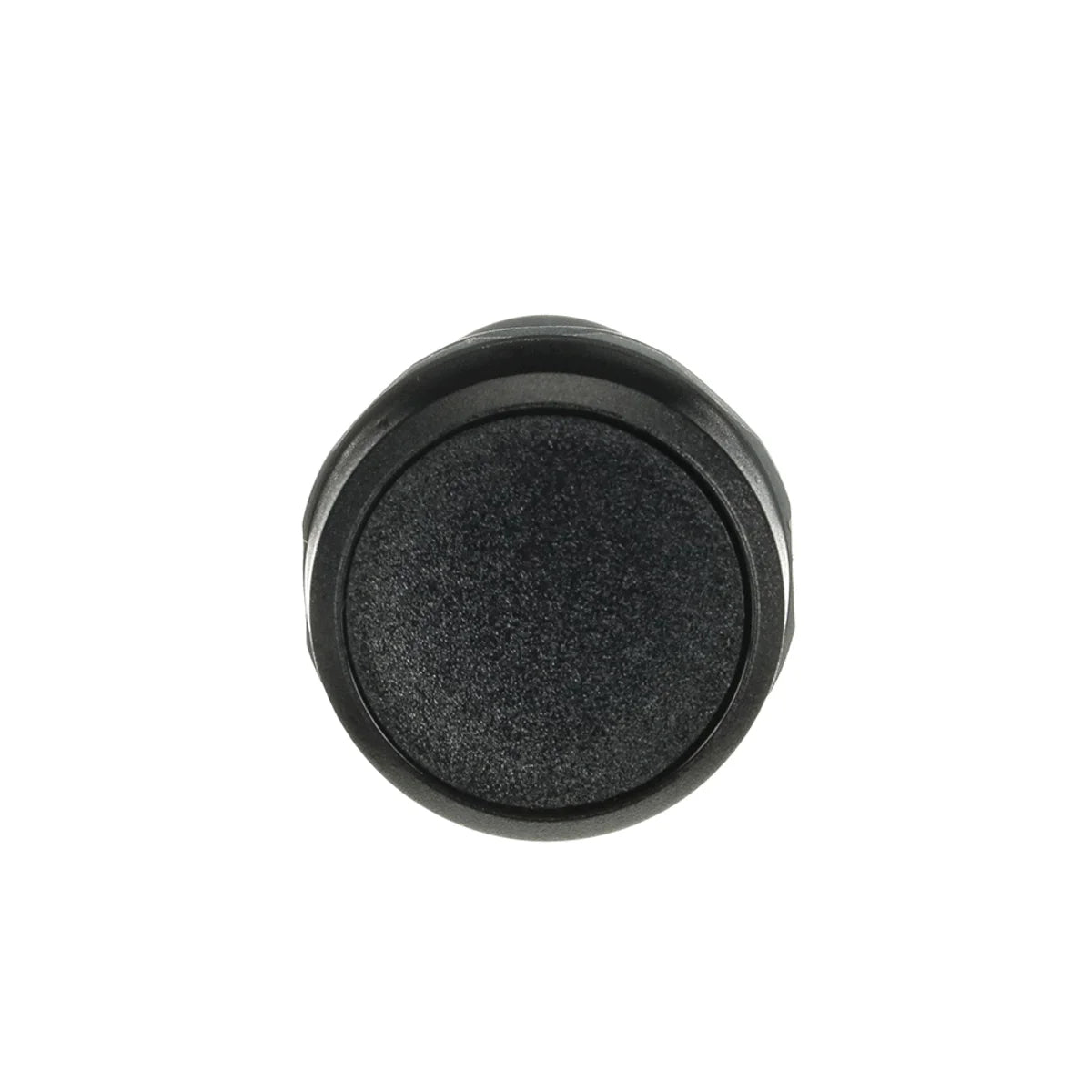

ABB 1SFA619100R1016 CP1-10B-10 Flush Mount 300V Pushbutton

Rated operational voltage
300 V AC
EAN
7320500550410
Description

About the CP1-10B-10

The ABB CP1-10B-10 pushbutton (SKU: 1SFA619100R1016) is a flush-mount industrial pushbutton rated at 300 V, designed for reliable operator control in demanding industrial automation and control panel applications. Part of ABB's CP1 series, this compact pushbutton measures 30 mm × 30 mm × 55 mm and weighs just 18 g, making it an efficient and space-saving solution for machine builders and panel integrators.

Certifications & Standards

  • CE: Compliant with European Union safety, health, and environmental protection requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
  • CCC: China Compulsory Certification — approved for the Chinese market
  • CSA: Canadian Standards Association certified for North American markets
  • EAC: Eurasian Conformity mark for Russia, Belarus, Kazakhstan, and CIS countries
  • RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
  • REACH: Compliant with EU regulation on chemicals and their safe use
  • WEEE: Compliant with Waste Electrical and Electronic Equipment directive for proper disposal

Applications & Use Cases

  • Machine control panels and operator interfaces in manufacturing environments
  • Industrial automation systems requiring reliable momentary contact switching
  • Control desks and pendant stations in material handling equipment
  • Process control and plant automation installations
  • General-purpose electrical control circuits up to 300 V
Specification

Full specification

59 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 55 mm
Product Net Weight 0.018 kg

Technical 22

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Black
Bezel Material Plastic
Illumination Non-illuminated
Function Momentary
Number of Auxiliary Contacts NC 0
Number of Auxiliary Contacts NO 1
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage Maximum 300 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 2.5 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 59 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619100R1016
Type designation CP1-10B-10
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500550410
eCl@ss 27371228
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001028 - Push button, complete
ETIM 7 EC001028 - Push button, complete
eClass V11.0 : 27371228
UNSPSC 39122216
E-Number (Sweden) 3705389

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 125 mm
Package Level 1 Depth / Length 235 mm
Package Level 1 Height 50 mm
Package Level 1 Gross Weight 0.184 kg
Package Level 1 EAN 7320500240762
Shipping weight 0.184 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619100R1016

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the CP1-10B-10

Which supply voltage is CP1-10B-10 rated for?

The rated operational voltage of CP1-10B-10 is 300 V AC.

What is the HS code of CP1-10B-10 for customs?

The tariff (HS) code on file for CP1-10B-10 is 8536508090.

What is the EAN of CP1-10B-10?

The EAN (GTIN) of CP1-10B-10 is 7320500550410.

Where does CP1-10B-10 ship from, and how fast?

CP1-10B-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
