Part number
1SFA619100R1012
Model no
CP1-10G-10
$8.66 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CP1 Compact

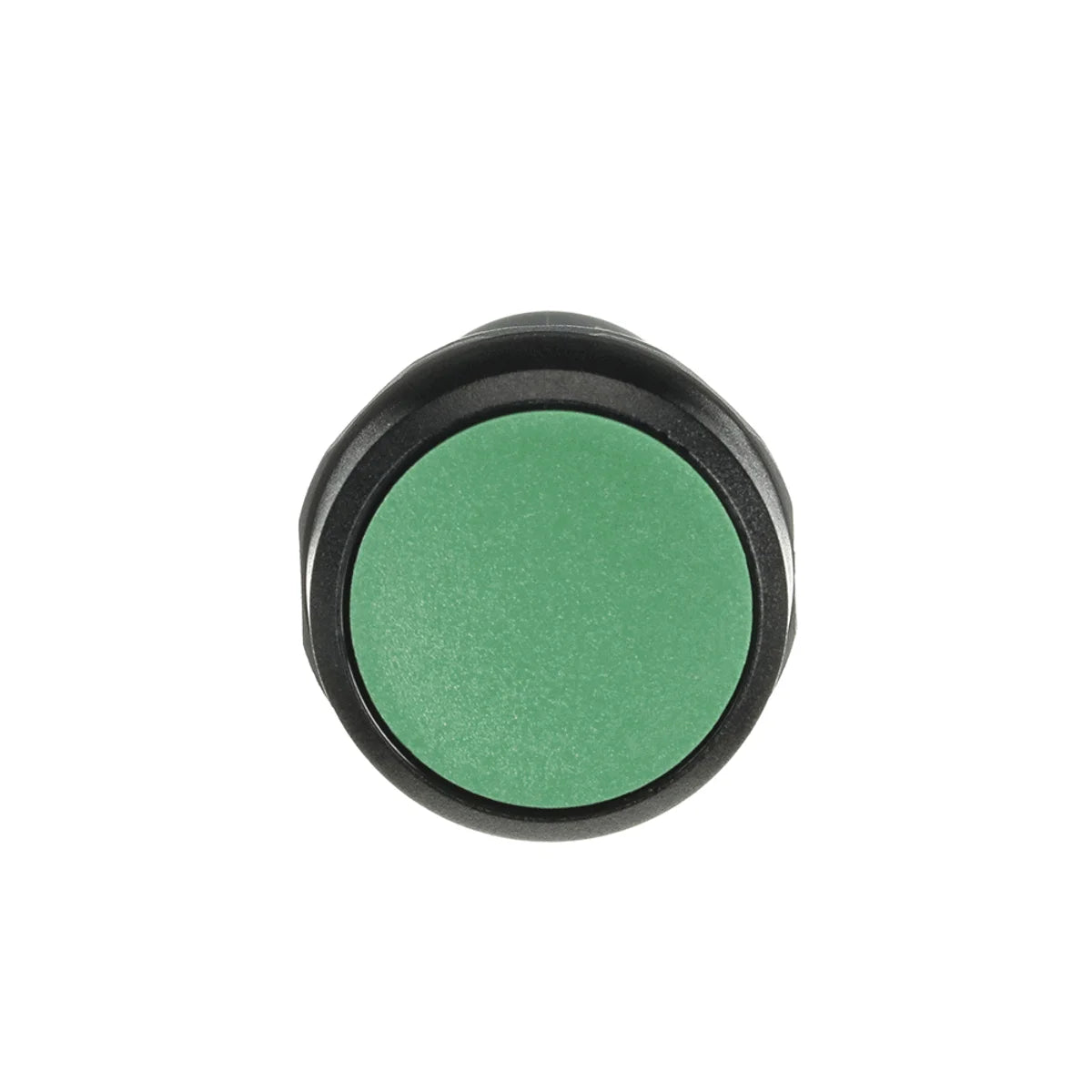

ABB 1SFA619100R1012 CP1-10G-10 Flush Mount 300V Compact Pushbutton

Rated operational voltage
300 V AC
EAN
7320500550373
Description

About the CP1-10G-10

The ABB CP1-10G-10 pushbutton (SKU: 1SFA619100R1012) is a flush-mount compact pilot device rated at 300 V, designed for reliable operator control in industrial automation and control panel applications. Part of the ABB CP1 Compact series, the CP1-10G-10 delivers robust switching performance in a compact 30 × 30 × 55 mm form factor, weighing just 18 g — ideal for space-constrained enclosures and machine control panels.

Certifications & Standards

  • CE: Conforms to European Union directives for electrical equipment safety and electromagnetic compatibility
  • UKCA: UK Conformity Assessed — meets Great Britain market regulatory requirements post-Brexit
  • CCC: China Compulsory Certification for entry into the Chinese market
  • EAC: Eurasian Conformity mark for Russia, Kazakhstan, Belarus, and associated markets
  • CSA: Canadian Standards Association certification for North American safety compliance
  • NEMA Type 1: General-purpose indoor enclosure protection
  • NEMA Type 3R: Rainproof, sleet-resistant outdoor enclosure rating
  • NEMA Type 4: Watertight and dust-tight indoor/outdoor protection
  • NEMA Type 4X: Watertight, dust-tight, and corrosion-resistant protection
  • NEMA Type 12: Industrial indoor protection against dust, falling dirt, and dripping non-corrosive liquids
  • NEMA Type 13: Industrial indoor protection against dust, spraying water, oil, and non-corrosive coolants
  • REACH: Compliant with EU REACH regulation on chemicals — safe for use in regulated environments
  • RoHS: Restriction of Hazardous Substances — free from lead, mercury, cadmium, and other restricted materials
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

  • Machine control panels and operator stations requiring compact pilot devices
  • Industrial automation systems where flush-mount pushbuttons save panel space
  • Control desks in manufacturing, process, and assembly line environments
  • Applications requiring multi-market compliance (CE, CSA, CCC, EAC) for global equipment deployment
  • Environments demanding NEMA 4X corrosion resistance — food & beverage, chemical processing, washdown areas
Specification

Full specification

59 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 55 mm
Product Net Weight 0.018 kg

Technical 22

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Green
Bezel Material Plastic
Illumination Non-illuminated
Function Momentary
Number of Auxiliary Contacts NC 0
Number of Auxiliary Contacts NO 1
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage Maximum 300 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 2.5 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 59 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619100R1012
Type designation CP1-10G-10
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500550373
eCl@ss 27371228
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC001028 - Push button, complete
ETIM 7 EC001028 - Push button, complete
eClass V11.0 : 27371228
UNSPSC 39122216
E-Number (Sweden) 3705385

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 125 mm
Package Level 1 Depth / Length 235 mm
Package Level 1 Height 50 mm
Package Level 1 Gross Weight 0.184 kg
Package Level 1 EAN 7320500240724
Shipping weight 0.184 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619100R1012

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the CP1-10G-10

Which supply voltage is CP1-10G-10 rated for?

The rated operational voltage of CP1-10G-10 is 300 V AC.

What is the HS code of CP1-10G-10 for customs?

The tariff (HS) code on file for CP1-10G-10 is 8536508090.

What is the EAN of CP1-10G-10?

The EAN (GTIN) of CP1-10G-10 is 7320500550373.

Where does CP1-10G-10 ship from, and how fast?

CP1-10G-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
