- Part number
- 1SFA611702R6006
- Model no
- MJS2-60B
Description
About the MJS2-60B
About the MJS2-60B

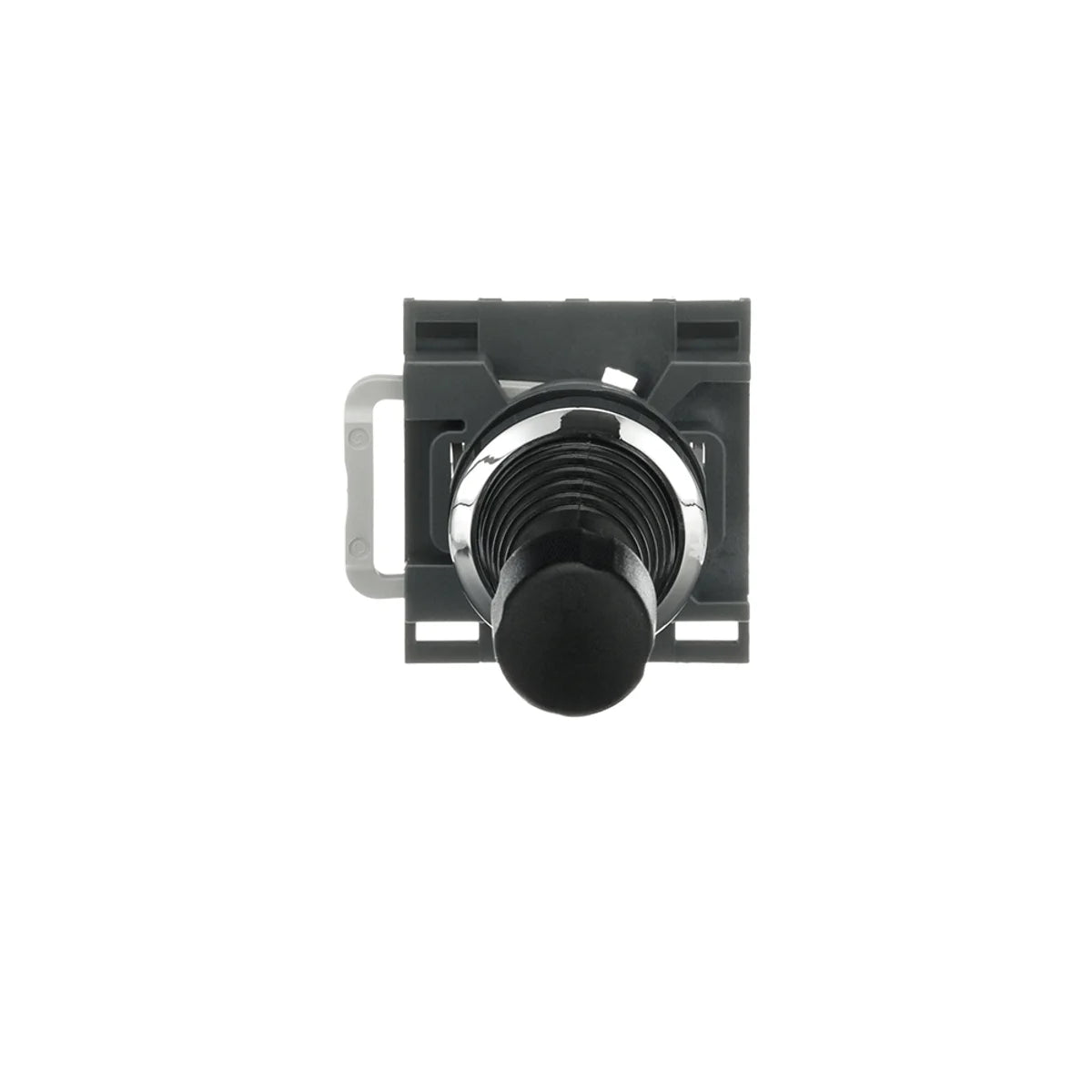

The ABB MJS2-60B (1SFA611702R6006) is an industrial-grade joystick designed for precise directional control in automation and control panel applications. Part of ABB's robust pilot device range, the MJS2-60B delivers reliable operator input for cranes, hoists, material handling equipment, and other industrial machinery. Weighing just 0.062 kg, this compact joystick meets the stringent requirements of modern industrial environments with full CE, cULus, RoHS, REACH, and UKCA certification.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- cULus: Listed by Underwriters Laboratories for both Canadian (cUL) and US (UL) markets
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — free of restricted materials
- REACH: Compliant with EU REACH regulation on chemical substances
- UKCA: UK Conformity Assessed — meets Great Britain product safety requirements post-Brexit
Applications & Use Cases
- Crane and hoist directional control systems
- Material handling and conveyor control panels
- Industrial automation and machine tool interfaces
- Pendant control stations and operator panels
- Process control and manufacturing automation equipment
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 43 mm |
| Product Net Depth / Length | 97 mm |
| Product Net Weight | 0.062 kg |
Technical 8
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 2-position |
| Enclosure Type NEMA | Type1, Type12, Type13, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K |
|---|
Show all 43 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611702R6006 |
|---|---|
| Type designation | MJS2-60B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500375709 |
| eCl@ss | 27371404 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000632 - Control switch, Joystick |
|---|---|
| ETIM 7 | EC000632 - Control switch, Joystick |
| eClass | V11.0 : 27371404 |
| UNSPSC | 39122227 |
| E-Number (Sweden) | 3705019 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 48 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 7320500375709 |
| Shipping weight | 0.065 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611702R6006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the MJS2-60B
What is the HS code of MJS2-60B for customs?
The tariff (HS) code on file for MJS2-60B is 85369001.
What is the EAN of MJS2-60B?
The EAN (GTIN) of MJS2-60B is 7320500375709.
Where does MJS2-60B ship from, and how fast?
MJS2-60B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
