- Part number
- 1SFA611701R6006
- Model no
- MJS1-60B
Description
About the MJS1-60B
About the MJS1-60B

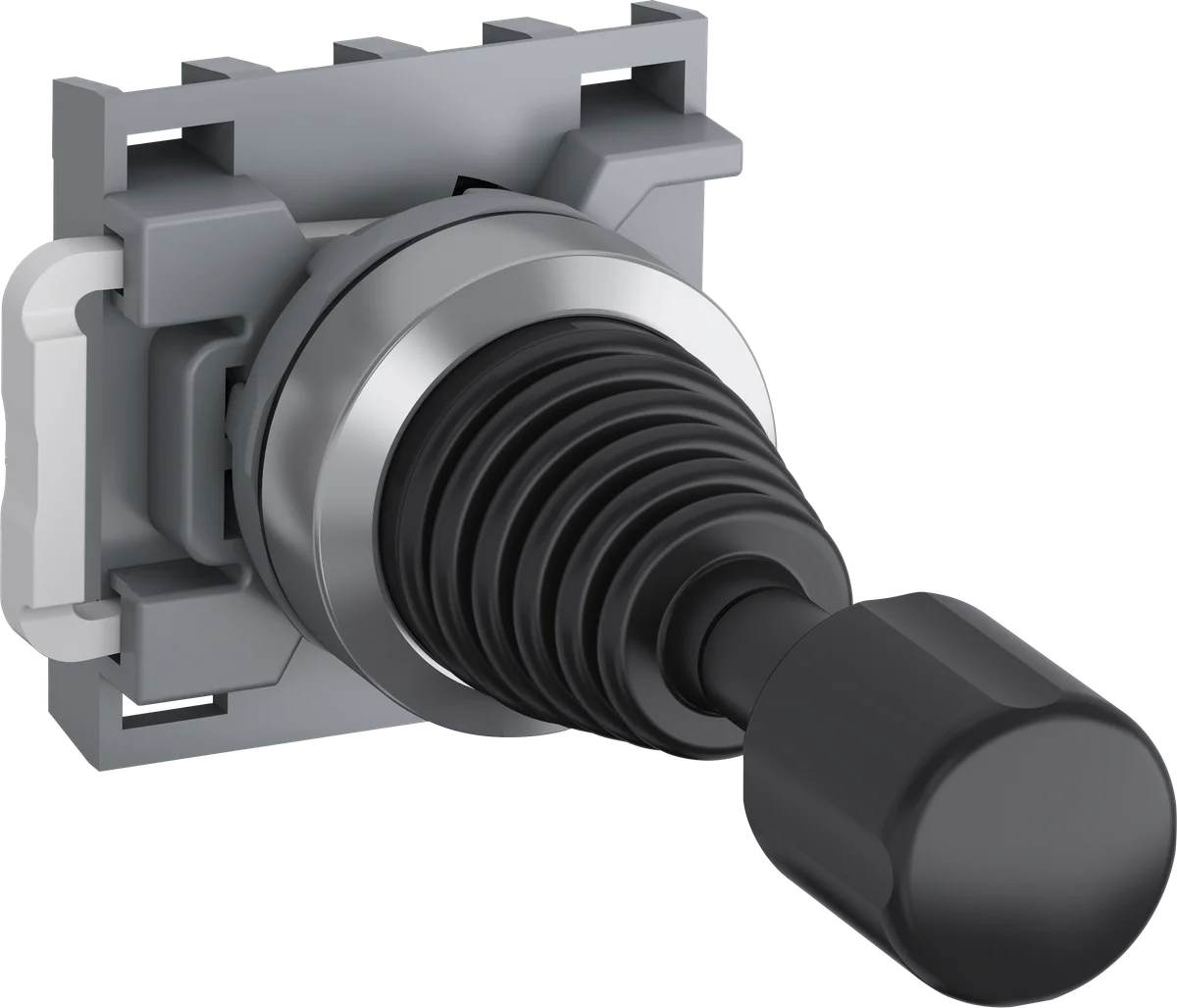

The ABB MJS1-60B (catalog no. MJS1-60B, SKU 1SFA611701R6006) is a compact industrial joystick designed for precise directional control in automation and control panel applications. Built to ABB's exacting quality standards, the MJS1-60B delivers reliable operator interface performance in a space-efficient 40mm × 43mm × 97mm form factor, weighing just 62 grams. Ideal for machine control, crane operation, and industrial automation systems where ergonomic and dependable joystick input is required.
Certifications & Standards
- CE: Compliant with EU directives for electrical equipment safety and electromagnetic compatibility
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances (EC No 1907/2006)
- cULus: Listed by Underwriters Laboratories for Canada and US market safety requirements
- UKCA: UK Conformity Assessed — meets Great Britain product safety requirements post-Brexit
Applications & Use Cases
- Industrial machine control panels requiring multi-directional operator input
- Crane and hoist control systems
- Material handling and conveyor direction control
- Factory automation and process control interfaces
- Pendant control stations and operator consoles
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 43 mm |
| Product Net Depth / Length | 97 mm |
| Product Net Weight | 0.062 kg |
Technical 8
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Enclosure Type NEMA | Type1, Type12, Type13, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K |
|---|
Show all 43 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611701R6006 |
|---|---|
| Type designation | MJS1-60B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500375693 |
| eCl@ss | 27371404 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000632 - Control switch, Joystick |
|---|---|
| ETIM 7 | EC000632 - Control switch, Joystick |
| eClass | V11.0 : 27371404 |
| UNSPSC | 39122227 |
| E-Number (Sweden) | 3705016 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 48 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 7320500375693 |
| Shipping weight | 0.065 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611701R6006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the MJS1-60B
What is the HS code of MJS1-60B for customs?
The tariff (HS) code on file for MJS1-60B is 85369001.
What is the EAN of MJS1-60B?
The EAN (GTIN) of MJS1-60B is 7320500375693.
Where does MJS1-60B ship from, and how fast?
MJS1-60B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
