- Part number
- 1SFA611410R3056
- Model no
- MT-305B
Description
About the MT-305B
About the MT-305B

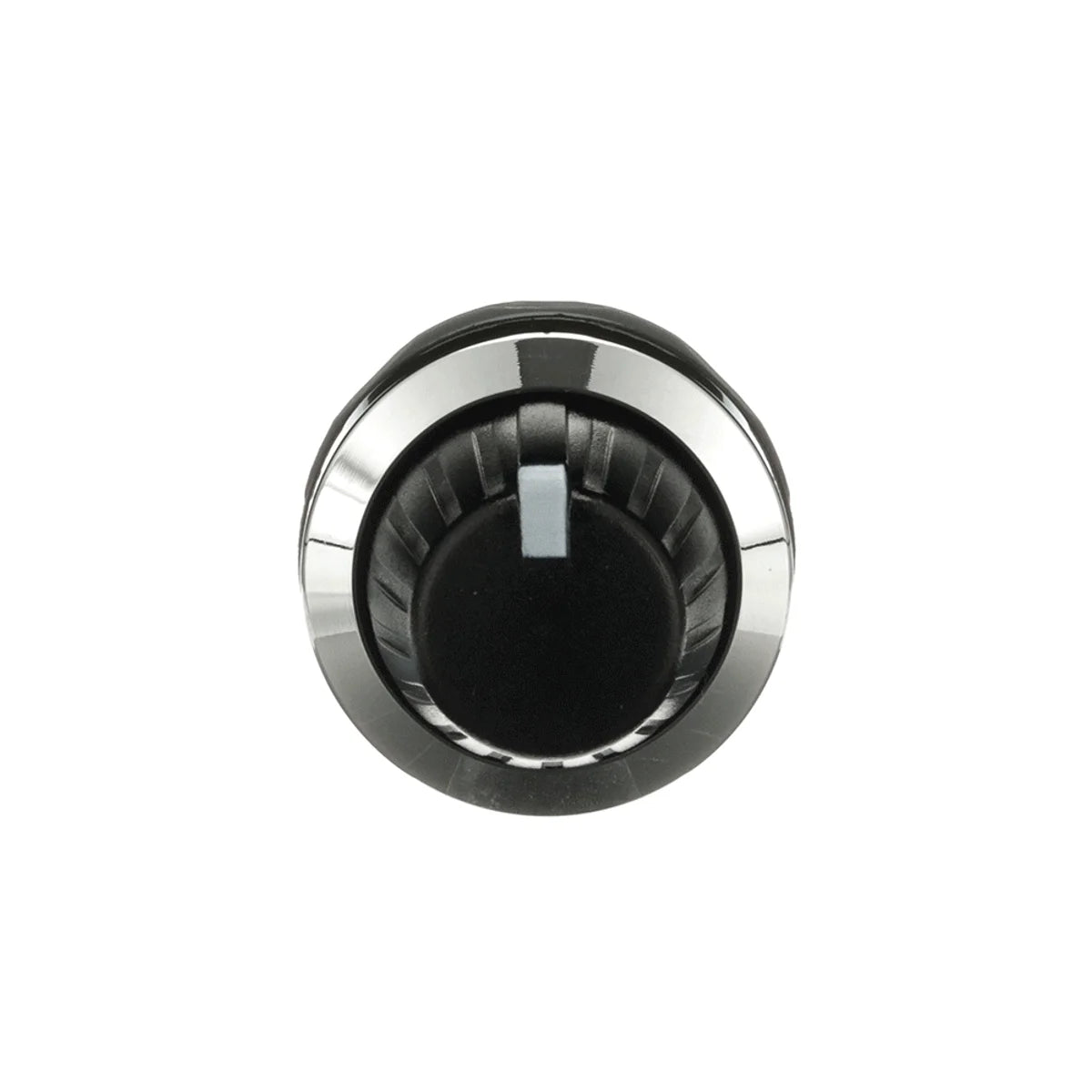

The ABB MT-305B potentiometer (SKU: 1SFA611410R3056) is a precision rotary potentiometer designed for industrial control panels and automation systems. Part of ABB's MT series pilot device range, the MT-305B provides reliable manual signal adjustment and setpoint control in demanding industrial environments. Weighing just 0.036 kg, this compact component integrates seamlessly into control enclosures and operator panels.
Certifications & Standards
- CE: Compliant with European Union directives for safety, health, and environmental protection
- REACH: Compliant with EU REACH regulation on chemical substances (Registration, Evaluation, Authorisation and Restriction of Chemicals)
- RoHS: Compliant with the Restriction of Hazardous Substances directive — free from restricted materials including lead, mercury, and cadmium
- WEEE: Compliant with the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
- cULus: Listed by Underwriters Laboratories for both US and Canadian safety standards
- UKCA: UK Conformity Assessed marking — compliant with Great Britain market requirements post-Brexit
Applications & Use Cases
The ABB MT-305B potentiometer is suited for a broad range of industrial and commercial applications:
- Speed reference setpoint adjustment on variable speed drives and motor controllers
- Analog signal input for PLCs and process controllers in industrial automation Operator panel and control desk installations requiring manual signal regulation
- Machine tool and conveyor control panels
- Building automation and HVAC control systems
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 57 mm |
| Product Net Weight | 0.036 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Resistor 5 kOhm |
| Sub-Function | Complete potentiometer |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Power Loss | Maximum 2 W |
| Connection Type | Screw Clamp |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611410R3056 |
|---|---|
| Type designation | MT-305B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500376140 |
| eCl@ss | 27371227 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001027 - Potentiometer for control circuit devices |
|---|---|
| ETIM 7 | EC001027 - Potentiometer for control circuit devices |
| eClass | V11.0 : 27371227 |
| UNSPSC | 41113633 |
| E-Number (Sweden) | 3716271 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.036 kg |
| Package Level 1 EAN | 7320500376140 |
| Shipping weight | 0.036 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611410R3056
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the MT-305B
What is the HS code of MT-305B for customs?
The tariff (HS) code on file for MT-305B is 85369001.
What is the EAN of MT-305B?
The EAN (GTIN) of MT-305B is 7320500376140.
Where does MT-305B ship from, and how fast?
MT-305B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
