Part number
1SFA611283R1001
Model no
M3SSK1-101
$11.96 In stock · 24 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
M3SSK1

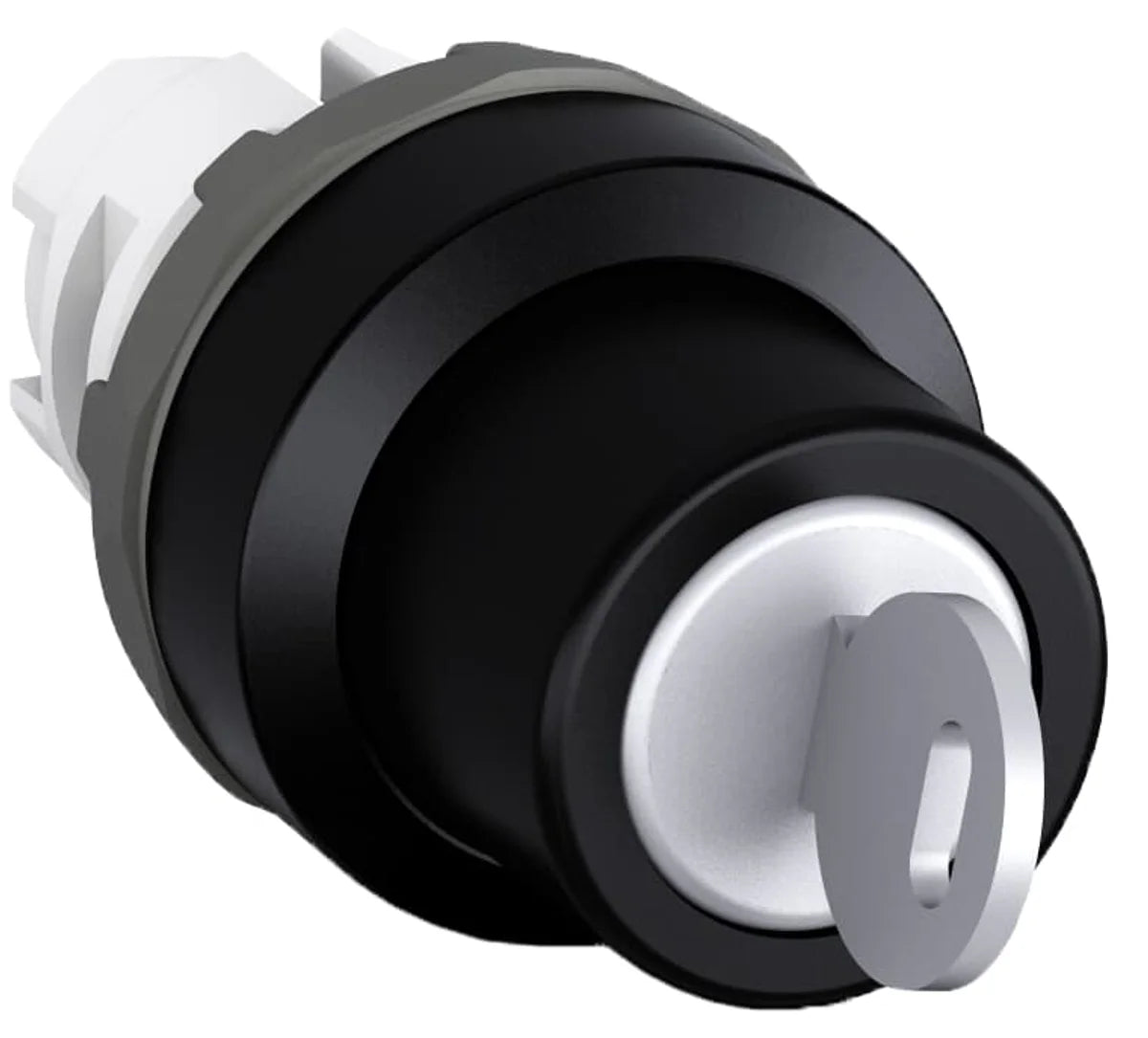

ABB 1SFA611283R1001 M3SSK1-101 Selector Switch 30mm 2-Position Industrial Control Panel

Product Net Width
30 mm
Product Net Height
30 mm
Product Net Depth / Length
63 mm
Product Net Weight
0.045 kg
EAN
7320500305027
Description

About the M3SSK1-101

The ABB M3SSK1-101 selector switch (SKU: 1SFA611283R1001) is a compact 30mm industrial-grade selector switch designed for control panel and automation applications. Engineered for reliability in demanding industrial environments, the M3SSK1-101 delivers precise switching action and is built to ABB's stringent quality standards. Weighing just 45 g and measuring 30 × 30 × 63 mm, it integrates seamlessly into standard control enclosures.

Certifications & Standards

  • CE: Conforms to European Union safety, health, and environmental protection requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market regulatory requirements
  • cULus: Certified by UL for both Canadian (cUL) and US (UL) safety standards
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substance safety
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible disposal

Applications & Use Cases

  • Control panel selector and mode switching in industrial machinery
  • Automation system operator interface switching
  • Motor control centres and distribution boards
  • General-purpose industrial electrical control circuits
Specification

Full specification

46 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 63 mm
Product Net Weight 0.045 kg

Technical 11

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Black/Key
Bezel Material Plastic
Illumination Non-illuminated
Function Maintained
Sub-Function 3-position
Maintained Positions A, B, C
Key Removal Positions A, B, C
Key Code Ronis 455, Key code 71
Enclosure Type NEMA Type1, Type12, Type3R, Type4, Type4X
Mechanical Durability 0.5 million

Environmental 1

Degree of Protection Front IP66
Show all 46 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611283R1001
Type designation M3SSK1-101
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500305027
eCl@ss 27371213
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Material Compliance 5

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE Category Product Not in WEEE Scope

External Classifications and Standards 5

ETIM 6 EC000222 - Front element for selector switch
ETIM 7 EC000222 - Front element for selector switch
eClass V11.0 : 27371213
UNSPSC 39122217
E-Number (Sweden) 3715615

Logistics 10

Package Level 1 Units bag 1 piece
Package Level 1 Width 110 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Height 30 mm
Package Level 1 Gross Weight 0.069 kg
Package Level 1 EAN 7320500305027
Shipping weight 0.069 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611283R1001

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
Quick answers

Questions about the M3SSK1-101

What is the HS code of M3SSK1-101 for customs?

The tariff (HS) code on file for M3SSK1-101 is 8536508090.

What is the EAN of M3SSK1-101?

The EAN (GTIN) of M3SSK1-101 is 7320500305027.

Where does M3SSK1-101 ship from, and how fast?

M3SSK1-101 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
