- Part number
- 1SFA611280R1001
- Model no
- M2SSK1-101
- CE
- RoHS
- UKCA
Description
About the M2SSK1-101
About the M2SSK1-101

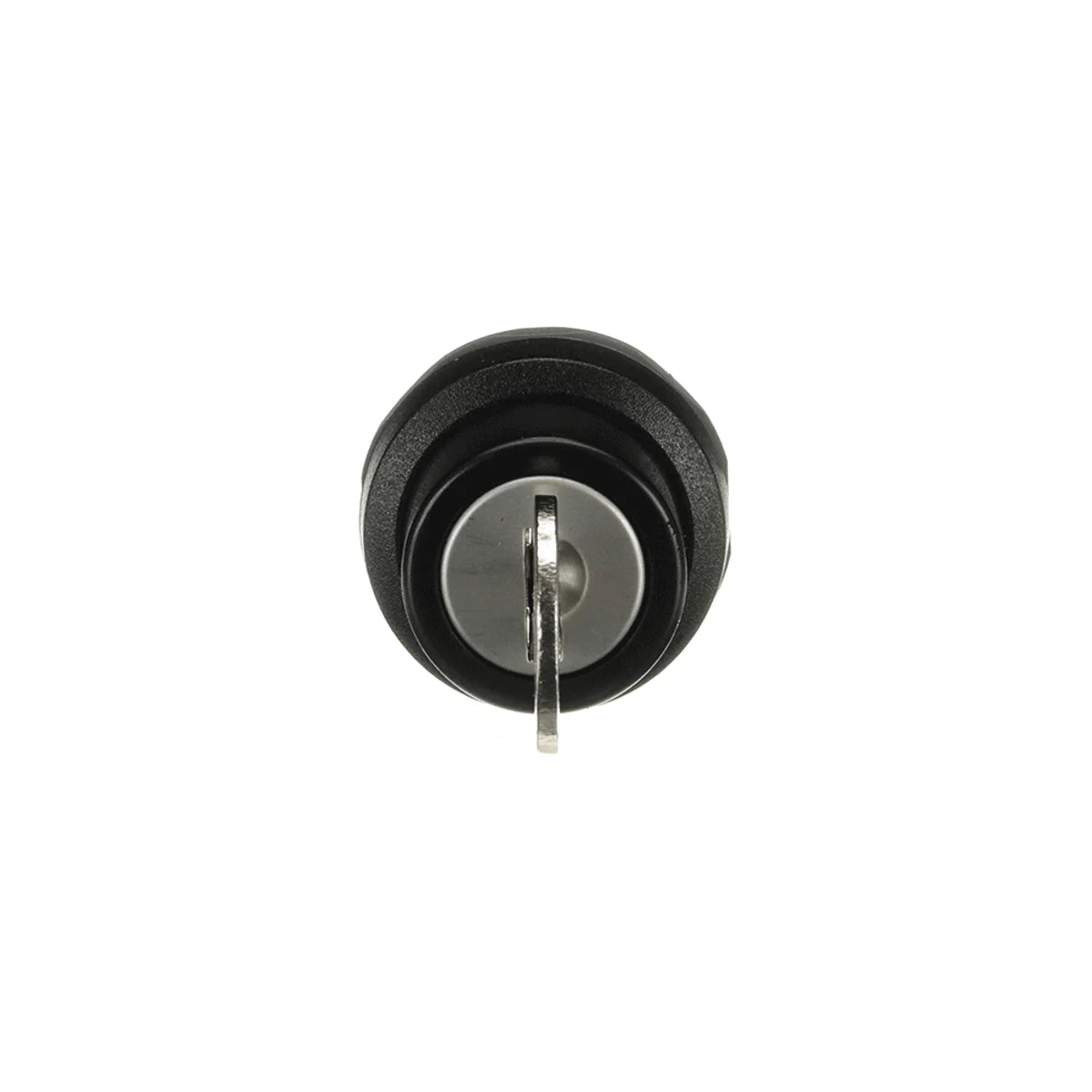

The ABB M2SSK1-101 selector switch (SKU: 1SFA611280R1001) is an industrial-grade pilot device designed for control panel and automation applications. Part of ABB's M2SS selector switch range, the M2SSK1-101 delivers reliable switching performance in demanding industrial environments, weighing just 0.045 kg and carrying full CE, cULus, RoHS, REACH, WEEE, and UKCA certifications for global deployment.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- cULus: Listed by Underwriters Laboratories for both Canadian (cUL) and US (UL) markets
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive — free from restricted materials
- REACH: Compliant with EU REACH regulation on chemical safety and substance registration
- WEEE: Registered under the EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
- UKCA: UK Conformity Assessed marking for sale and use within Great Britain
Applications & Use Cases
The ABB M2SSK1-101 selector switch is suited for a wide range of industrial automation and control panel applications. Typical uses include machine start/stop selection, mode selection (manual/automatic), and circuit switching in motor control centres, distribution boards, and operator control stations. Its compact form factor and lightweight construction (0.045 kg) make it ideal for space-constrained panel designs where reliable operator interface is essential.
Specification
Full specification
Dimensions 4
| Product Net Width | 48 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.045 kg |
Technical 11
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black/Key |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Maintained Positions | B, C |
| Key Removal Positions | Both Positions |
| Key Code | Ronis 455, Key code 71 |
| Enclosure Type NEMA | Type1, Type12, Type3R, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 47 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611280R1001 |
|---|---|
| Type designation | M2SSK1-101 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500304242 |
| eCl@ss | 27371213 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000222 - Front element for selector switch |
|---|---|
| ETIM 7 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3715600 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.069 kg |
| Package Level 1 EAN | 7320500304242 |
| Shipping weight | 0.069 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611280R1001 8
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SFC151007C02__
Data Sheet, Technical Information 1SFC151007C02__
-
Manual
ProductDownload PDF: Instructions and Manuals 1SFC151011M0201
Instructions and Manuals 1SFC151011M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006479
REACH Declaration 2CMT2022-006479
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006498
RoHS Declaration 2CMT2022-006498
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2CMT2015-005452
Declaration of Conformity - CE 2CMT2015-005452
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2CMT2020-006121
Declaration of Conformity - UKCA 2CMT2020-006121
-
Certificate
ProductDownload PDF: cULus Certificate 9AKK107046A9925
cULus Certificate 9AKK107046A9925
-
Certificate
ProductDownload PDF: DNV GL Certificate E-14107
DNV GL Certificate E-14107
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the M2SSK1-101
What is the HS code of M2SSK1-101 for customs?
The tariff (HS) code on file for M2SSK1-101 is 8536508090.
What is the EAN of M2SSK1-101?
The EAN (GTIN) of M2SSK1-101 is 7320500304242.
Where does M2SSK1-101 ship from, and how fast?
M2SSK1-101 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
