- Part number
- 1SFA611214R1006
- Model no
- M3SS5-10B
Description
About the M3SS5-10B
About the M3SS5-10B

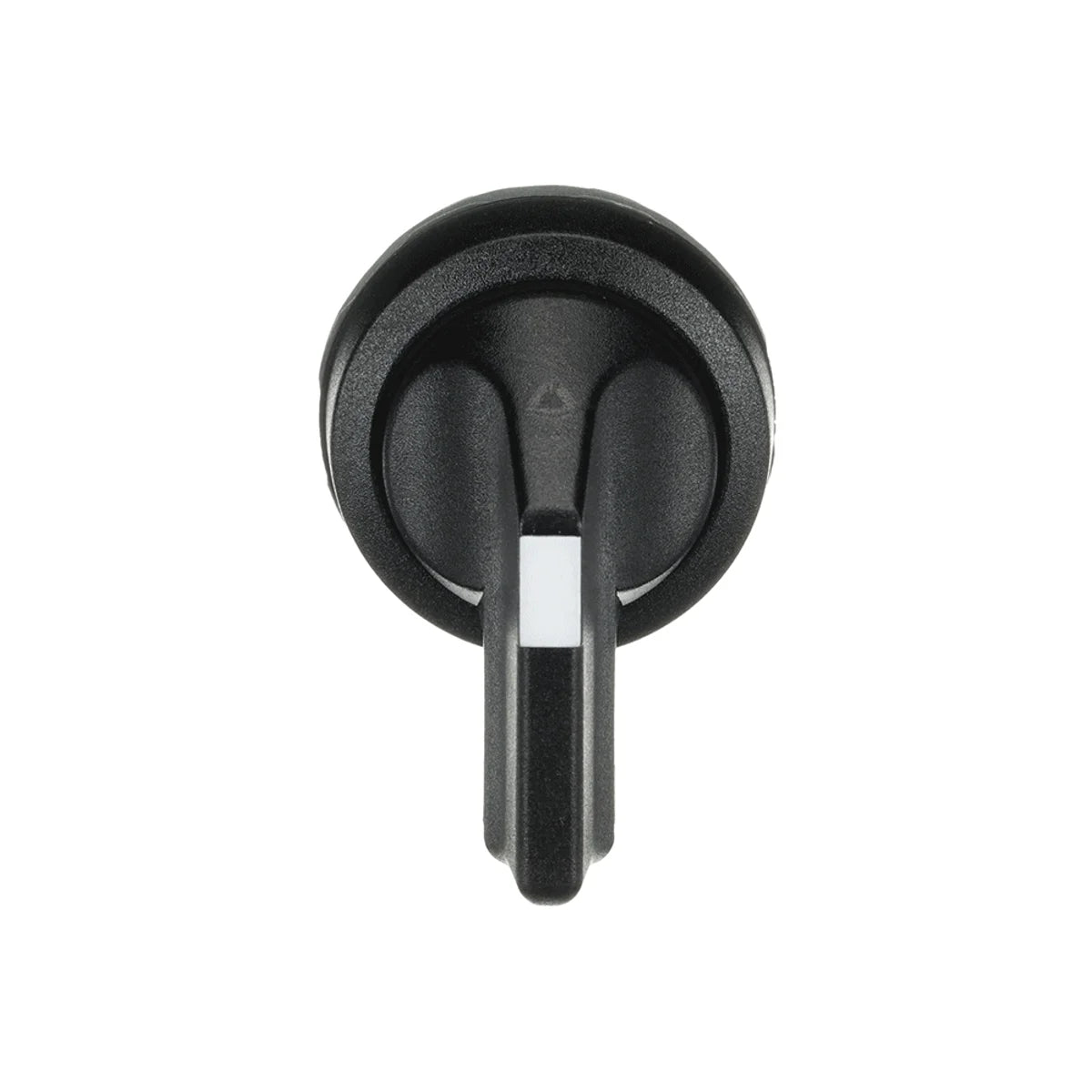

The ABB M3SS5-10B (SKU: 1SFA611214R1006) is a compact industrial selector switch designed for reliable circuit selection and control panel switching applications. Engineered to ABB's M3SS5 series standards, the M3SS5-10B delivers dependable performance in industrial automation, machine control, and panel-building environments. Weighing just 25 g, this selector switch is ideal for space-conscious panel installations requiring precise, repeatable switching action.
Certifications & Standards
- CE: Complies with European Union safety, health, and environmental protection requirements.
- cULus: Listed by Underwriters Laboratories for both Canadian (cUL) and US (UL) markets, confirming product safety compliance.
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU.
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) governing chemical substance safety.
- WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal.
- UKCA: UK Conformity Assessed mark, confirming compliance with UK product safety regulations post-Brexit.
Applications & Use Cases
- Industrial control panels and switchboards
- Machine tool and automation equipment control
- Motor start/stop and mode selection circuits
- Building automation and HVAC control systems
- Panel-building and OEM equipment assemblies
Frequently Asked Questions
What is the catalog number for this ABB selector switch?
The catalog number is M3SS5-10B. This is the identifier printed on the product, datasheets, and BOMs. The internal SKU/reference is 1SFA611214R1006.
Is the ABB M3SS5-10B RoHS compliant?
Yes. The M3SS5-10B carries RoHS, REACH, CE, UKCA, cULus, and WEEE certifications, making it suitable for global industrial deployments.
What is the weight of the M3SS5-10B selector switch?
The ABB M3SS5-10B weighs 0.025 kg (25 g), making it a lightweight option for panel installations.
Specification
Full specification
Dimensions 4
| Product Net Width | 48 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.025 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 3-position |
| Spring Return From | A and C to B |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 44 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611214R1006 |
|---|---|
| Type designation | M3SS5-10B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500298183 |
| eCl@ss | 27371213 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000222 - Front element for selector switch |
|---|---|
| ETIM 7 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3715755 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.025 kg |
| Package Level 1 EAN | 7320500298183 |
| Shipping weight | 0.025 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611214R1006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the M3SS5-10B
What is the HS code of M3SS5-10B for customs?
The tariff (HS) code on file for M3SS5-10B is 8536508090.
What is the EAN of M3SS5-10B?
The EAN (GTIN) of M3SS5-10B is 7320500298183.
Where does M3SS5-10B ship from, and how fast?
M3SS5-10B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
