- Part number
- 1SFA611211R1006
- Model no
- M3SS2-10B
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Description
About the M3SS2-10B
About the M3SS2-10B

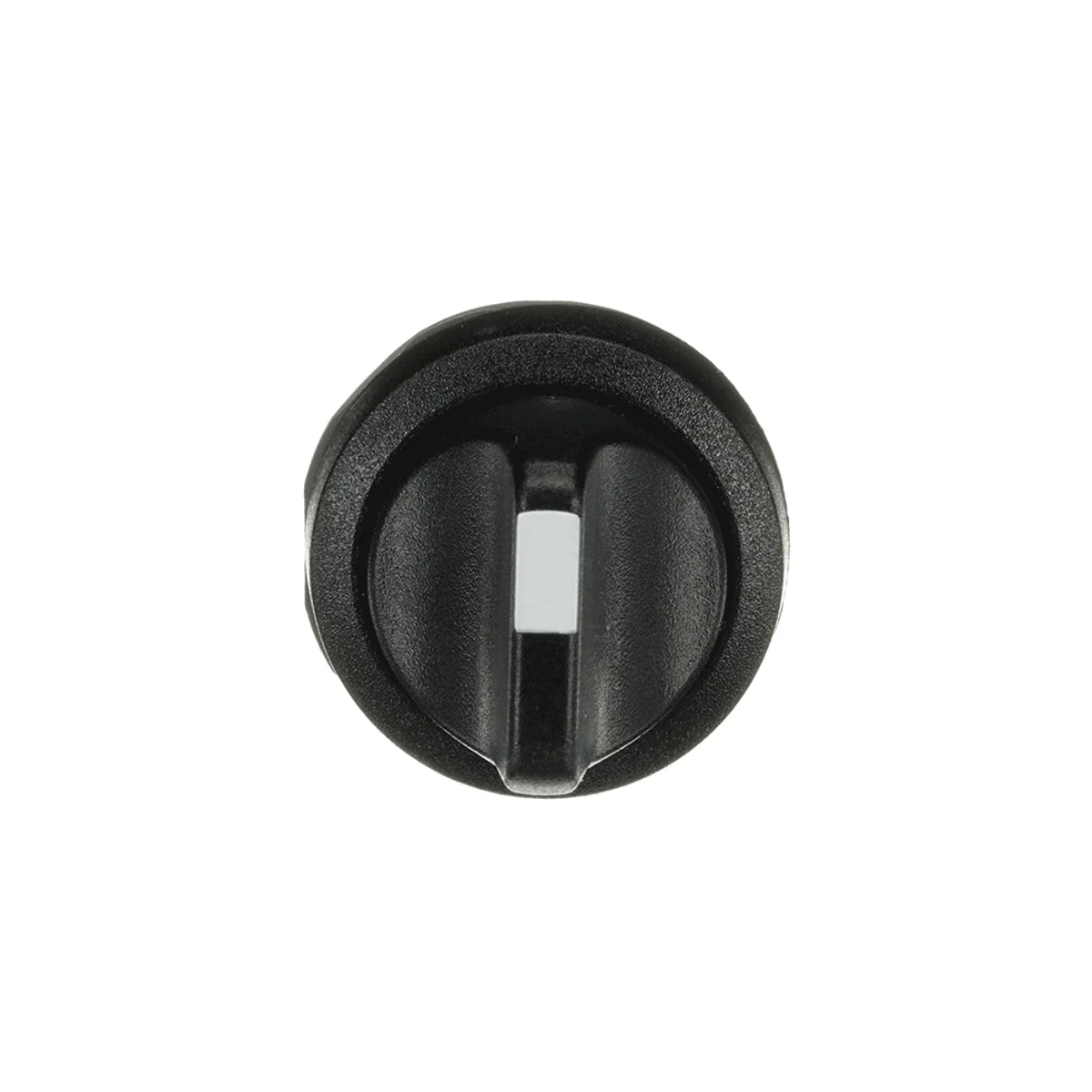

The ABB M3SS2-10B (1SFA611211R1006) is a 2-position selector switch designed for industrial control panels and automation applications. Part of ABB's M3 pilot device range, the M3SS2-10B delivers reliable manual switching control in a compact, lightweight 24 g form factor, making it well-suited for machine control panels, motor control centers, and process automation enclosures.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental requirements for electrical equipment.
- UKCA: UK Conformity Assessed marking, confirming compliance with Great Britain regulatory requirements post-Brexit.
- cULus: Listed by Underwriters Laboratories for both the Canadian (cUL) and US (UL) markets, verifying safety compliance in North America.
- RoHS: Compliant with the EU Restriction of Hazardous Substances Directive — free from lead, mercury, cadmium, and other restricted materials.
- REACH: Compliant with EU REACH regulation governing chemicals used in electrical and electronic products.
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for proper end-of-life recycling and disposal.
Applications & Use Cases
- Motor start/stop and forward/reverse control in machine panels
- Manual mode selection in industrial automation systems
- Process control enclosures and motor control centers (MCCs)
- OEM control panel integration requiring compact pilot devices
- General industrial switching in manufacturing and utilities
Specification
Full specification
Dimensions 4
| Product Net Width | 48 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.024 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 3-position |
| Spring Return From | A and C to B |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 44 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611211R1006 |
|---|---|
| Type designation | M3SS2-10B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500294581 |
| eCl@ss | 27371213 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000222 - Front element for selector switch |
|---|---|
| ETIM 7 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3715735 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.024 kg |
| Package Level 1 EAN | 7320500294581 |
| Shipping weight | 0.024 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611211R1006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- UKCA
Quick answers
Questions about the M3SS2-10B
What is the HS code of M3SS2-10B for customs?
The tariff (HS) code on file for M3SS2-10B is 8536508090.
What is the EAN of M3SS2-10B?
The EAN (GTIN) of M3SS2-10B is 7320500294581.
Where does M3SS2-10B ship from, and how fast?
M3SS2-10B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
