- Part number
- 1SFA611203R1006
- Model no
- M2SS4-10B
Description
About the M2SS4-10B
About the M2SS4-10B

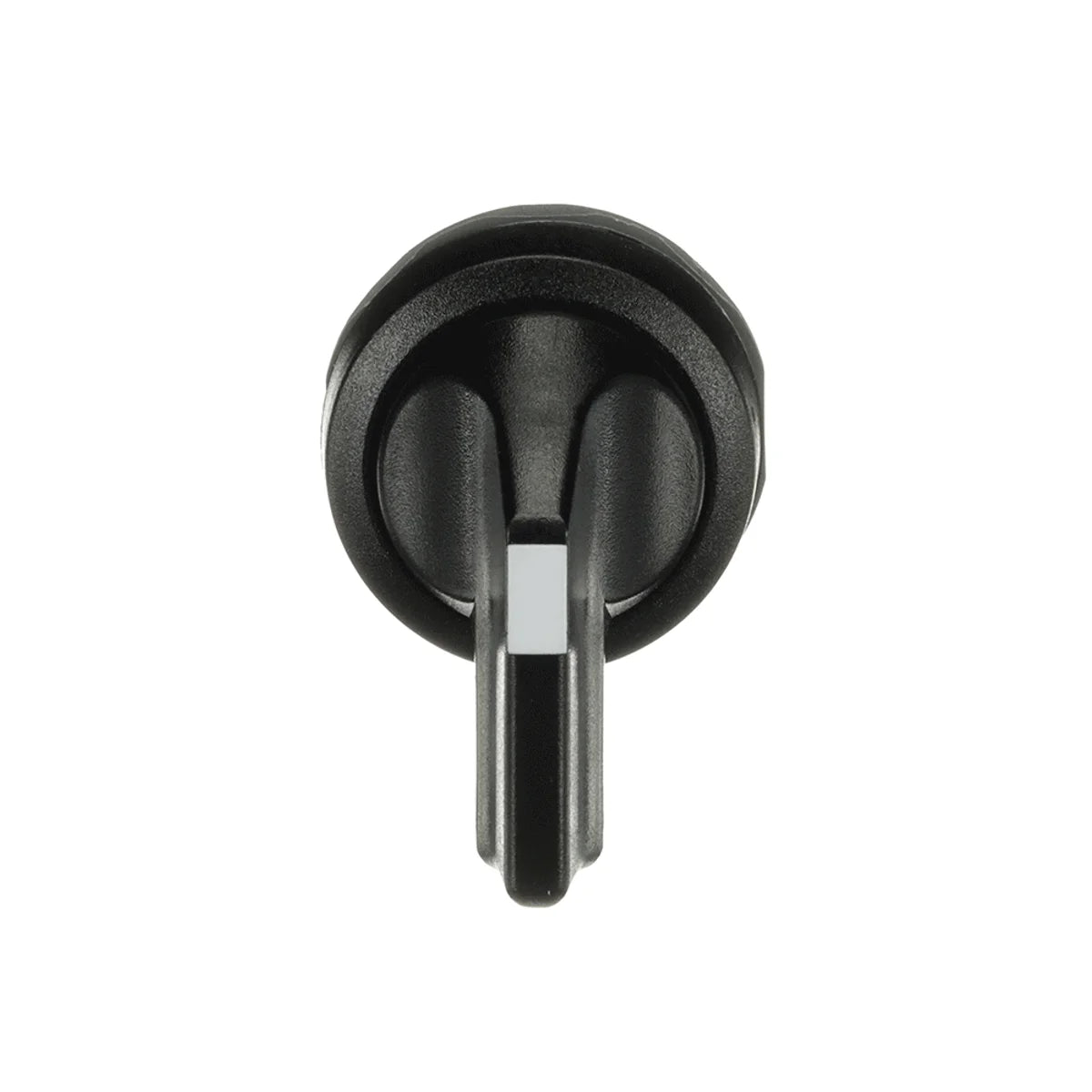

The ABB M2SS4-10B (SKU: 1SFA611203R1006) is a compact selector switch designed for industrial control panel applications, providing reliable manual switching and control signal selection in automation and electrical systems. The M2SS4-10B offers robust construction and meets multiple international certifications, making it suitable for demanding industrial environments worldwide. Weighing only 0.025 kg, this lightweight pilot device integrates seamlessly into control enclosures and switchgear panels.
Certifications & Standards
- CE: Conforms to European Union directives for safety, health, and environmental protection
- cULus: Listed by Underwriters Laboratories for both Canadian (cUL) and US (UL) market requirements
- UKCA: UK Conformity Assessed — compliant for the Great Britain market post-Brexit
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) regarding chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Manual mode selection in industrial automation and PLC control panels
- Start/stop or local/remote switching in motor control centers >
- Operational mode control in machine tool and process control enclosures
- General-purpose selector switching in commercial and industrial electrical switchgear
Specification
Full specification
Dimensions 4
| Product Net Width | 48 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.025 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Maintained Positions | B, C |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611203R1006 |
|---|---|
| Type designation | M2SS4-10B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500288344 |
| eCl@ss | 27371213 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000222 - Front element for selector switch |
|---|---|
| ETIM 7 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3715715 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.025 kg |
| Package Level 1 EAN | 7320500288344 |
| Shipping weight | 0.025 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611203R1006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the M2SS4-10B
What is the HS code of M2SS4-10B for customs?
The tariff (HS) code on file for M2SS4-10B is 8536508090.
What is the EAN of M2SS4-10B?
The EAN (GTIN) of M2SS4-10B is 7320500288344.
Where does M2SS4-10B ship from, and how fast?
M2SS4-10B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
