- Part number
- 1SFA611200R1006
- Model no
- M2SS1-10B
Description
About the M2SS1-10B
About the M2SS1-10B

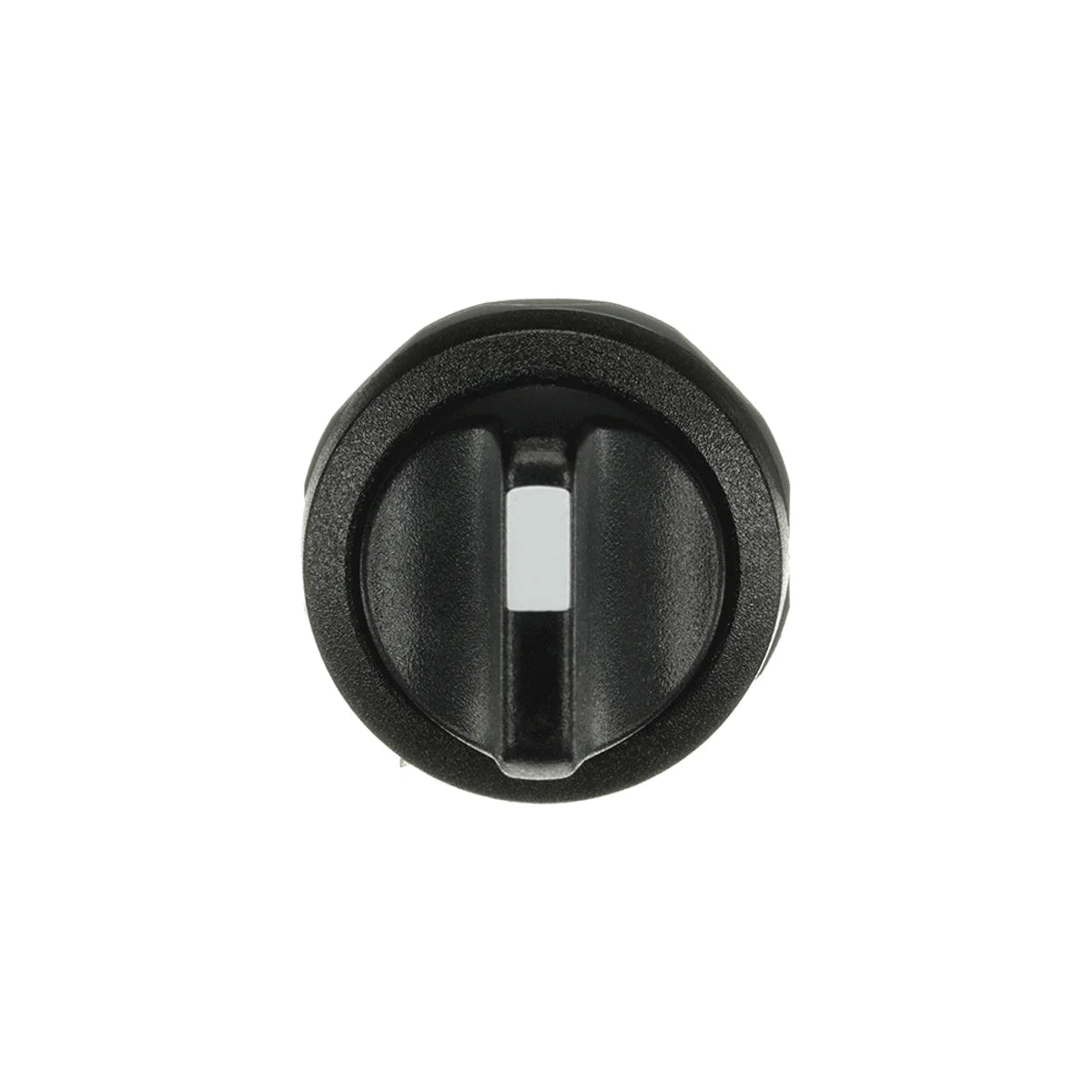

The ABB M2SS1-10B selector switch (SKU: 1SFA611200R1006) is an industrial-grade pilot device designed for reliable manual switching and control circuit selection in control panels and automation systems. Part of ABB's M2SS1 series, this compact selector switch delivers robust performance in demanding industrial environments, weighing just 24 g and carrying full CE, cULus, and RoHS certification for global compliance.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements for the European market
- cULus: Certified by UL for both Canadian (cUL) and US (UL) safety standards for industrial electrical components
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU limiting use of hazardous materials
- REACH: Compliant with EU REACH regulation (EC No. 1907/2006) governing chemical substances in products
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling
- UKCA: UK Conformity Assessed — meets Great Britain market conformity requirements post-Brexit
Applications & Use Cases
The ABB M2SS1-10B selector switch is suited for a wide range of industrial automation and control applications, including:
- Machine control panels requiring manual mode/speed or function selection
- Motor control centers for local/remote or hand/off/auto switching
- Industrial automation enclosures in manufacturing, processing, and assembly lines
- OEM equipment control desks and operator interface stations
- Building automation and HVAC control panels
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.024 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Maintained Positions | B, C |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 0.5 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611200R1006 |
|---|---|
| Type designation | M2SS1-10B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500283301 |
| eCl@ss | 27371213 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000222 - Front element for selector switch |
|---|---|
| ETIM 7 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| E-Number (Sweden) | 3715701 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.024 kg |
| Package Level 1 EAN | 7320500283301 |
| Shipping weight | 0.024 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611200R1006
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the M2SS1-10B
What is the HS code of M2SS1-10B for customs?
The tariff (HS) code on file for M2SS1-10B is 8536508090.
What is the EAN of M2SS1-10B?
The EAN (GTIN) of M2SS1-10B is 7320500283301.
Where does M2SS1-10B ship from, and how fast?
M2SS1-10B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
