Part number
1SFA611142R1106
Model no
MPD13-11B
$7.58 In stock · 20 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

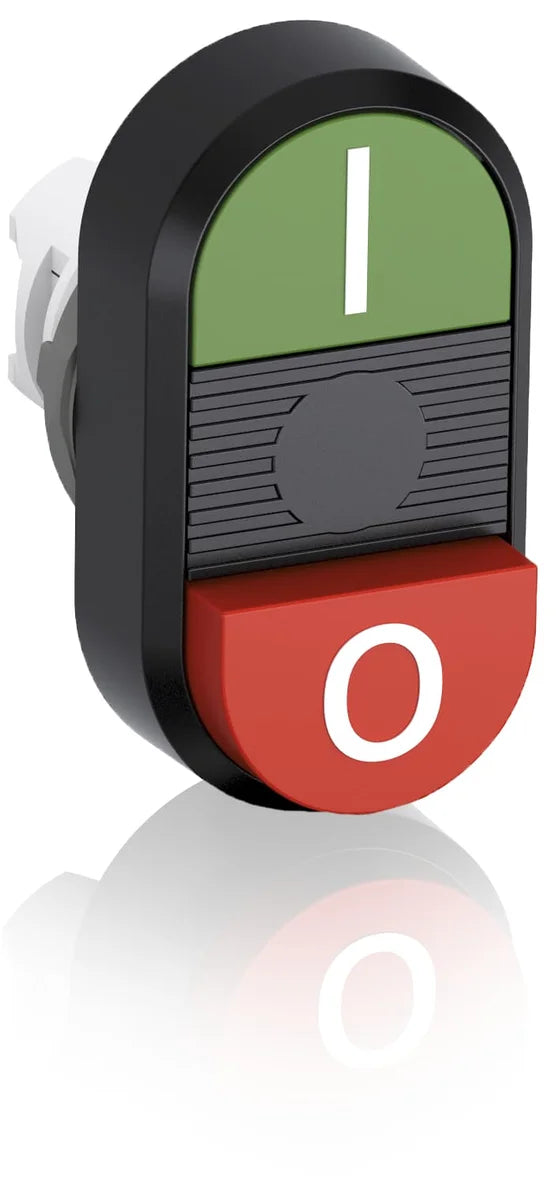

ABB 1SFA611142R1106 MPD13-11B Double Pushbutton

Product Net Width
54 mm
Product Net Height
30 mm
Product Net Depth / Length
43 mm
Product Net Weight
0.025 kg
EAN
7320500280294
Description

About the MPD13-11B

The ABB MPD13-11B (SKU: 1SFA611142R1106) is a double pushbutton pilot device designed for control panel and industrial automation applications. Weighing just 0.025 kg, this compact unit carries full compliance with CE, RoHS, cULus, and UKCA standards, making it suitable for demanding global deployments. The MPD13-11B delivers reliable operator interface control in a robust, standardised form factor trusted by engineers worldwide.

Certifications & Standards

  • CE: Conforms to European Union directives for electrical equipment safety and electromagnetic compatibility.
  • cULus: Listed by Underwriters Laboratories for both Canadian and US market safety requirements.
  • RoHS: Compliant with the Restriction of Hazardous Substances Directive — free from restricted materials including lead and mercury.
  • REACH: Compliant with EU REACH regulation on chemical substances.
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal.
  • UKCA: UK Conformity Assessed marking for post-Brexit Great Britain market access.

Applications & Use Cases

The ABB MPD13-11B double pushbutton is widely used as a pilot device in machine control panels, industrial automation systems, and operator interface stations. Its dual-button configuration is ideal for start/stop, forward/reverse, or up/down control functions across manufacturing, process control, and building automation environments.

Specification

Full specification

43 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 54 mm
Product Net Height 30 mm
Product Net Depth / Length 43 mm
Product Net Weight 0.025 kg

Technical 8

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Green/Red Actuator
Bezel Material Plastic
Illumination Non-illuminated
Function Momentary
Device Marking Io
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Mechanical Durability 2 million

Environmental 1

Degree of Protection Front IP66
Show all 43 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611142R1106
Type designation MPD13-11B
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500280294
eCl@ss 27371210
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Material Compliance 5

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE Category Product Not in WEEE Scope

External Classifications and Standards 5

ETIM 6 EC000221 - Front element for push button
ETIM 7 EC000221 - Front element for push button
eClass V11.0 : 27371210
UNSPSC 39122216
E-Number (Sweden) 3705810

Logistics 10

Package Level 1 Units bag 1 piece
Package Level 1 Width 110 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Height 30 mm
Package Level 1 Gross Weight 0.028 kg
Package Level 1 EAN 7320500280294
Shipping weight 0.025 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611142R1106

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
Quick answers

Questions about the MPD13-11B

What is the HS code of MPD13-11B for customs?

The tariff (HS) code on file for MPD13-11B is 8536508090.

What is the EAN of MPD13-11B?

The EAN (GTIN) of MPD13-11B is 7320500280294.

Where does MPD13-11B ship from, and how fast?

MPD13-11B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
