- Part number
- 1SFA611142R1103
- Model no
- MPD13-11Y
Description
About the MPD13-11Y
About the MPD13-11Y

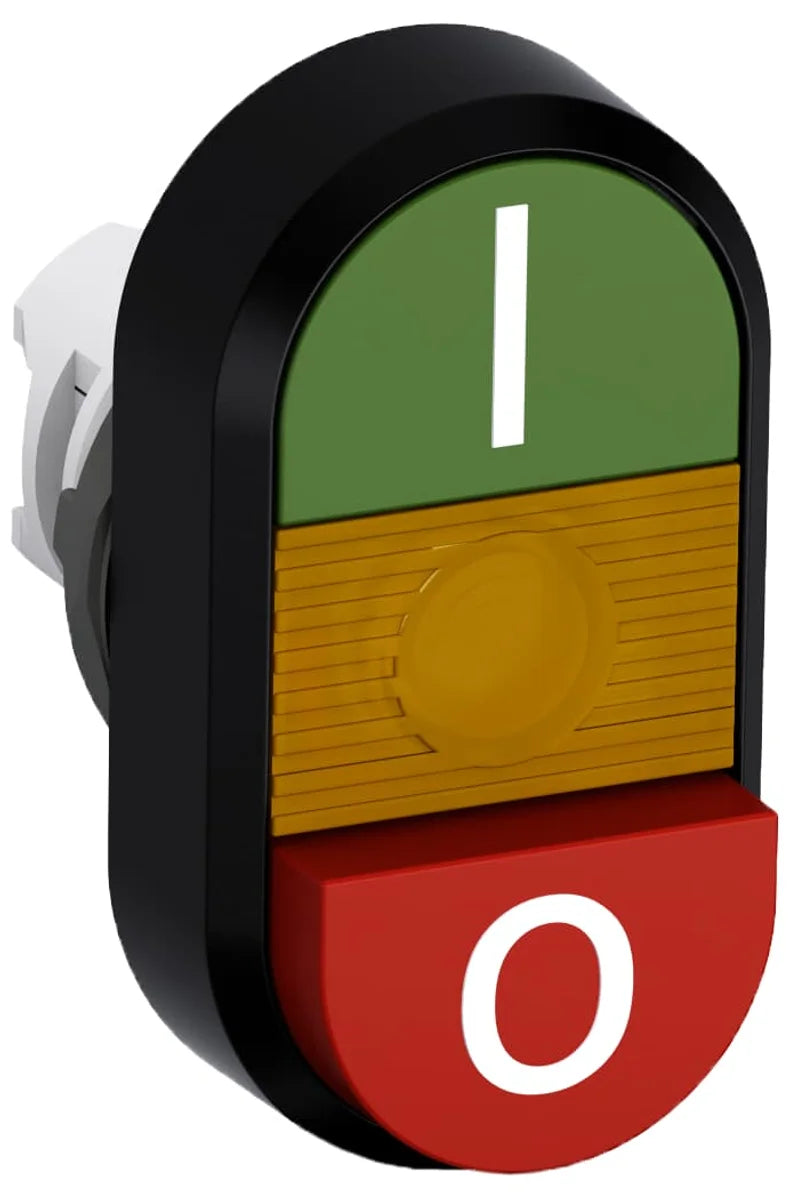

The ABB MPD13-11Y (SKU: 1SFA611142R1103) is a double pushbutton pilot device designed for industrial control panel and automation applications. Weighing just 0.025 kg, this compact and robust pushbutton delivers reliable operator interface control in demanding industrial environments. The MPD13-11Y meets rigorous international standards and carries a full suite of global certifications, making it suitable for installations worldwide.
Certifications & Standards
- CE: Complies with European Union safety, health, and environmental protection requirements.
- UKCA: UK Conformity Assessed marking for Great Britain market compliance.
- cULus: Listed by Underwriters Laboratories for both Canadian and US markets.
- CCC: China Compulsory Certification for the Chinese market.
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials.
- REACH: Compliant with EU REACH regulation on chemicals and their safe use.
- WEEE: Compliant with Waste Electrical and Electronic Equipment directive for responsible disposal.
Applications & Use Cases
The ABB MPD13-11Y double pushbutton is ideal for a wide range of industrial automation and control applications. Its dual-button configuration makes it well suited for start/stop control, forward/reverse motor control, and two-step operator commands on control panels, machine tools, conveyor systems, and process automation equipment. The MPD13-11Y is a trusted pilot device choice for engineers and system integrators requiring compact, globally certified operator interface components in demanding industrial environments.
Specification
Full specification
Dimensions 4
| Product Net Width | 54 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 43 mm |
| Product Net Weight | 0.025 kg |
Technical 8
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Green/Red Actuator, Yellow Indicator |
| Bezel Material | Plastic |
| Illumination | Illuminated |
| Function | Momentary |
| Device Marking | Io |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 2 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 42 specifications ↓ Show less ↑29 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611142R1103 |
|---|---|
| Type designation | MPD13-11Y |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500280287 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501999 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 4
| ETIM 6 | EC000221 - Front element for push button |
|---|---|
| ETIM 7 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.028 kg |
| Package Level 1 EAN | 7320500280287 |
| Shipping weight | 0.028 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611142R1103
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MPD13-11Y
What is the HS code of MPD13-11Y for customs?
The tariff (HS) code on file for MPD13-11Y is 8536501999.
What is the EAN of MPD13-11Y?
The EAN (GTIN) of MPD13-11Y is 7320500280287.
Where does MPD13-11Y ship from, and how fast?
MPD13-11Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
