- Part number
- 1SFA611124R1001
- Model no
- MPM1-10R
Description
About the MPM1-10R
About the MPM1-10R

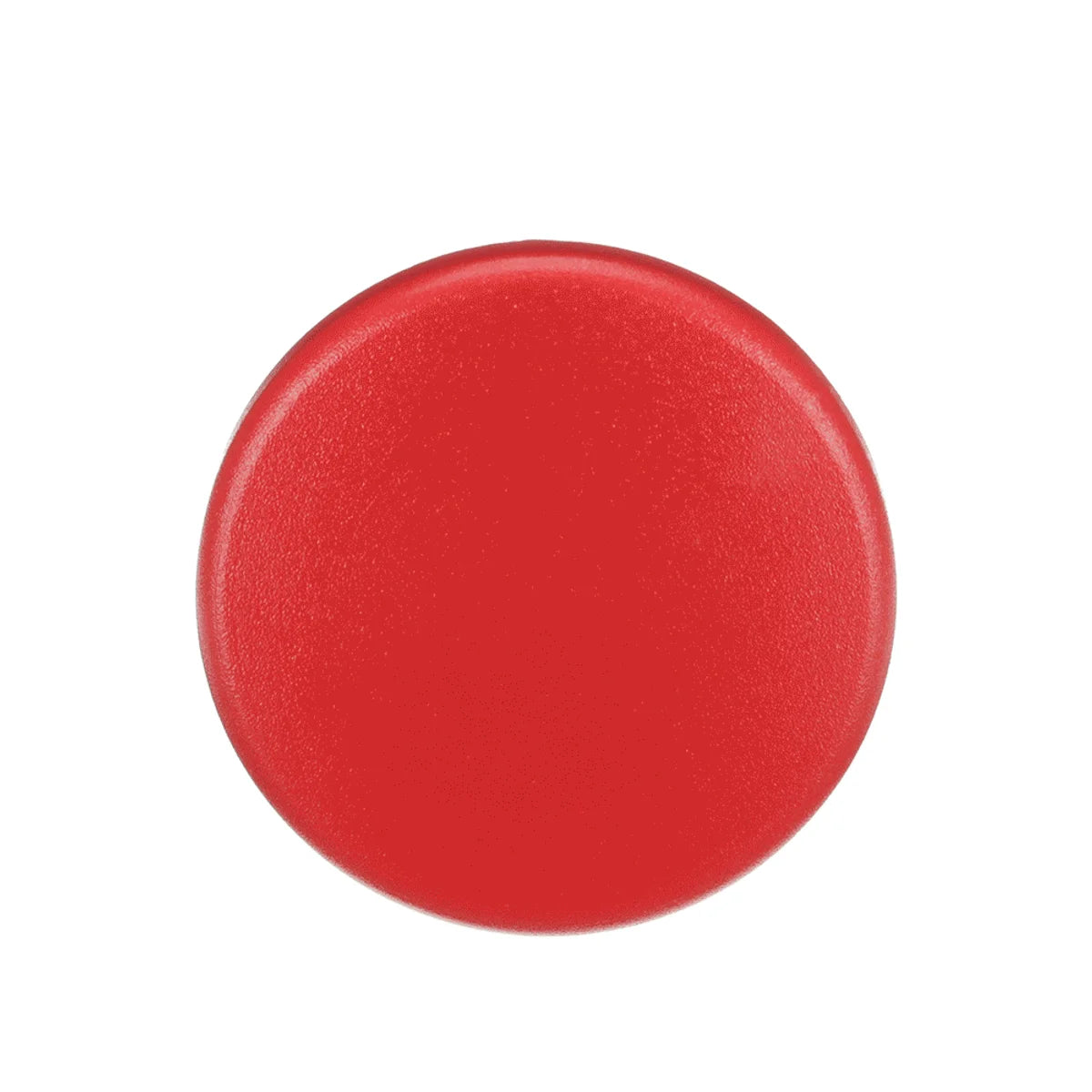

The ABB MPM1-10R (catalog no. MPM1-10R, SKU 1SFA611124R1001) is a mushroom pushbutton designed for industrial control panels and automation equipment. This compact pilot device weighs just 0.018 kg and is built to ABB's rigorous quality standards, making it suitable for machine control, operator interface stations, and emergency-stop or command-function applications across a wide range of industrial environments.
Certifications & Standards
- CE: Compliant with European Union safety, health, and environmental protection requirements.
- UKCA: UK Conformity Assessed marking for products placed on the Great Britain market.
- cULus: Listed by Underwriters Laboratories for both US and Canadian safety standards.
- CCC: China Compulsory Certification for products sold in the Chinese market.
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — lead-free and environmentally responsible construction.
- REACH: Compliant with EU REACH regulation on chemical substances used in manufacturing.
Applications & Use Cases
- Machine control panels and operator workstations
- Industrial automation and process control systems
- Command and signalling functions on control desks
- Manufacturing, packaging, and material-handling equipment
- Emergency stop or function-select pushbutton assemblies
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 40 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 0.018 kg |
Technical 7
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 2 million |
Environmental 1
| Degree of Protection | Front IP66, Terminals IP20 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611124R1001 |
|---|---|
| Type designation | MPM1-10R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500274866 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3716500 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.021 kg |
| Package Level 1 EAN | 7320500274866 |
| Shipping weight | 0.021 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611124R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MPM1-10R
What is the HS code of MPM1-10R for customs?
The tariff (HS) code on file for MPM1-10R is 8536508090.
What is the EAN of MPM1-10R?
The EAN (GTIN) of MPM1-10R is 7320500274866.
Where does MPM1-10R ship from, and how fast?
MPM1-10R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
