Part number
1SFA611100R1103
Model no
MP1-11Y
$9.00 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Modular Plastic Range

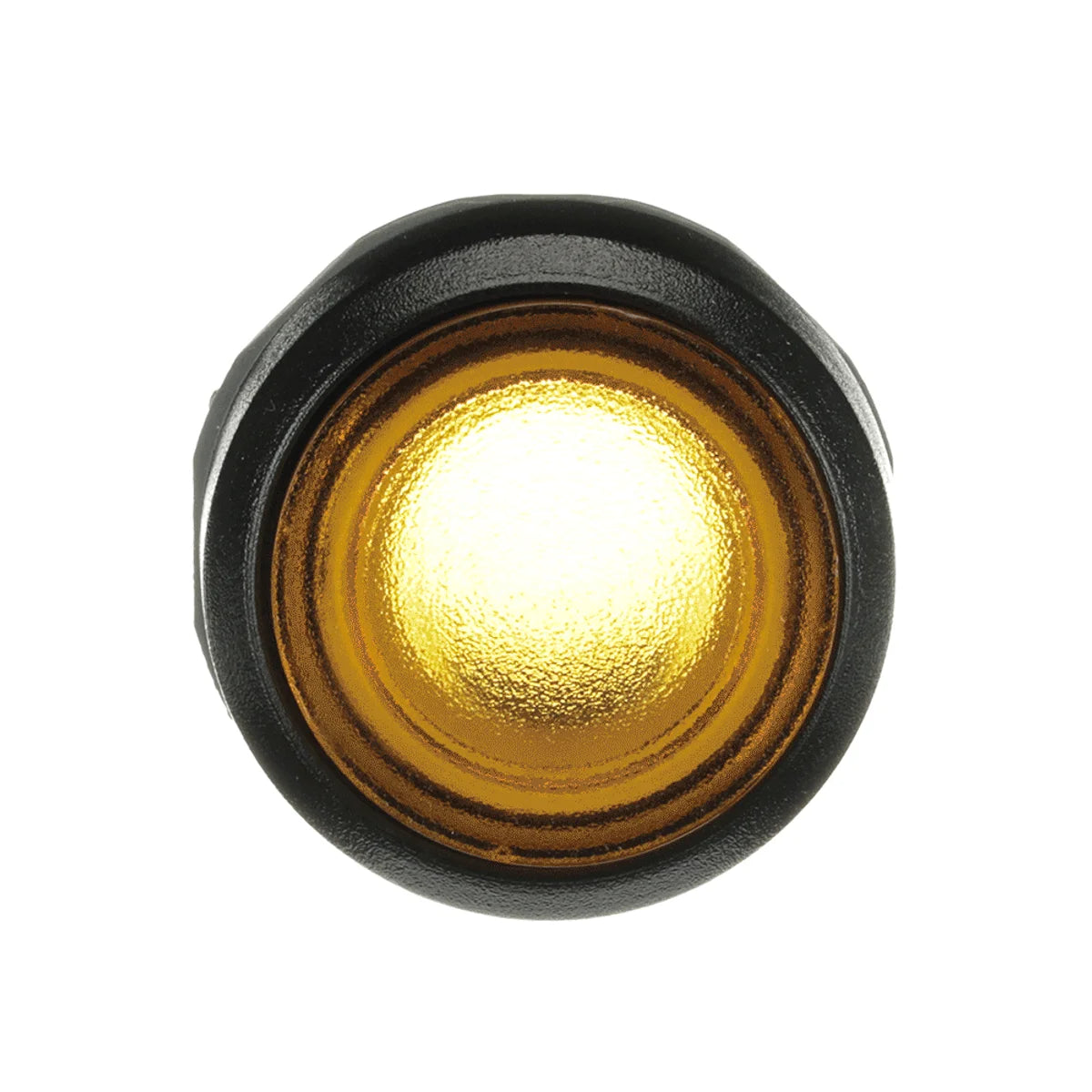

ABB 1SFA611100R1103 MP1-11Y Flush Mount 1NO+1NC Modular Plastic Pushbutton

Product Net Width
29 mm
Product Net Height
29 mm
Product Net Depth / Length
33 mm
Product Net Weight
0.011 kg
EAN
7320500261071
Description

About the MP1-11Y

The ABB MP1-11Y (SKU: 1SFA611100R1103) is a flush-mount pushbutton from the ABB Modular Plastic Range, designed for reliable operator control in industrial automation and control panel applications. The MP1-11Y features a 1NO+1NC contact configuration and a compact, lightweight construction weighing just 11 g, making it suitable for space-constrained panel installations.

Certifications & Standards

  • CE: Complies with European Union directives for health, safety, and environmental protection.
  • cULus: Listed by Underwriters Laboratories for use in both Canadian and US markets.
  • RoHS: Compliant with the Restriction of Hazardous Substances Directive, ensuring restricted use of hazardous materials.
  • REACH: Meets EU REACH regulation requirements for chemical substance management.
  • WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for proper end-of-life disposal.
  • CCC: China Compulsory Certification for sale and use in the Chinese market.
  • UKCA: UK Conformity Assessed marking for use in Great Britain post-Brexit.

Applications & Use Cases

  • Control panel operator interfaces in industrial automation systems
  • Machine tool start/stop control stations
  • Process control and manufacturing lines requiring momentary switching
  • Pendant control stations and operator workstations
  • General-purpose electrical control circuits in commercial and industrial environments
Specification

Full specification

42 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 29 mm
Product Net Height 29 mm
Product Net Depth / Length 33 mm
Product Net Weight 0.011 kg

Technical 7

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Yellow
Bezel Material Plastic
Illumination Illuminated
Function Momentary
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Mechanical Durability 2 million

Environmental 1

Degree of Protection Front IP66
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611100R1103
Type designation MP1-11Y
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500261071
eCl@ss 27371210
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Material Compliance 5

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE Category Product Not in WEEE Scope

External Classifications and Standards 5

ETIM 6 EC000221 - Front element for push button
ETIM 7 EC000221 - Front element for push button
eClass V11.0 : 27371210
UNSPSC 39122216
E-Number (Sweden) 3715203

Logistics 10

Package Level 1 Units bag 1 piece
Package Level 1 Width 135 mm
Package Level 1 Depth / Length 145 mm
Package Level 1 Height 35 mm
Package Level 1 Gross Weight 0.014 kg
Package Level 1 EAN 7320500261071
Shipping weight 0.014 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611100R1103

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
Quick answers

Questions about the MP1-11Y

What is the HS code of MP1-11Y for customs?

The tariff (HS) code on file for MP1-11Y is 8536508090.

What is the EAN of MP1-11Y?

The EAN (GTIN) of MP1-11Y is 7320500261071.

Where does MP1-11Y ship from, and how fast?

MP1-11Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
