- Part number
- 1SFA611100R1003
- Model no
- MP1-10Y
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Description
About the MP1-10Y
About the MP1-10Y

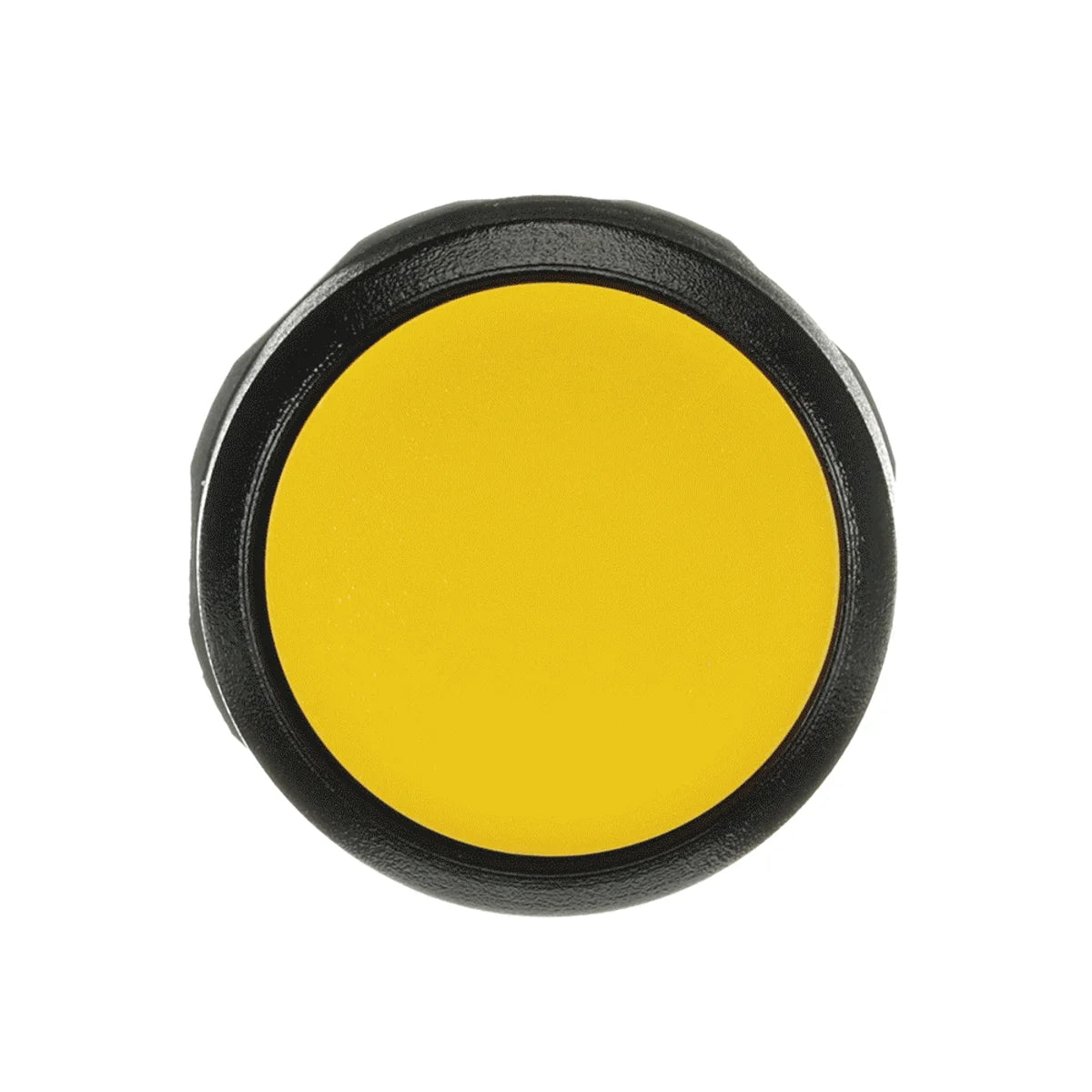

The ABB MP1-10Y (SKU: 1SFA611100R1003) is a flush-mount yellow pushbutton from ABB's Modular Plastic Range, designed for reliable operator control in industrial automation and control panel applications. Weighing just 11 g, the MP1-10Y offers a compact, lightweight solution for machine control, process automation, and panel-builder installations requiring a clearly identifiable yellow actuator.
Certifications & Standards
- CE: Complies with EU directives for safety and electromagnetic compatibility
- cULus: Listed by Underwriters Laboratories for Canada and the United States
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for proper end-of-life disposal
- CCC: China Compulsory Certification for the Chinese market
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
Applications & Use Cases
- Machine tool control panels requiring a compact flush-mount pushbutton
- Industrial automation systems where yellow actuator color denotes a specific function or warning
- Process plant operator stations and pendant control assemblies
- Panel builders integrating the ABB Modular Plastic Range for consistent aesthetics and modular flexibility
- OEM equipment requiring lightweight, certified pushbutton actuators
Specification
Full specification
Dimensions 4
| Product Net Width | 29 mm |
|---|---|
| Product Net Height | 29 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 0.011 kg |
Technical 7
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Yellow |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 2 million |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611100R1003 |
|---|---|
| Type designation | MP1-10Y |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500260999 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000221 - Front element for push button |
|---|---|
| ETIM 7 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3715003 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.014 kg |
| Package Level 1 EAN | 7320500260999 |
| Shipping weight | 0.014 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611100R1003
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MP1-10Y
What is the HS code of MP1-10Y for customs?
The tariff (HS) code on file for MP1-10Y is 8536508090.
What is the EAN of MP1-10Y?
The EAN (GTIN) of MP1-10Y is 7320500260999.
Where does MP1-10Y ship from, and how fast?
MP1-10Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB Modular Plastic Range
- Brand
- ABB
- Series
- Modular Plastic Range
