ABB 1SDA101433R1 XT7H M 1600 Ekip Dip LS/I In1600A 3p F F 1600A 3-Pole 100kA Fixed Moulded Case Circuit Breaker

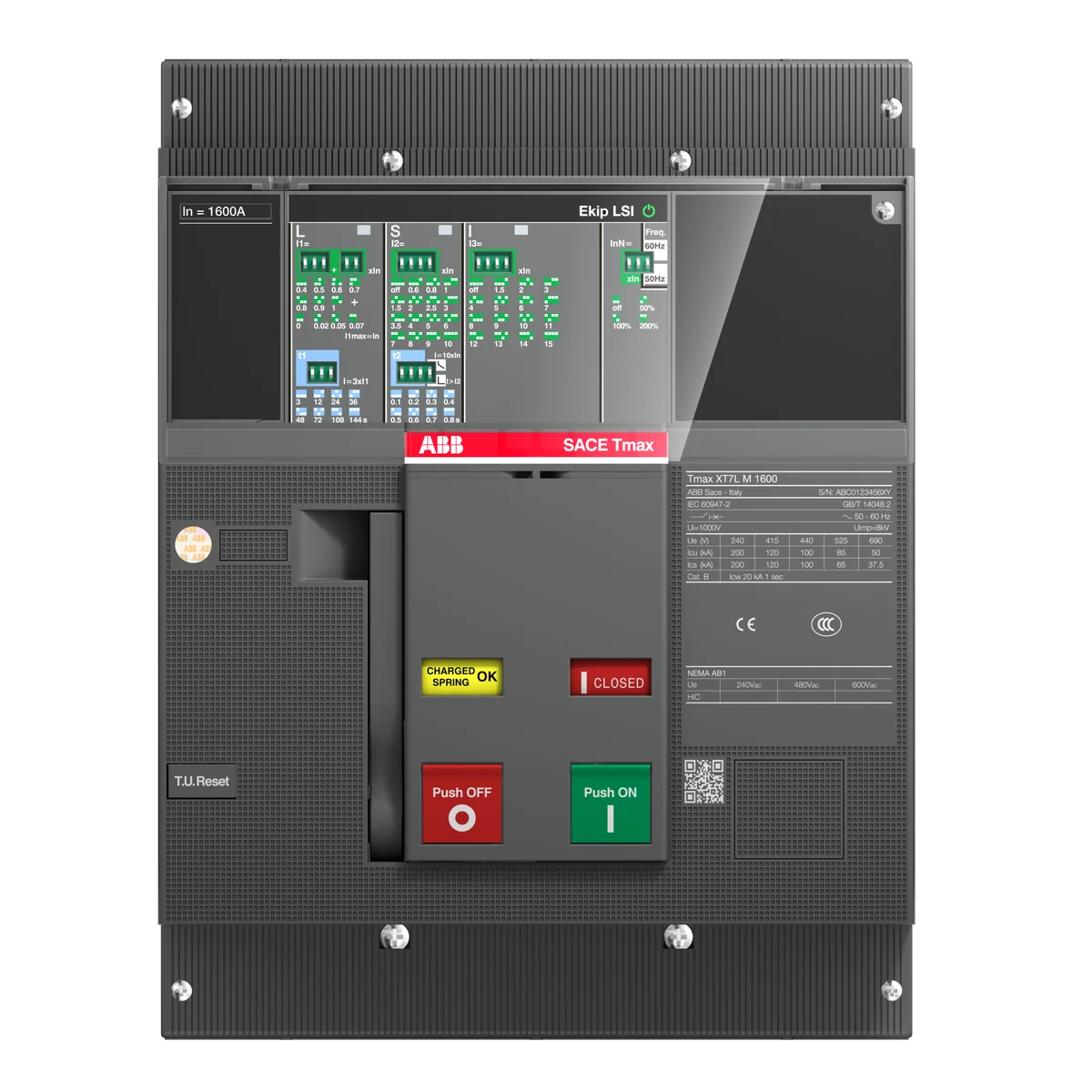

The ABB 1SDA101433R1 XT7H M 1600 Ekip Dip LS/I In1600A 3p F F is a 1600 A, 3-pole fixed-mount power circuit-breaker from the Tmax XT7 series, engineered for protection of transformers, generators, and distribution installations. Featuring the Ekip Dip LS/I electronic trip unit with long-time and instantaneous protection functions, this breaker delivers a breaking capacity of 100 kA at 220 V AC, making it suitable for demanding industrial power systems. Compact and robust, it fits within a 210 mm × 268 mm × 178 mm envelope and weighs just 11 kg.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Compliant with the international standard for low-voltage switchgear and controlgear — circuit-breakers
• CE: Meets European conformity requirements for safety, health, and environmental protection
• RoHS: Compliant with EU Directive 2011/65/EU on the restriction of hazardous substances in electrical and electronic equipment
• REACH: Compliant with EU Regulation (EC) No 1907/2006 on the registration, evaluation, authorisation and restriction of chemicals
• EU Directive 2011/65/EU: Restriction of Hazardous Substances (RoHS) Directive compliance confirmed
• Amendment 2015/863: Compliant with the updated RoHS substance restriction list under EU Delegated Directive 2015/863
• WEEE: Registered and compliant with EU Waste Electrical and Electronic Equipment Directive for end-of-life product management

Applications & Use Cases

• Transformer secondary-side overcurrent and short-circuit protection in MV/LV substations
• Generator protection in standby and prime power systems
• Main incomer and feeder protection in industrial distribution boards and switchgear panels
• High-fault-level installations requiring 100 kA breaking capacity at 220 V AC
• Fixed-mount configurations in draw-out or non-withdrawable switchgear assemblies
