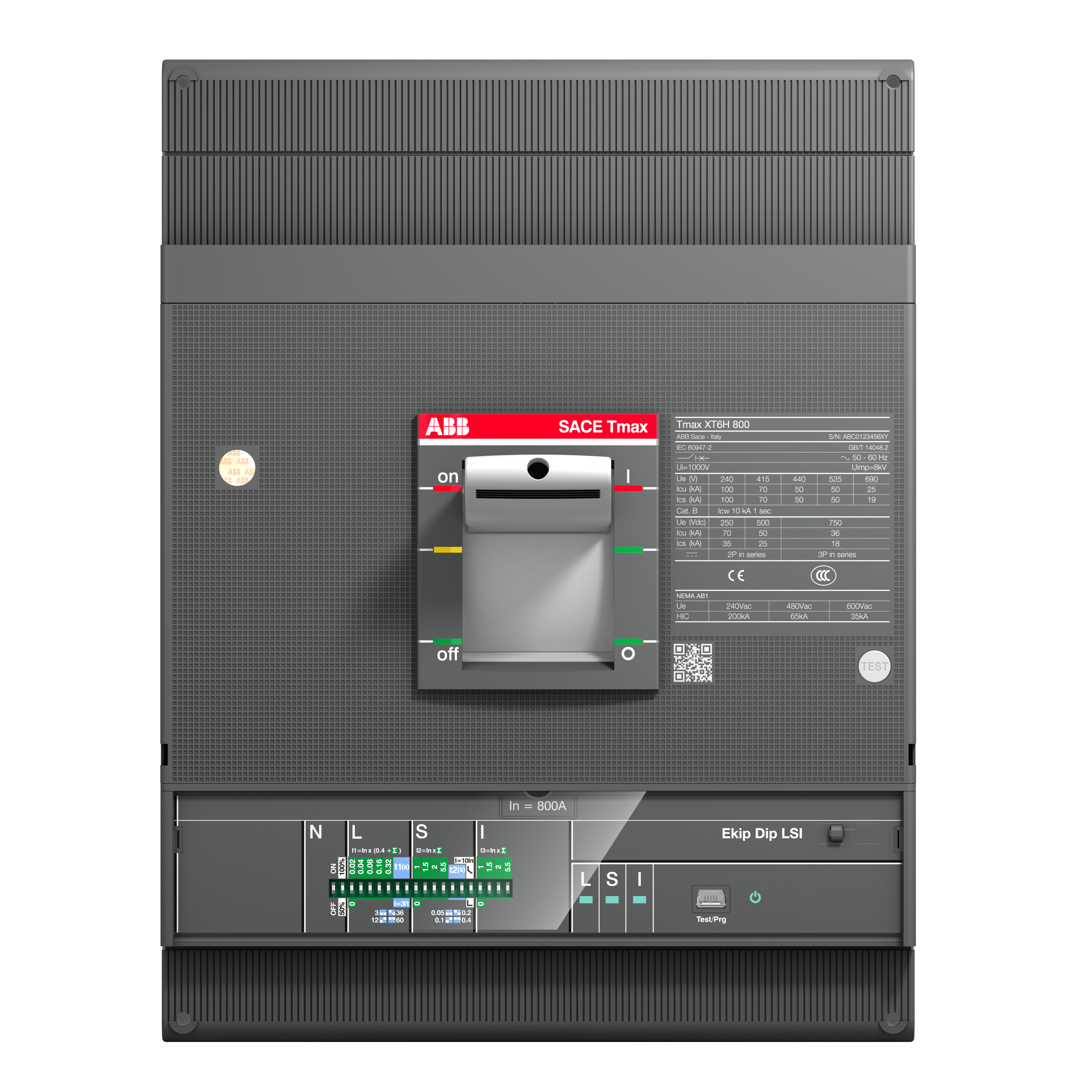

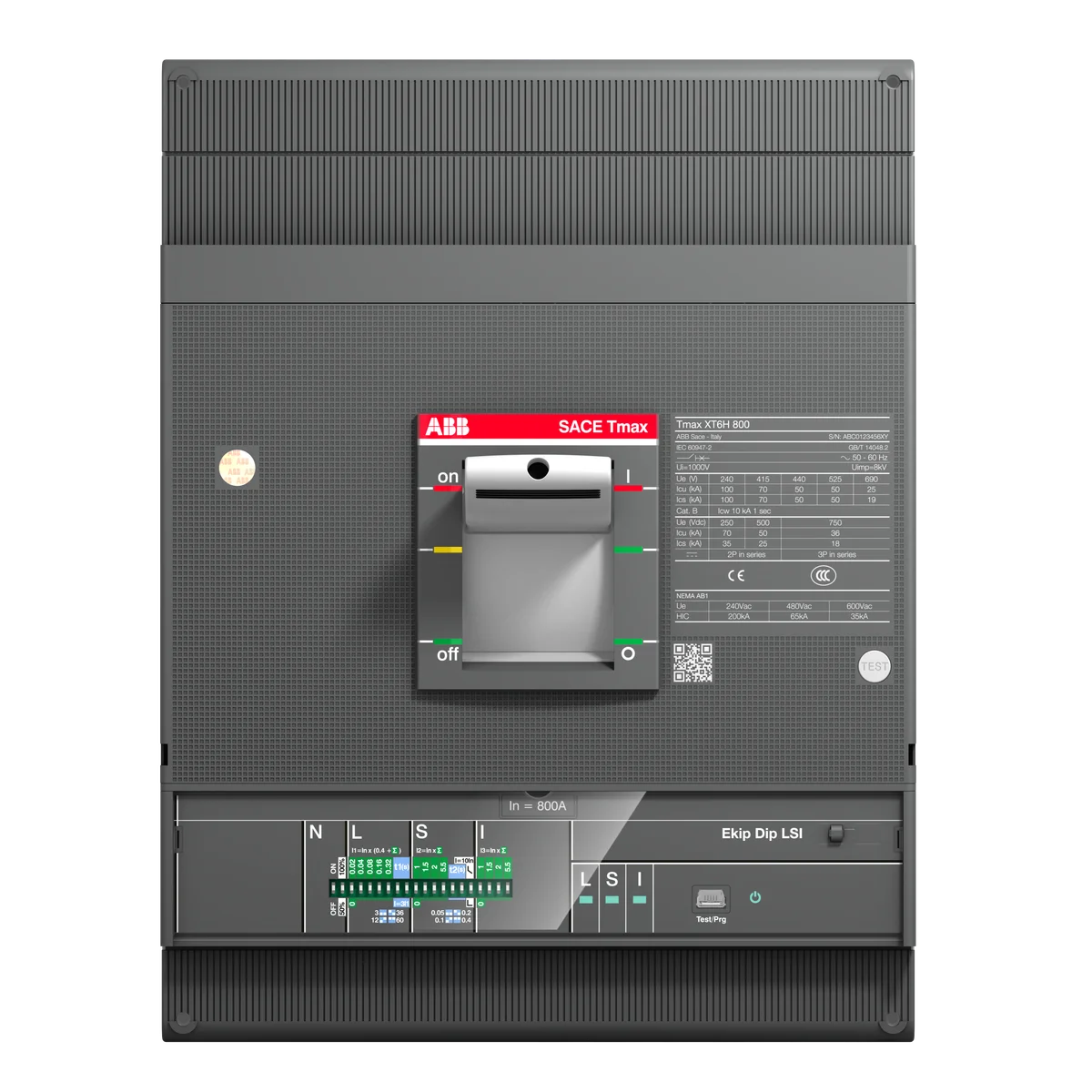

ABB 1SDA100763R1 XT6H 800 Ekip Dip LS/I In=800 3p F F 800A 3-Pole 100kA Fixed Moulded Case Circuit Breaker

The ABB 1SDA100763R1 XT6H 800 Ekip Dip LS/I In=800 3p F F is a high-performance fixed-mounted power circuit breaker from the Tmax XT6 series, rated at 800A with a breaking capacity of 100kA at 220V AC. Designed for demanding industrial environments, this 3-pole breaker provides reliable protection for transformers, generators, and distribution installations. Its Ekip Dip LS/I trip unit delivers precise long-time and instantaneous overcurrent protection, making it a trusted choice for engineers and procurement professionals worldwide.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Conformity requirements for electrical equipment
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment
• Amendment 2015/863: Updated RoHS substance restriction requirements
• IEC 60947-2: Meets international standard for low-voltage switchgear and controlgear — circuit breakers
• WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible disposal

Applications & Use Cases

• Transformer protection in industrial and commercial power distribution panels
• Generator protection in standby and prime power installations
• Main and sub-main distribution board protection in industrial facilities
• Installation protection in heavy manufacturing, utilities, and infrastructure projects
• Control panel integration requiring high breaking capacity in a compact fixed-mounted format
