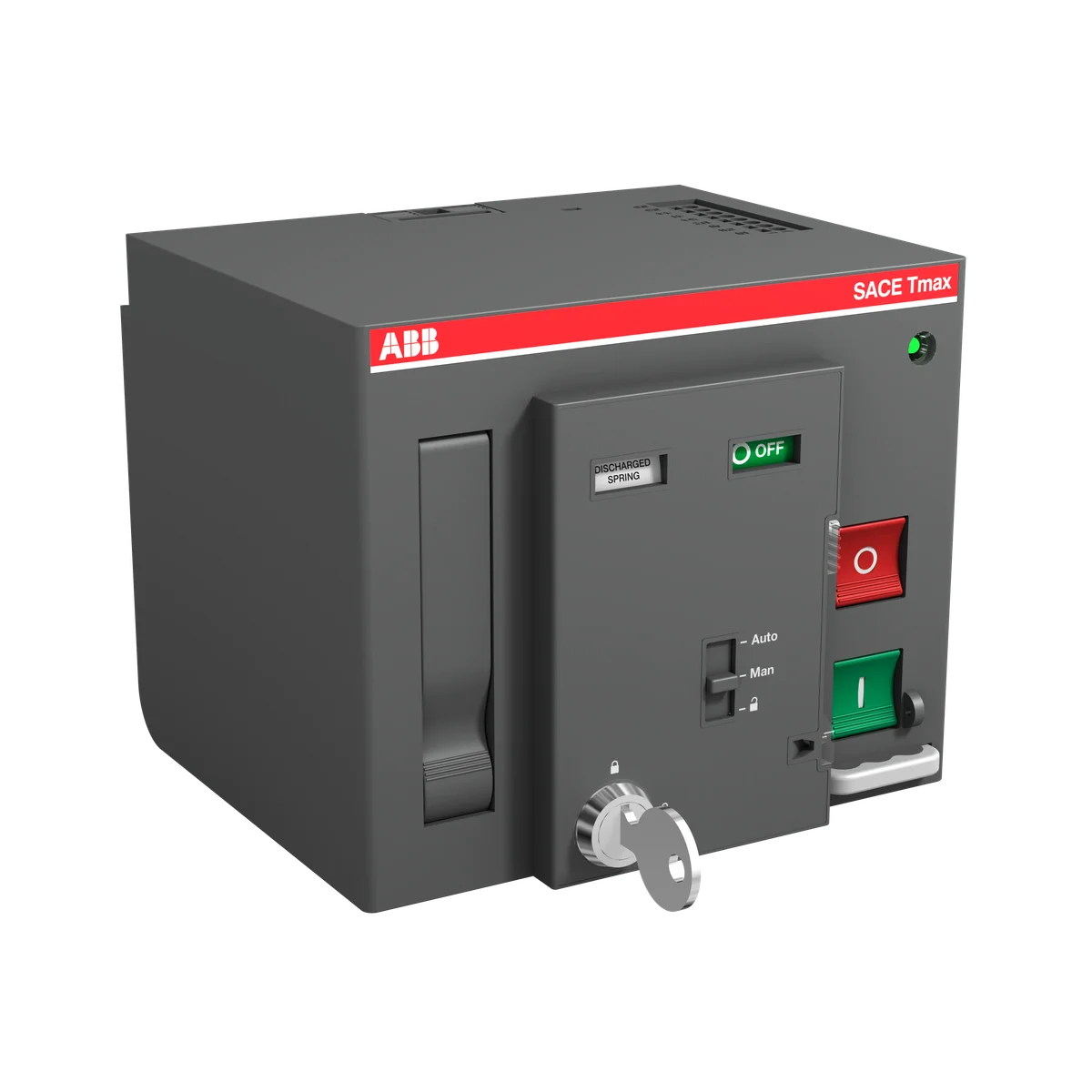

ABB 1SDA104905R1 MOE-E XT5 220...250V AC/DC Motor Operator

The ABB 1SDA104905R1 MOE-E XT5 220...250V AC/DC is a motor operator accessory designed for remote electrical actuation of ABB XT5 series moulded case circuit breakers. This motor operator enables automatic open/close control of the circuit breaker via a 220–250V AC/DC supply, making it ideal for integration into automated power distribution and control panel applications where manual operation is impractical or unsafe.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Union directives for electrical equipment
• RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
• IEC 60947-2: Meets international standard for low-voltage switchgear and controlgear — circuit breakers
• UL 489: Listed to UL standard for molded-case circuit breakers for North American markets

Applications & Use Cases

• Remote open/close actuation of ABB XT5 series moulded case circuit breakers
• Automated power distribution panels requiring motorised circuit breaker control
• Industrial automation systems with PLC or SCADA-driven switching sequences
• Building management systems for centralised electrical control
• Generator changeover and load management schemes

Frequently Asked Questions

What circuit breakers is the MOE-E XT5 220...250V AC/DC compatible with?

The MOE-E XT5 220...250V AC/DC is specifically designed as an accessory for ABB XT5 series moulded case circuit breakers. Always verify compatibility with the specific XT5 frame size and version before ordering.

What is the control supply voltage for this motor operator?

This motor operator is rated for a control supply of 220 to 250V, suitable for both AC and DC supplies, providing flexibility in panel design.

Is this product RoHS and CE compliant?

Yes. The ABB MOE-E XT5 220...250V AC/DC carries CE marking and is fully RoHS, REACH, and WEEE compliant, as well as certified to IEC 60947-2 and UL 489 standards.
