ABB 1SDA104959R1 YU-C XT5-XT6 F/P 380...440 Vac Undervoltage Release Circuit Breaker Accessory

% $-55.87

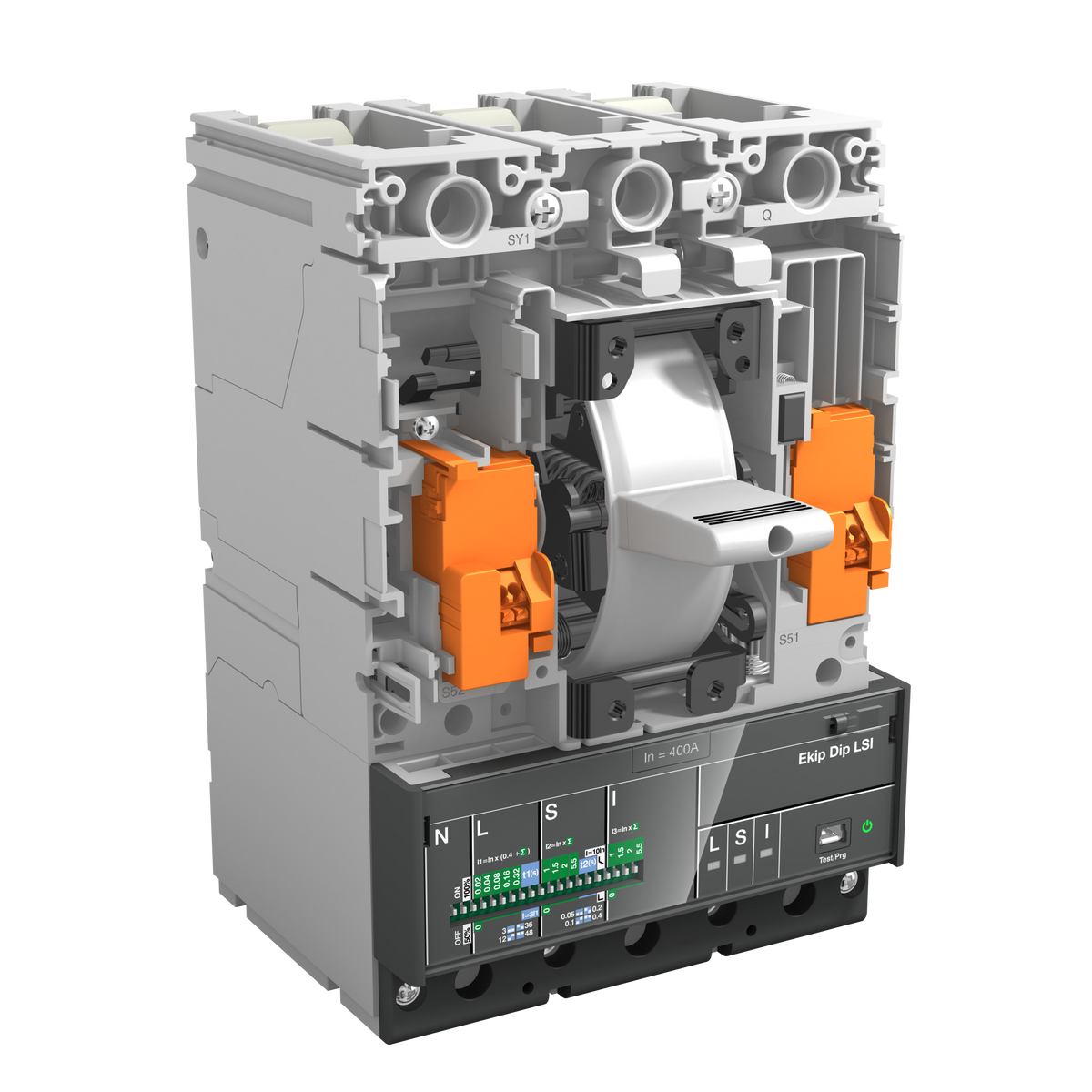

ABB 1SDA104959R1 YU-C XT5-XT6 undervoltage release accessory - fixed/plug-in
ABB 1SDA104959R1 YU-C XT5-XT6 undervoltage release accessory - fixed/plug-in

ABB 1SDA104959R1 YU-C XT5-XT6 F/P 380...440 Vac Undervoltage Release Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104959R1
Catalog No: YU-C XT5-XT6 F/P 380...440 Vac
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: Undervoltage Release (YU)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$55.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Built for fixed or plug-in Tmax XT5-XT6 molded case circuit breakers, the ABB 1SDA104959R1 (YU-C XT5-XT6 F/P) is a wired undervoltage release that trips the breaker automatically if the AC supply voltage collapses, preventing an unmonitored load from re-energizing on its own. Its coil is rated 380...440 V AC, and the part weighs 0.123 kg.

Technical Specifications

SKU 1SDA104959R1
Brand ABB
Series Accessories for Tmax XT
Extended Product Type YU-C XT5-XT6 F/P 380...440 Vac
EAN 8056221027236
Function Undervoltage Release, wired
Compatible Breaker Mounting Fixed / Plug-in (F/P), Tmax XT5-XT6
Rated Voltage (Ur) 380...440 V AC
Current Type AC
Configuration Type Loose or configurable
Net Weight 0.123 kg

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

The F/P designation fits this undervoltage release to fixed and plug-in Tmax XT5-XT6 breakers rather than the withdrawable (W) frame used by the other 380...440 V AC variant in this range. As with any YU release, it trips the breaker on loss of supply voltage, preventing an unmonitored load from re-energizing automatically once voltage is restored.

Technical Details

Short Description
ABB 1SDA104959R1 - YU-C undervoltage release, wired, for fixed/plug-in Tmax XT5-XT6 MCCB, 380-440V AC coil, 0.123 kg.
Catalog No
YU-C XT5-XT6 F/P 380...440 Vac
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
YU-C XT5-XT6 F/P 380...440 Vac
Tariff Code
853890
