ABB 1SDA072412R1 E2.2N 2500 Ekip Dip LSI 3p WMP 2500A 3P 66kA Withdrawable Power Circuit Breaker

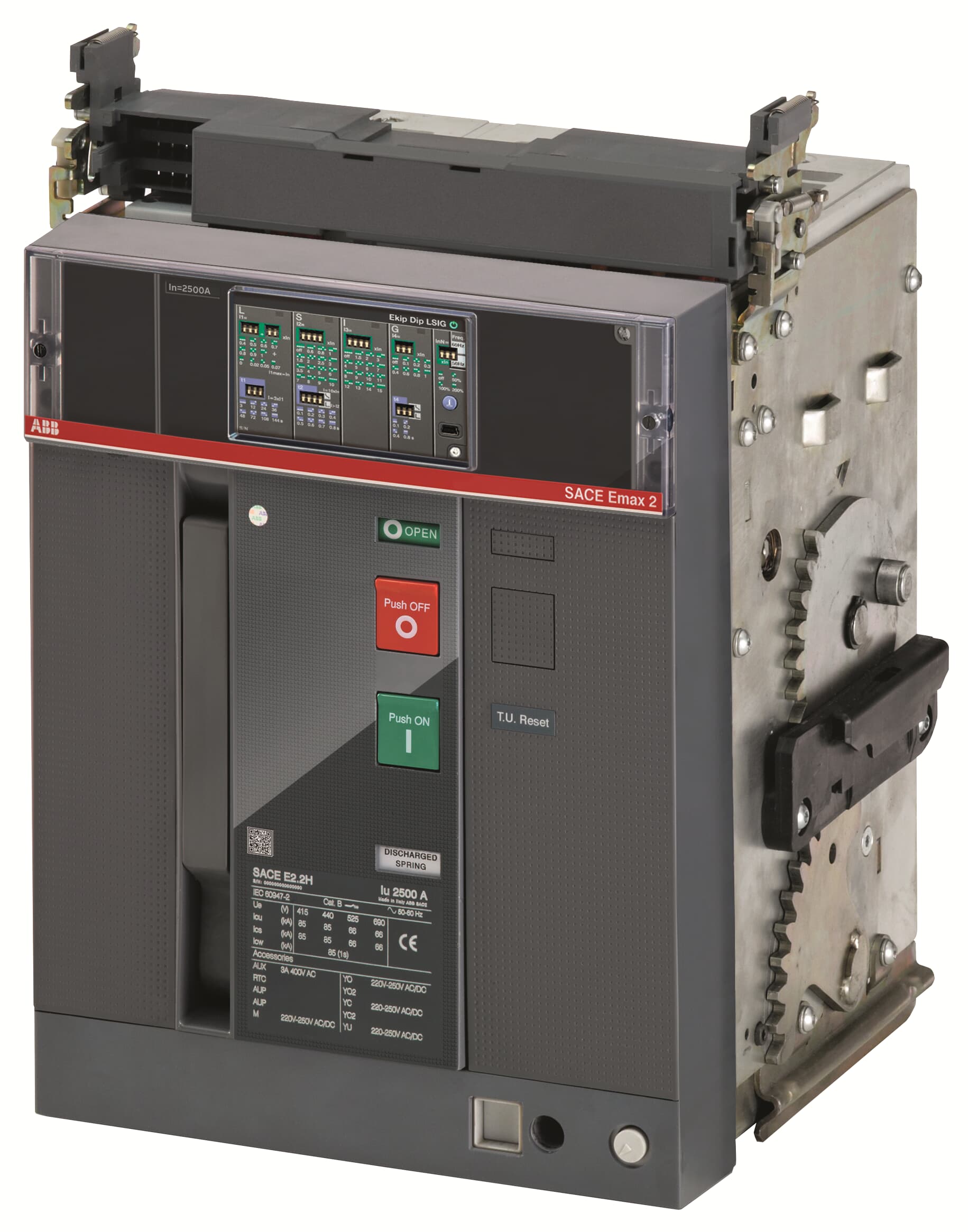

The ABB E2.2N 2500 Ekip Dip LSI 3p WMP (SKU: 1SDA072412R1) is a 2500A, 3-pole withdrawable power circuit breaker from the SACE Emax2 series, rated at 66 kA breaking capacity at 400 V AC. Designed for transformer, generator, and installation protection, the E2.2N 2500 Ekip Dip LSI 3p WMP combines the advanced Ekip Dip LSI electronic trip unit with a robust withdrawable (WMP) mounting configuration for flexible installation in medium and large power distribution panels.

Technical Specifications

Certifications & Standards

• CE: Compliant with European CE marking requirements for electrical equipment
• IEC: Designed and tested in accordance with IEC standards for power circuit breakers
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substance safety
• EU Directive 2011/65/EU: Full compliance with the RoHS recast directive
• Amendment 2015/863: Compliant with the updated restricted substances list under EU RoHS Amendment
• UL 2799: Certified to UL 2799 standard
• ATEX: Certified for use in potentially explosive atmospheres per ATEX directive
• CSA: Certified to Canadian Standards Association requirements
• VDE: Tested and certified by VDE (Verband der Elektrotechnik) to German/European standards
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for end-of-life recycling

Applications & Use Cases

• Transformer and generator protection in industrial power distribution systems
• Main incomer and bus-coupler duty in medium and large switchgear panels
• Installation protection for heavy industrial loads and infrastructure
• Withdrawable (WMP) configuration for ease of maintenance and replacement without de-energising adjacent circuits
• Applications requiring LSI (Long-time, Short-time, Instantaneous) protection characteristics via Ekip Dip trip unit
