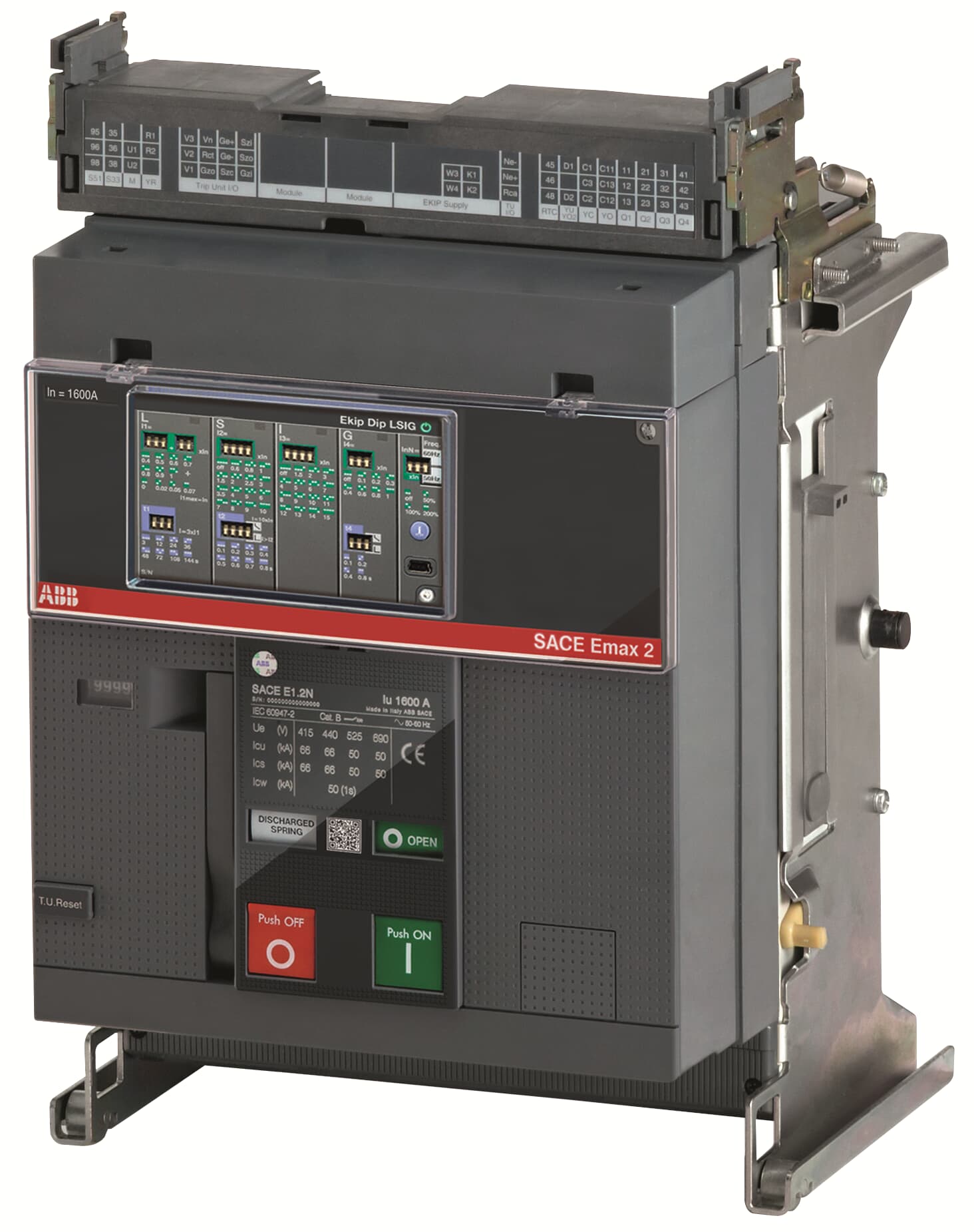

ABB 1SDA072152R1 E1.2N 1000 Ekip Dip LSI 3p WMP 1000A 3P 66kA Withdrawable Power Circuit Breaker

The ABB E1.2N 1000 Ekip Dip LSI 3p WMP (SKU: 1SDA072152R1) is a 1000 A, 3-pole withdrawable power circuit breaker from the SACE Emax2 E1.2 series, delivering a rated breaking capacity of 66 kA at 400 V AC. Designed for protection of transformers, generators, and power distribution installations, this air circuit breaker features the Ekip Dip LSI trip unit and a withdrawable moving part (WMP) mounting configuration for simplified maintenance and replacement in demanding industrial environments.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Conformity requirements for electrical equipment
• RoHS: EU Directive 2011/65/EU — restriction of hazardous substances in electrical and electronic equipment
• Amendment 2015/863: RoHS Annex II update covering additional restricted substances
• REACH: Compliance with EU Regulation (EC) No 1907/2006 on chemical substances
• IEC: Designed and tested in accordance with relevant IEC standards for circuit breakers
• EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
• UL 2799: Zero waste standard for electrical and electronic equipment
• ATEX: Compliant for use in potentially explosive atmospheres (where applicable)
• CSA: Canadian Standards Association certification for North American markets
• VDE: Verband der Elektrotechnik — German electrical engineering standard compliance
• WEEE: EU Waste Electrical and Electronic Equipment Directive compliance for end-of-life recycling

Applications & Use Cases

• Transformer primary and secondary protection in industrial power distribution panels
• Generator protection in standby and prime power systems
• Main incomer protection for large industrial installations and switchboards
• Bus-tie and feeder protection in medium to large distribution boards
• Retrofittable withdrawable installation for simplified serviceability and reduced downtime
