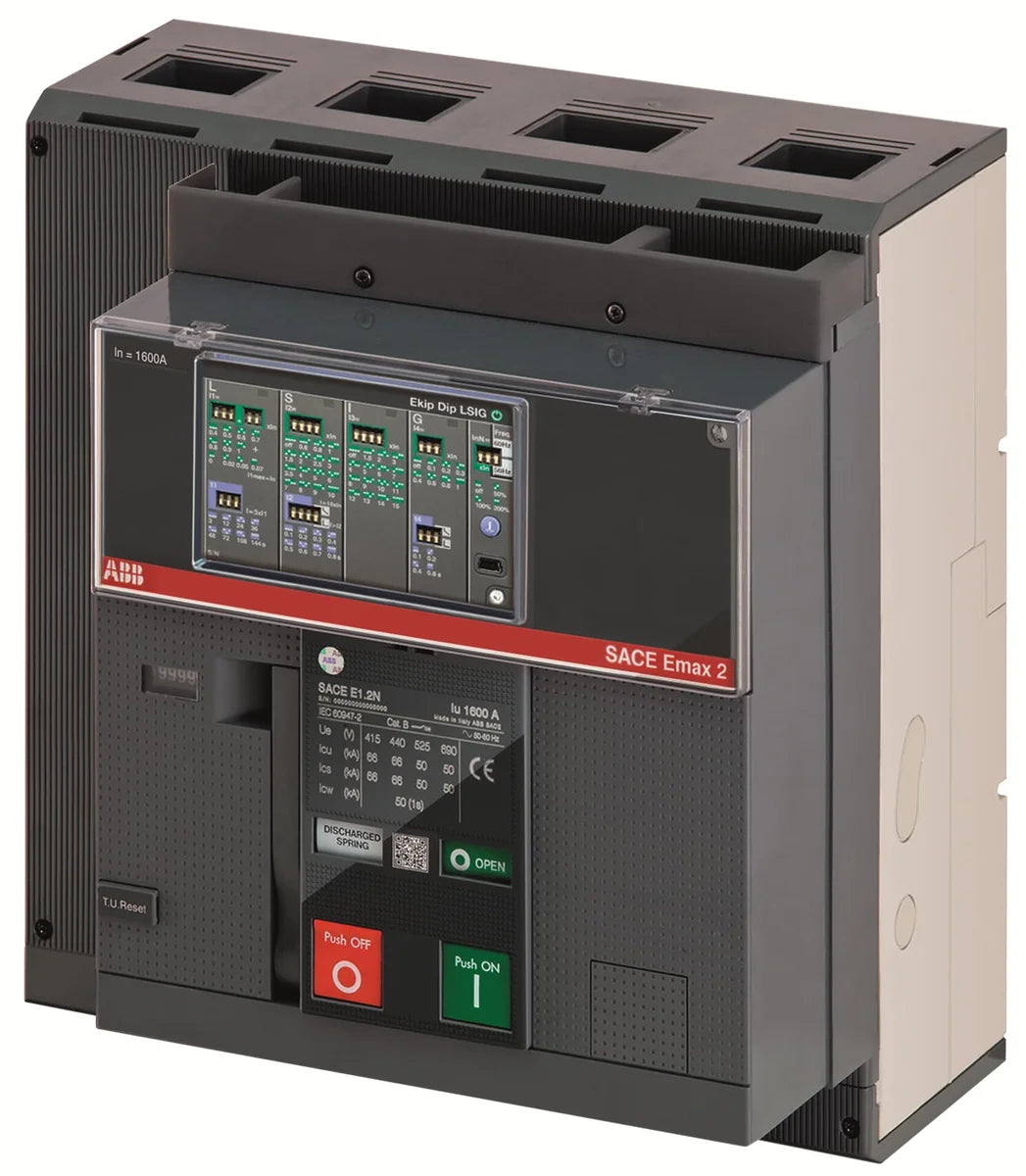

ABB 1SDA071501R1 E1.2C 1600 Ekip Dip LI 4p F F 1600A 4P 50kA Air Circuit Breaker

The ABB 1SDA071501R1 E1.2C 1600 Ekip Dip LI 4p F F is a 1600A, 4-pole fixed-mounted air circuit breaker from the SACE Emax2 E1.2 series, delivering a breaking capacity of 50 kA at 400V AC. Equipped with the Ekip Dip LI trip unit, this low-voltage ACB provides reliable overcurrent (L) and instantaneous short-circuit (I) protection for demanding power distribution applications. Its robust construction and comprehensive certification portfolio make it a premier choice for industrial switchgear panels and main distribution boards.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental requirements
• IEC: Designed and tested in accordance with IEC low-voltage switchgear standards
• UL 2799: Listed to UL 2799 for applicable North American markets
• ATEX: Suitable for use in explosive atmospheres per ATEX directive
• CSA: Certified by the Canadian Standards Association
• VDE: Tested and approved to VDE (Verband der Elektrotechnik) standards
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU: RoHS2 compliance covering hazardous substance restrictions
• Amendment 2015/863: Updated RoHS compliance per EU Amendment 2015/863
• WEEE: Meets EU Waste Electrical and Electronic Equipment directive requirements

Applications & Use Cases

• Main and sub-main distribution boards in industrial plants and commercial buildings
• Generator protection and incomer/feeder switching in low-voltage switchgear panels
• Power distribution in data centres, utilities, and infrastructure installations
• Bus coupler and tie-breaker duties in ring-main and dual-bus LV systems
• Applications requiring ATEX-rated interruption in hazardous area installations
