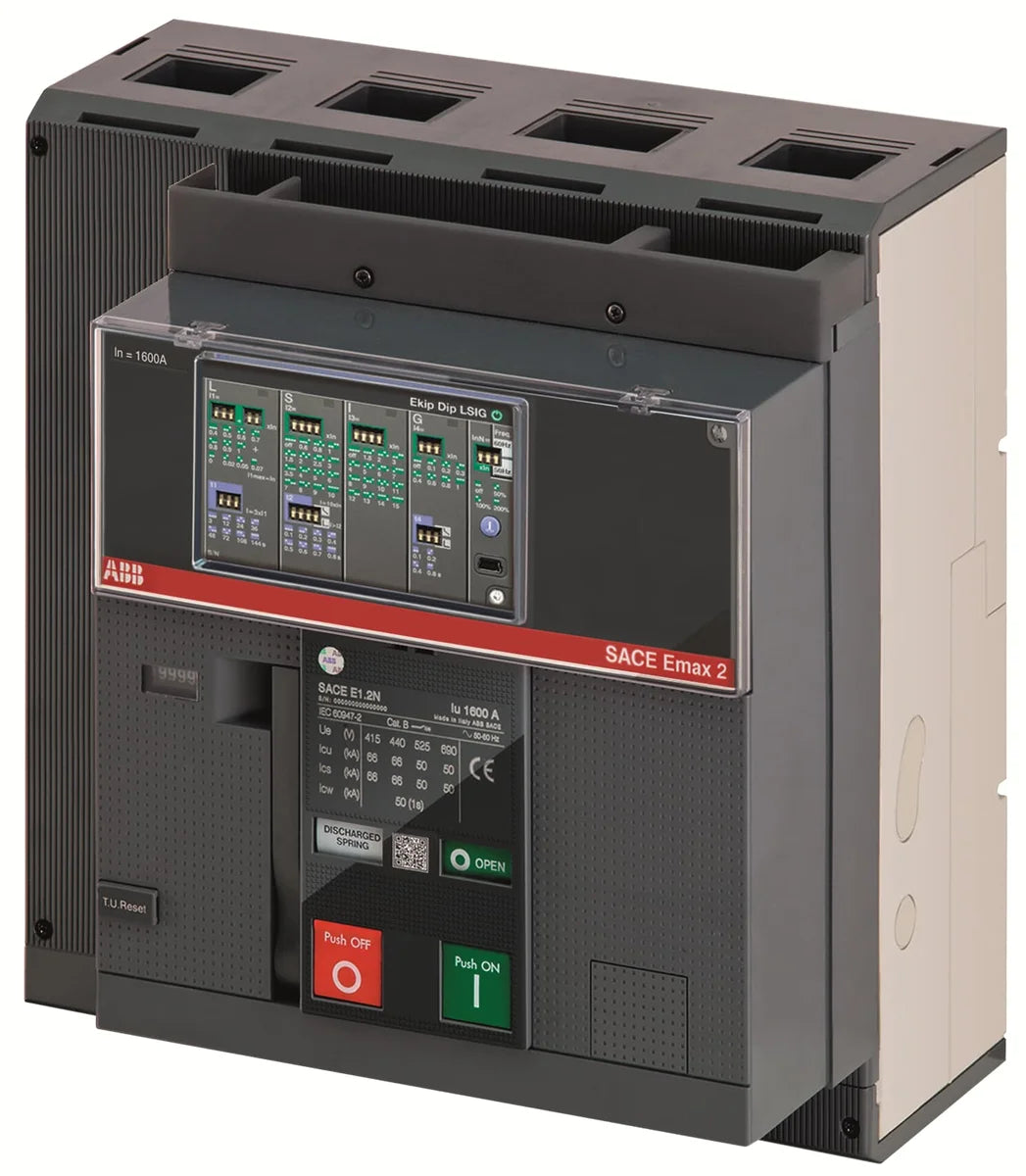

ABB 1SDA071421R1 E1.2C 1000 Ekip Dip LI 4p F F 1000A 4P 50kA Air Circuit Breaker

The ABB 1SDA071421R1 — catalog number E1.2C 1000 Ekip Dip LI 4p F F — is a 1000A, 4-pole, fixed-mounted air circuit breaker from the SACE Emax2 E1.2 series, delivering a breaking capacity of 50 kA at 400 V AC. Equipped with the Ekip Dip LI trip unit, the E1.2C 1000 Ekip Dip LI 4p F F provides reliable overcurrent and short-circuit protection for demanding low-voltage power distribution systems.

Technical Specifications

Certifications & Standards

• CE: Compliant with EU machinery and low-voltage directives
• IEC: Designed and tested in accordance with IEC standards
• IEC 60947: Meets IEC 60947 low-voltage switchgear and controlgear requirements
• UL 2799: UL-listed for applicable North American markets
• ATEX: Suitable for use in potentially explosive atmospheres per ATEX directive
• CSA: Certified to Canadian Standards Association requirements
• VDE: Tested and certified to VDE (German Institute for Electrical Engineering) standards
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU: RoHS recast directive compliance confirmed
• Amendment 2015/863: Compliant with the 2015/863 amendment expanding restricted substance lists
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life recycling

Applications & Use Cases

The E1.2C 1000 Ekip Dip LI 4p F F air circuit breaker is engineered for high-demand low-voltage power distribution applications. Its 1000 A rated current and 50 kA breaking capacity make it well-suited for main incomer and bus-coupler positions in industrial switchgear panels, commercial buildings, data centres, and infrastructure projects. The four-pole fixed configuration ensures protection across all live and neutral conductors, while the Ekip Dip LI trip unit provides configurable long-time and instantaneous protection functions. The ATEX rating further extends its suitability to hazardous-area installations where certified switchgear is mandatory.
