Part number
1SDA066681R1
$9.22 On request Dispatch — · From TürkiyeGet a Quote
ABB Tmax XT

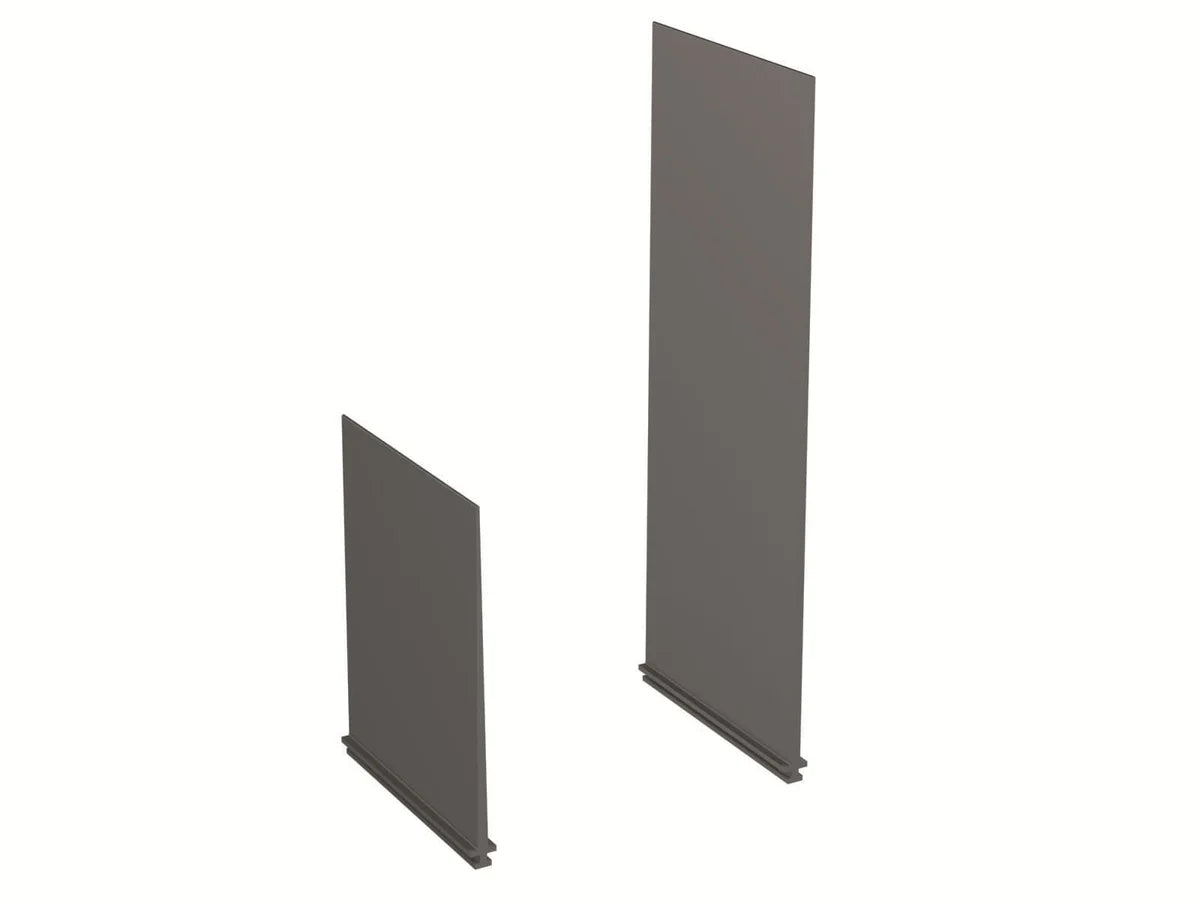

ABB 1SDA066681R1 PB 100mm 6pcs XT1-XT3 4p PAR.DIV.PH.LOW Kit Partitions / Phase Divider Accessory 4-Pole

Poles
4P
EAN
8015644693886
Description

About the 1SDA066681R1

The ABB 1SDA066681R1 PB 100mm 6pcs XT1-XT3 4p PAR.DIV.PH.LOW is a 4-pole phase divider partition kit designed as an accessory for ABB Tmax XT1, XT2, and XT3 series moulded case circuit breakers. Supplied as a set of 6 pieces with a 100 mm profile, this kit provides reliable phase separation within the breaker terminal area, improving electrical isolation and safety in control panels and distribution boards. Compact dimensions of 160 × 250 × 25 mm and a lightweight 0.124 kg make installation straightforward in both new and retrofit installations.

Certifications & Standards

  • CE: Conforms to applicable European Union directives for electrical equipment safety and electromagnetic compatibility.
  • RoHS: Compliant with EU Directive 2011/65/EU on the restriction of hazardous substances in electrical and electronic equipment.
  • REACH: Meets EU REACH regulation requirements for chemical substance safety in products.
  • EU Directive 2011/65/EU & Amendment 2015/863: Verified compliance with the updated restricted substances list under the RoHS recast directive.
  • IEC 60947-2: Designed for use with circuit breakers manufactured in accordance with this international standard for low-voltage switchgear and controlgear.
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal and recycling.

Applications & Use Cases

  • Phase separation and insulation between poles on ABB Tmax XT1, XT2, and XT3 4-pole moulded case circuit breakers.
  • Retrofit or new installation in industrial control panels, motor control centres, and main distribution boards.
  • Enhancing creepage and clearance distances at circuit breaker terminals in high-density switchgear assemblies.
  • Used by panel builders and OEMs requiring IEC 60947-2 compliant accessory solutions for ABB Tmax XT switchgear.
Specification

Full specification

35 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.124 kg

Additional Information 5

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For XT1, XT3
Suitable for Product Class SACE Tmax XT
Show all 35 specifications ↓ Show less ↑28 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA066681R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644693886
ETIM class EC002273
eCl@ss 27400614
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 4

Configuration Type Loose or configurable
Number of Poles 4P
Order Multiple 1 piece
Standards IEC60947-2

External Classifications and Standards 4

ETIM 10 EC002273 - Phase barrier plate
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27400614

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 160 mm
Package Level 1 Height 25 mm
Package Level 1 Depth / Length 250 mm
Package Level 1 Gross Weight 0.131 kg
Package Level 1 EAN 8015644693886
Shipping weight 0.124 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA066681R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
Quick answers

Questions about the 1SDA066681R1

What is the HS code of 1SDA066681R1 for customs?

The tariff (HS) code on file for 1SDA066681R1 is 85389099.

What is the EAN of 1SDA066681R1?

The EAN (GTIN) of 1SDA066681R1 is 8015644693886.

Where does 1SDA066681R1 ship from, and how fast?

1SDA066681R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
