Part number
1SDA066680R1
$9.22 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
ABB Tmax XT

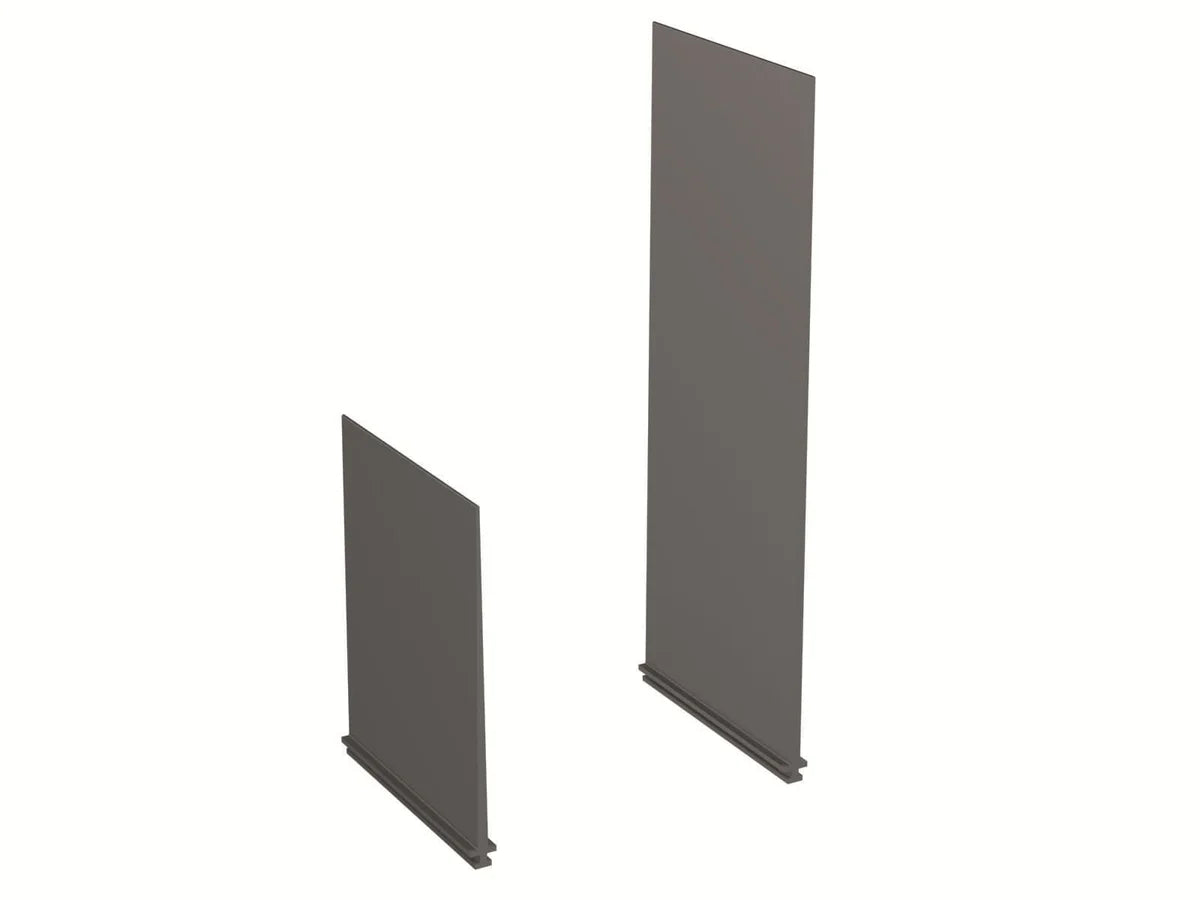

ABB 1SDA066680R1 PB 100mm 6pcs XT2-XT4 4p KIT PA.DI.PH.LO 4-Pole Phase Divider Partition Accessory Kit

Poles
4P
EAN
8015644005887
Description

About the 1SDA066680R1

The ABB 1SDA066680R1 PB 100mm 6pcs XT2-XT4 4p KIT PA.DI.PH.LO is a factory-supplied phase divider partition accessory kit designed for use with ABB Tmax XT2 and XT4 series 4-pole moulded case circuit breakers. This kit provides six insulating phase barrier partitions that separate live phases within the breaker terminal area, reducing the risk of arc flash and phase-to-phase faults in high-density panel installations. Compact and lightweight at 0.16 kg, it fits cleanly within the breaker's 160 × 250 × 25 mm envelope.

Certifications & Standards

  • CE: Conforms to applicable European Union directives for electrical equipment
  • RoHS: Compliant with Restriction of Hazardous Substances Directive 2011/65/EU and Amendment 2015/863
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
  • EU Directive 2011/65/EU & Amendment 2015/863: Verified compliance with EU RoHS recast and its 2015 amendment extending substance restrictions
  • IEC 60947-2: Designed in accordance with the international standard for low-voltage switchgear and controlgear — circuit breakers
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Phase separation and arc isolation within ABB Tmax XT2 and XT4 4-pole MCCB terminal compartments
  • Motor control centres (MCCs) and main distribution boards requiring enhanced phase segregation
  • Industrial control panels in manufacturing, process automation, and building services environments
  • Upgrade or replacement of worn partition barriers during scheduled maintenance of existing Tmax XT installations
Specification

Full specification

35 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.16 kg

Additional Information 5

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For XT2, XT4
Suitable for Product Class SACE Tmax XT
Show all 35 specifications ↓ Show less ↑28 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA066680R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644005887
ETIM class EC002273
eCl@ss 27400614
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 4

Configuration Type Loose or configurable
Number of Poles 4P
Order Multiple 1 piece
Standards IEC60947-2

External Classifications and Standards 4

ETIM 10 EC002273 - Phase barrier plate
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27400614

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 160 mm
Package Level 1 Height 25 mm
Package Level 1 Depth / Length 250 mm
Package Level 1 Gross Weight 0.168 kg
Package Level 1 EAN 8015644005887
Shipping weight 0.16 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA066680R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
Quick answers

Questions about the 1SDA066680R1

What is the HS code of 1SDA066680R1 for customs?

The tariff (HS) code on file for 1SDA066680R1 is 85389099.

What is the EAN of 1SDA066680R1?

The EAN (GTIN) of 1SDA066680R1 is 8015644005887.

Where does 1SDA066680R1 ship from, and how fast?

1SDA066680R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
