Part number
1SDA066676R1
$7.95 On request Dispatch — · From TürkiyeGet a Quote
ABB Tmax XT

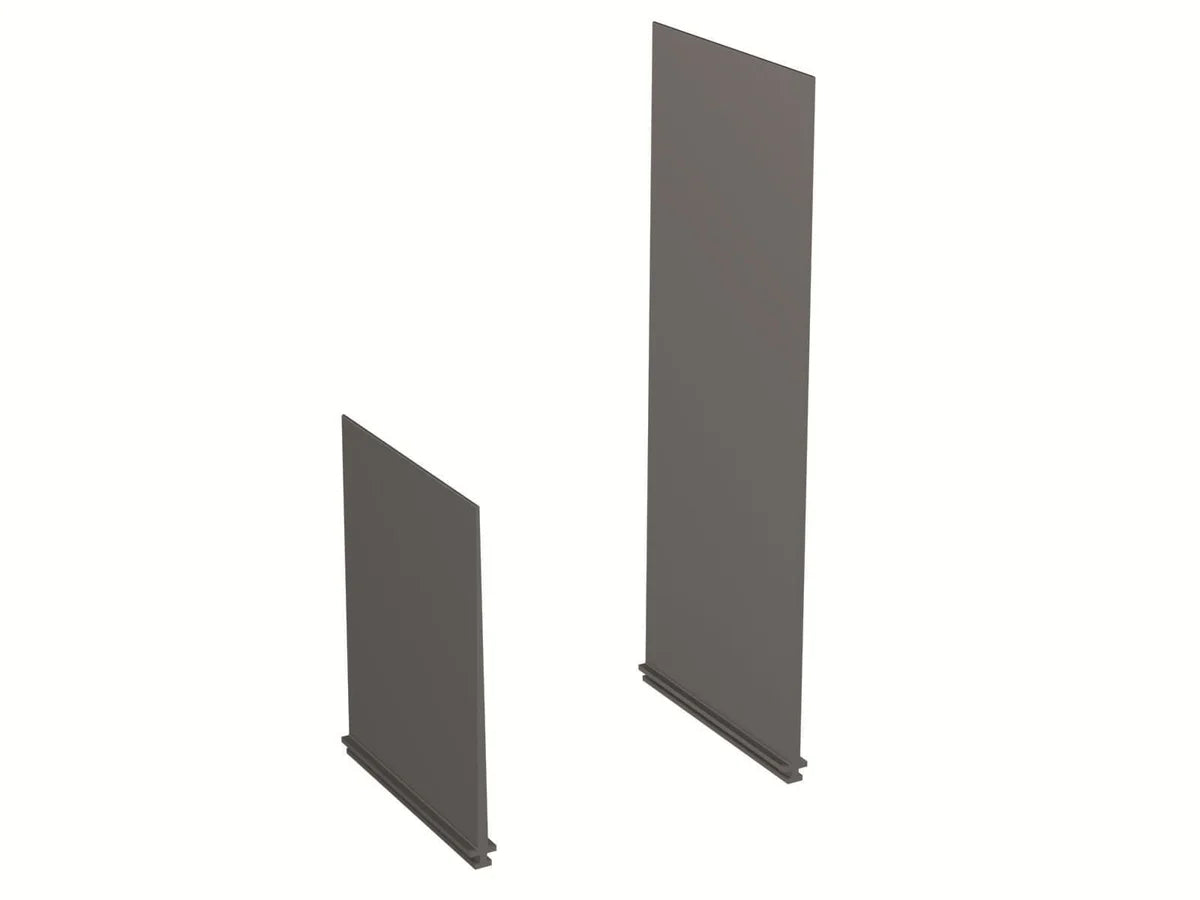

ABB 1SDA066676R1 PB 100mm 4pcs XT1-XT3 3p PAR.DIV.PH.LOW Accessory - Phase Partition Kit

Poles
3P
EAN
8015644005849
Description

About the 1SDA066676R1

The ABB 1SDA066676R1 PB 100mm 4pcs XT1-XT3 3p PAR.DIV.PH.LOW is a genuine ABB Tmax XT series phase partition kit designed for use with XT1, XT2, and XT3 three-pole moulded case circuit breakers. Supplied as a set of 4 pieces at 100 mm busbar pitch, this accessory provides reliable phase-to-phase isolation within distribution assemblies, ensuring safe and compliant busbar installations. Weighing just 0.086 kg, it is a compact and lightweight addition to any panel build.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements for electrical equipment
  • RoHS: Restriction of Hazardous Substances Directive — compliant with EU restrictions on hazardous materials in electrical and electronic equipment
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — compliant with EU REACH regulation on chemical substances
  • IEC 60947-2: Designed and tested in accordance with the international standard for low-voltage switchgear and controlgear — circuit breakers
  • WEEE: Waste Electrical and Electronic Equipment Directive — product is registered and compliant with EU end-of-life recycling obligations

Applications & Use Cases

  • Phase-to-phase isolation in busbar systems paired with ABB Tmax XT1, XT2, or XT3 3-pole circuit breakers
  • Industrial distribution boards and motor control centres (MCC) requiring IEC-compliant phase separation
  • Low-voltage switchgear assemblies where safe busbar spacing must be maintained at 100 mm pitch
  • Panel builders and OEMs building or maintaining ABB Tmax XT-based switchgear systems
Specification

Full specification

35 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.086 kg

Additional Information 5

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For XT1, XT3
Suitable for Product Class SACE Tmax XT
Show all 35 specifications ↓ Show less ↑28 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA066676R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644005849
ETIM class EC002273
eCl@ss 27400614
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 4

Configuration Type Loose or configurable
Number of Poles 3P
Order Multiple 1 piece
Standards IEC60947-2

External Classifications and Standards 4

ETIM 10 EC002273 - Phase barrier plate
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27400614

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 160 mm
Package Level 1 Height 20 mm
Package Level 1 Depth / Length 250 mm
Package Level 1 Gross Weight 0.09 kg
Package Level 1 EAN 8015644005849
Shipping weight 0.086 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA066676R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
Quick answers

Questions about the 1SDA066676R1

What is the HS code of 1SDA066676R1 for customs?

The tariff (HS) code on file for 1SDA066676R1 is 85389099.

What is the EAN of 1SDA066676R1?

The EAN (GTIN) of 1SDA066676R1 is 8015644005849.

Where does 1SDA066676R1 ship from, and how fast?

1SDA066676R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
