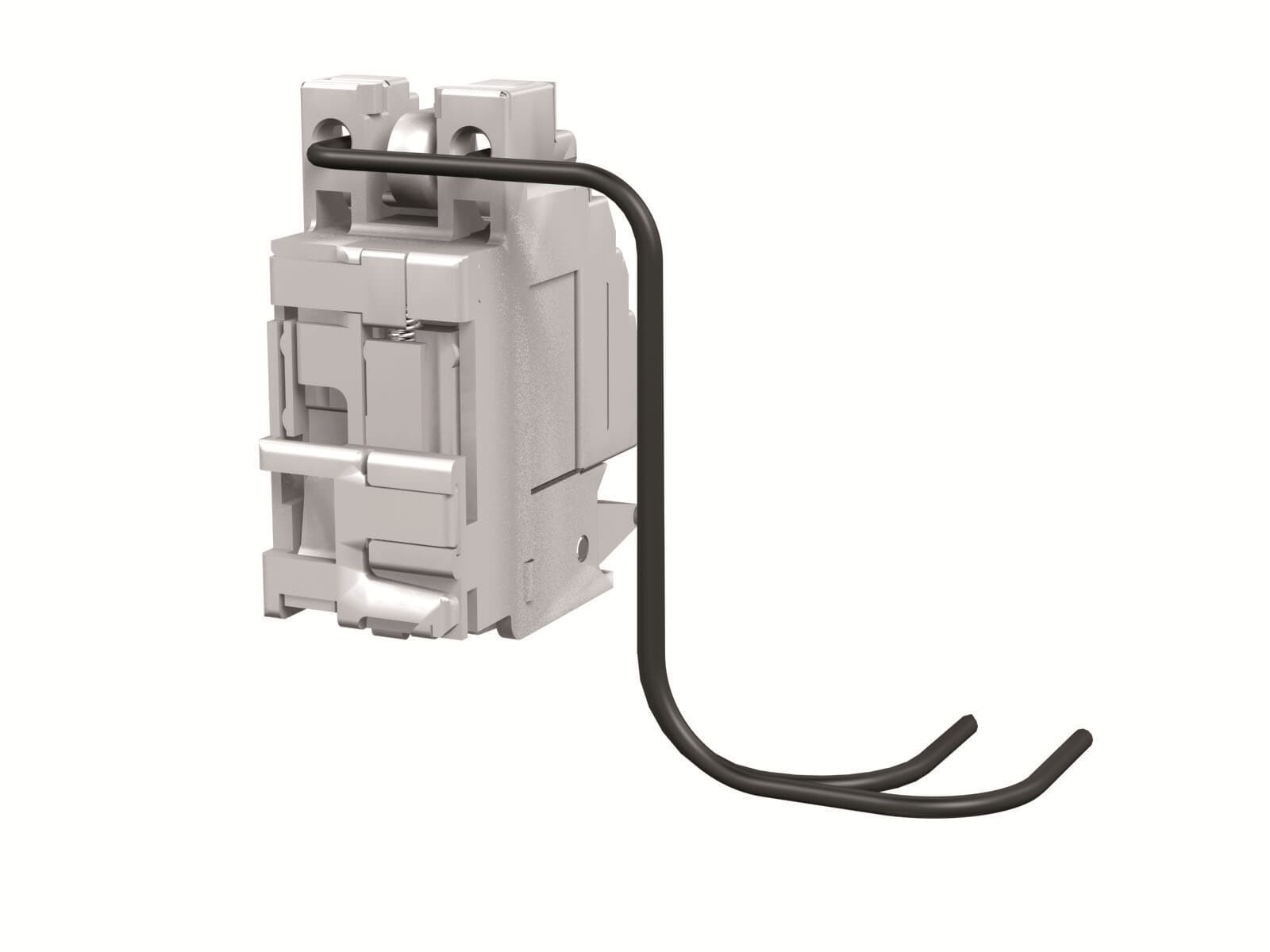

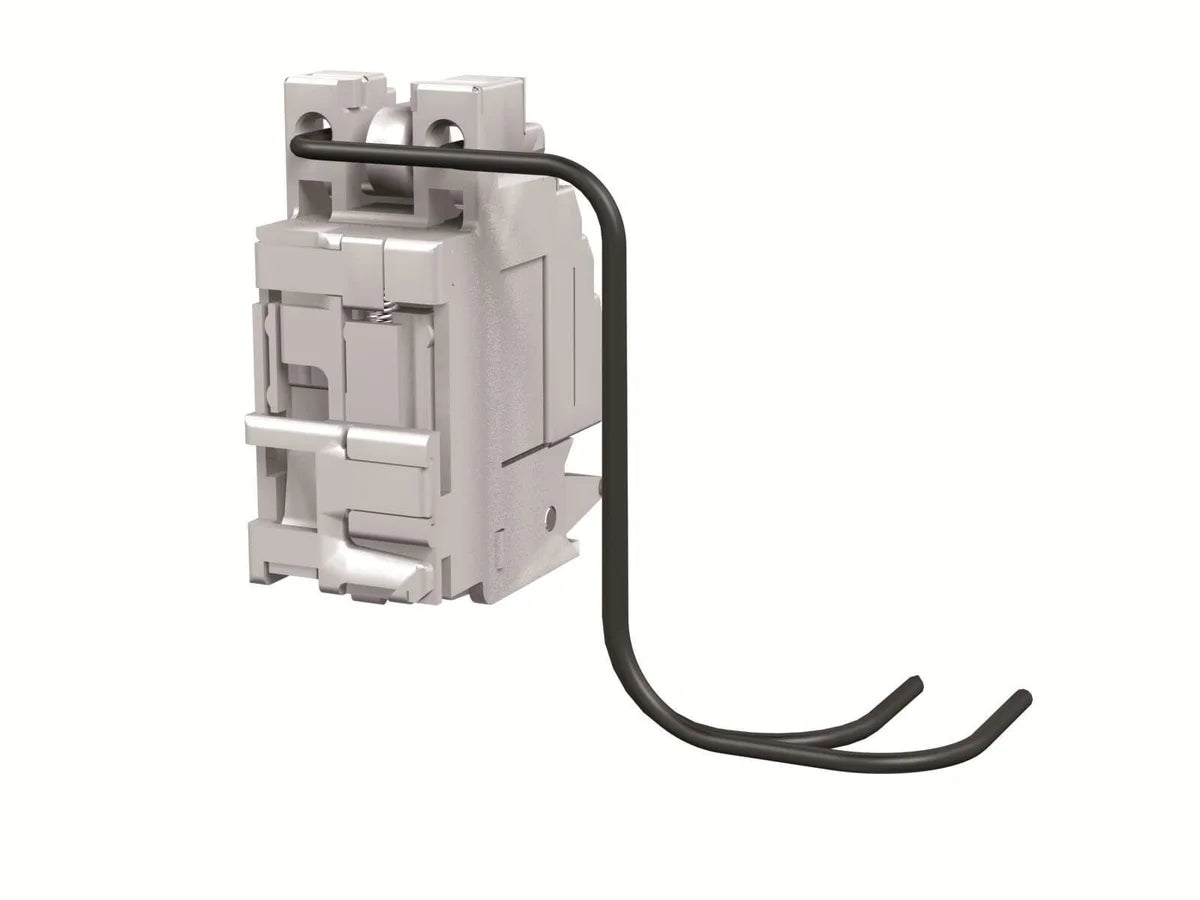

The ABB UVR-C XT2-XT4 W 220-240Vac-220-250Vdc (SKU: 1SDA066406R1) is a withdrawable undervoltage release accessory designed for use with ABB Tmax XT2 and XT4 series moulded case circuit breakers. Rated for 220–240 V AC and 220–250 V DC control supply, this compact 0.12 kg release trips the breaker automatically when the supply voltage drops below the set threshold, safeguarding motors, control panels, and critical industrial loads against the damaging effects of undervoltage conditions.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Weight | 0.12 kg |
|---|
| Product Main Type | Accessories for Tmax XT |
|---|---|
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Part number | 1SDA066406R1 |
|---|---|
| Type designation | UVR-C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644692582 |
| ETIM class | EC001022 |
| eCl@ss | 27370417 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Configuration Type | Loose or configurable |
|---|---|
| Current Type | AC/DC |
| Order Multiple | 1 piece |
| Rated Voltage (Ur) | 220 ... 240 V AC, 220 ... 250 V DC |
| Standards | IEC60947-2, UL489 |
| ETIM 10 | EC001022 - Under voltage coil |
|---|---|
| UNSPSC | 39121010 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370417 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.126 kg |
| Package Level 1 EAN | 8015644692582 |
| Shipping weight | 0.126 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for UVR-C is 85389099.
The EAN (GTIN) of UVR-C is 8015644692582.
UVR-C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
