Part number
1SDA060398R1
$1,525.04 On request Dispatch — · From TürkiyeGet a Quote
Tmax T6

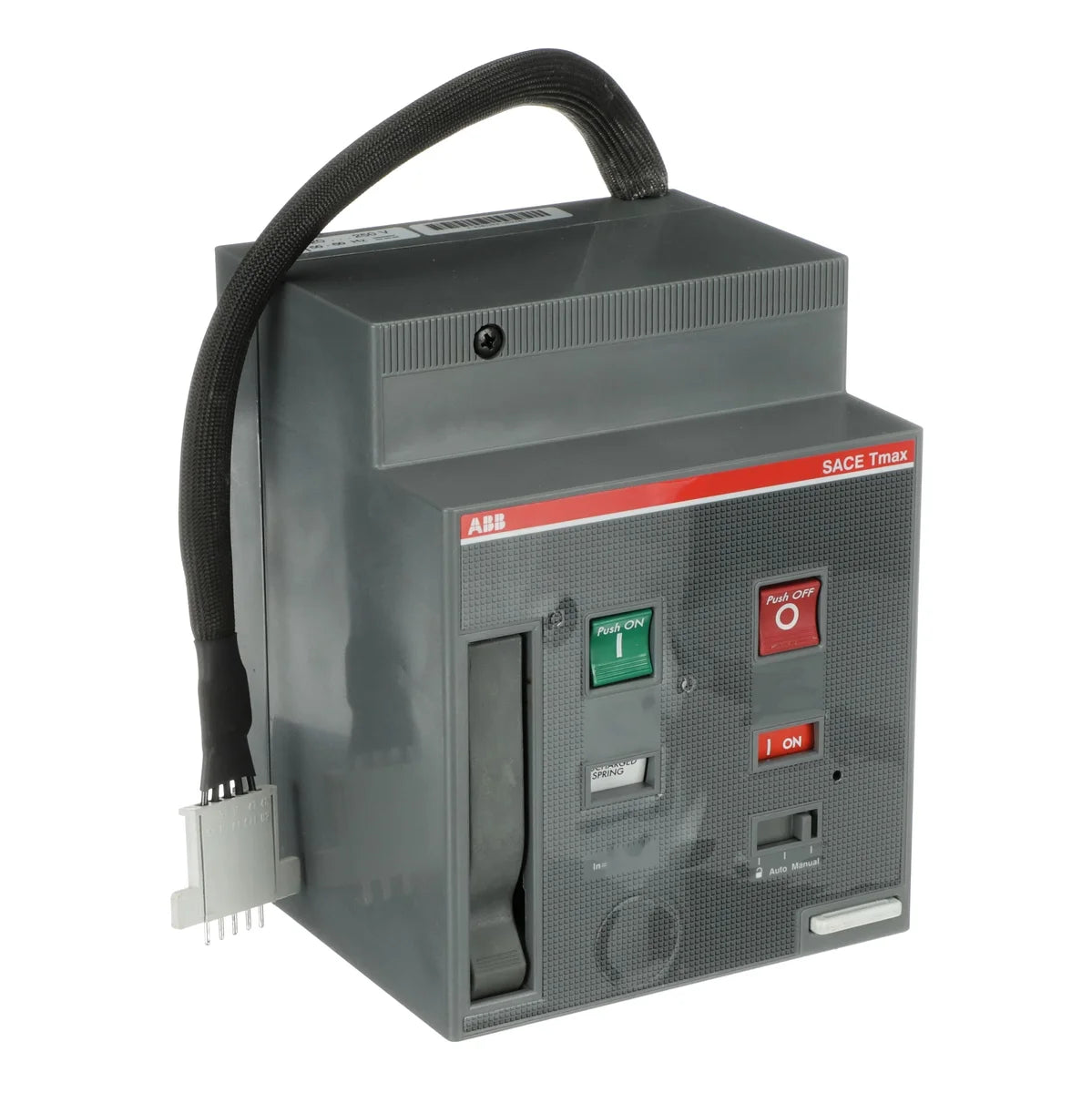

ABB 1SDA060398R1 MOE T6 220...250 Vac/dc Motor Operator Accessory for Tmax T6

Rated operational voltage
220–250–DC V DC
EAN
8015644628727
Description

About the 1SDA060398R1

The ABB MOE T6 220...250 Vac/dc (SKU: 1SDA060398R1) is a motor operator accessory designed for remote electrical actuation of ABB Tmax T6 moulded case circuit breakers. This motor operator enables automated open/close switching of the T6 breaker via a 220–250 V AC/DC control voltage, making it an essential component for remotely operated distribution panels and automated protection systems.

Certifications & Standards

  • CE: Conforms to applicable European Union directives for electrical equipment
  • RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical and electronic equipment
  • REACH: Compliant with EU REACH regulation (EC No. 1907/2006) on chemical substances
  • EU Directive 2011/65/EU: RoHS recast directive compliance verified
  • Amendment 2015/863: Updated RoHS annex II substance restrictions met
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life recycling

Applications & Use Cases

The MOE T6 220...250 Vac/dc motor operator is used wherever remote or automated switching of Tmax T6 circuit breakers is required. Typical applications include:

  • Remote-controlled main distribution boards in industrial facilities
  • Building management and energy management systems requiring automated load switching
  • Generator changeover and automatic transfer switch (ATS) schemes
  • Control panels where manual access to the breaker is impractical or unsafe
  • SCADA and PLC-integrated power distribution automation
Specification

Full specification

35 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 3.337 kg

Additional Information 5

Product Main Type Accessories for Tmax T
Product Name Accessory
Product Type Accessory
Suitable For T6
Suitable for Product Class SACE Tmax T
Show all 35 specifications ↓ Show less ↑28 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA060398R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644628727
ETIM class EC001030
eCl@ss 27370412
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 4

Configuration Type Loose or configurable
Current Type AC/DC
Rated Voltage (Ur) 220 ... 250 V AC, 220 ... 250 V DC
Standards IEC

External Classifications and Standards 4

ETIM 10 EC001030 - Motor operator for power circuit-breaker
UNSPSC 39121601
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370412

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 153 mm
Package Level 1 Height 189 mm
Package Level 1 Depth / Length 158 mm
Package Level 1 Gross Weight 3.53 kg
Package Level 1 EAN 8015644628727
Shipping weight 3.337 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA060398R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC
Quick answers

Questions about the 1SDA060398R1

Which supply voltage is 1SDA060398R1 rated for?

The rated operational voltage of 1SDA060398R1 is 220–250–DC V DC.

What is the HS code of 1SDA060398R1 for customs?

The tariff (HS) code on file for 1SDA060398R1 is 85389099.

What is the EAN of 1SDA060398R1?

The EAN (GTIN) of 1SDA060398R1 is 8015644628727.

Where does 1SDA060398R1 ship from, and how fast?

1SDA060398R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
