- Part number
- 1SDA054873R1
- Model no
- SOR-C
- CE
- RoHS

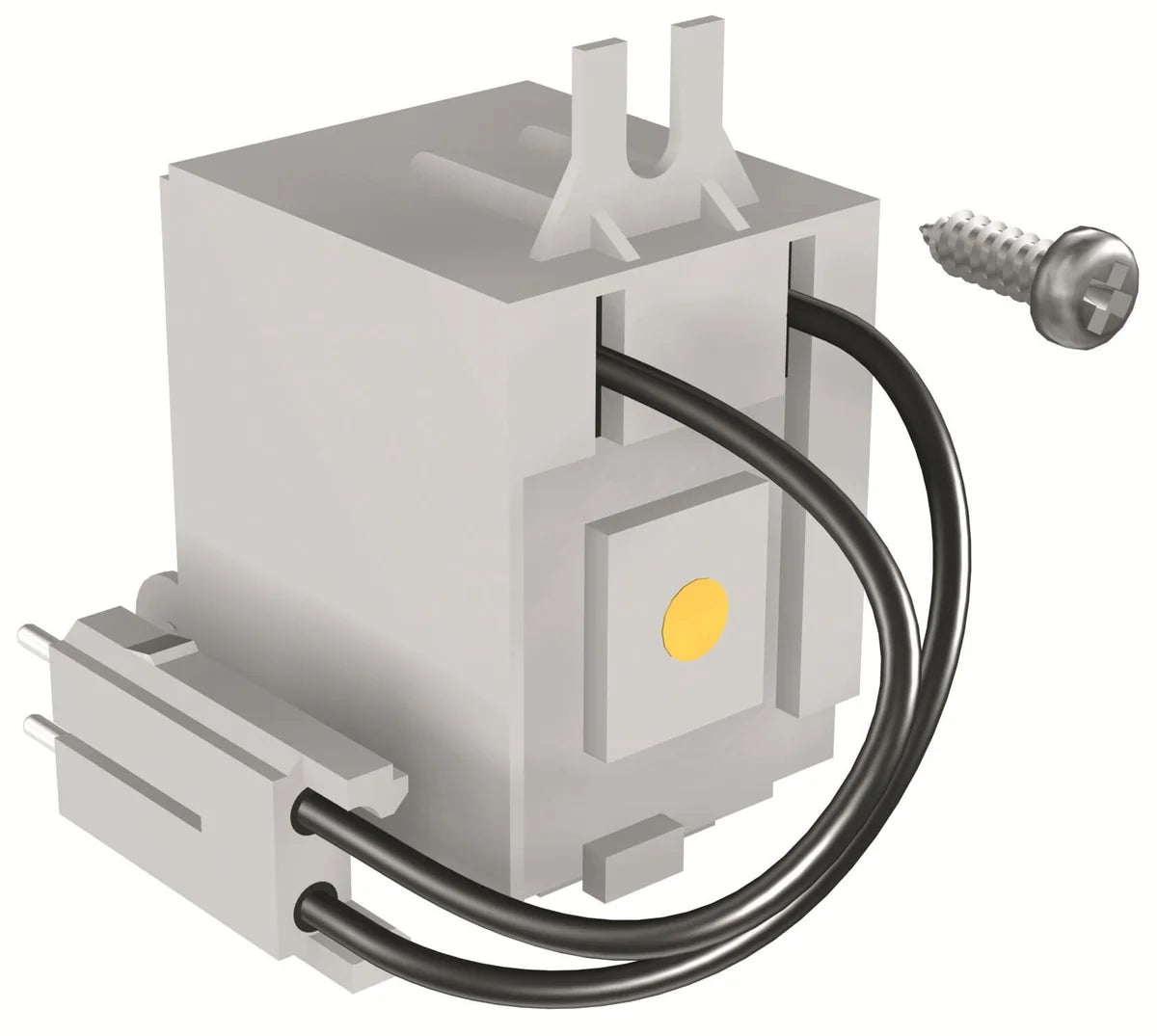

Tmax T / Formula DSAABB 1SDA054873R1 SOR-C T4-T5-T6 220..240Vac - 220..250Vdc Shunt Opening Release Accessory for Moulded Case Circuit Breaker
Description
About the SOR-C
About the SOR-C
The ABB 1SDA054873R1 SOR-C T4-T5-T6 220..240Vac - 220..250Vdc is a shunt opening release accessory designed for ABB Tmax T4, T5, and T6 moulded case circuit breakers. This accessory enables remote tripping of the circuit breaker upon application of a control voltage in the 220–240 V AC or 220–250 V DC range, making it an essential component for automated protection and interlocking schemes in industrial control panels. Supplied as part of the Formula DSA / Tmax T series, the SOR-C T4-T5-T6 220..240Vac - 220..250Vdc integrates directly into the breaker body without modifying its rated performance.
Certifications & Standards
- CE: Conforms to applicable European Union directives for electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- REACH: Compliant with EU REACH regulation on chemicals safety
- EU Directive Amendment: Compliant with Amendment 2015/863 dated July 22, 2019 to Directive 2011/65/EU
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
Applications & Use Cases
- Remote tripping of ABB Tmax T4, T5, and T6 moulded case circuit breakers from a control system or protection relay
- Emergency shutdown and interlocking schemes in industrial switchgear panels
- Building management and fire suppression system integration requiring automatic circuit disconnection
- Process automation systems where PLC or SCADA-triggered breaker opening is required
- Generator and transformer protection circuits demanding fast remote trip capability
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 1
| Product Net Weight | 0.369 kg |
|---|
Additional Information 5
| Product Main Type | Accessories for Tmax T |
|---|---|
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5, T6 |
| Suitable for Product Class | SACE Tmax T |
Show all 37 specifications ↓ Show less ↑30 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SDA054873R1 |
|---|---|
| Type designation | SOR-C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644560010 |
| ETIM class | EC002483 |
| eCl@ss | 27370421 |
| E-Number (Sweden) | 3180968 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 4
| Configuration Type | Loose or configurable |
|---|---|
| Current Type | AC/DC |
| Rated Voltage (Ur) | 220 ... 240 V AC, 220 ... 250 V DC |
| Standards | IEC |
External Classifications and Standards 4
| ETIM 10 | EC002483 - Switch spool for power circuit breaker |
|---|---|
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370421 |
Logistics 10
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Depth / Length | 188 mm |
| Package Level 1 Gross Weight | 0.388 kg |
| Package Level 1 EAN | 8015644560010 |
| Shipping weight | 0.388 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA054873R1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- IEC
Quick answers
Questions about the SOR-C
What is the HS code of SOR-C for customs?
The tariff (HS) code on file for SOR-C is 85362090.
What is the EAN of SOR-C?
The EAN (GTIN) of SOR-C is 8015644560010.
Where does SOR-C ship from, and how fast?
SOR-C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
