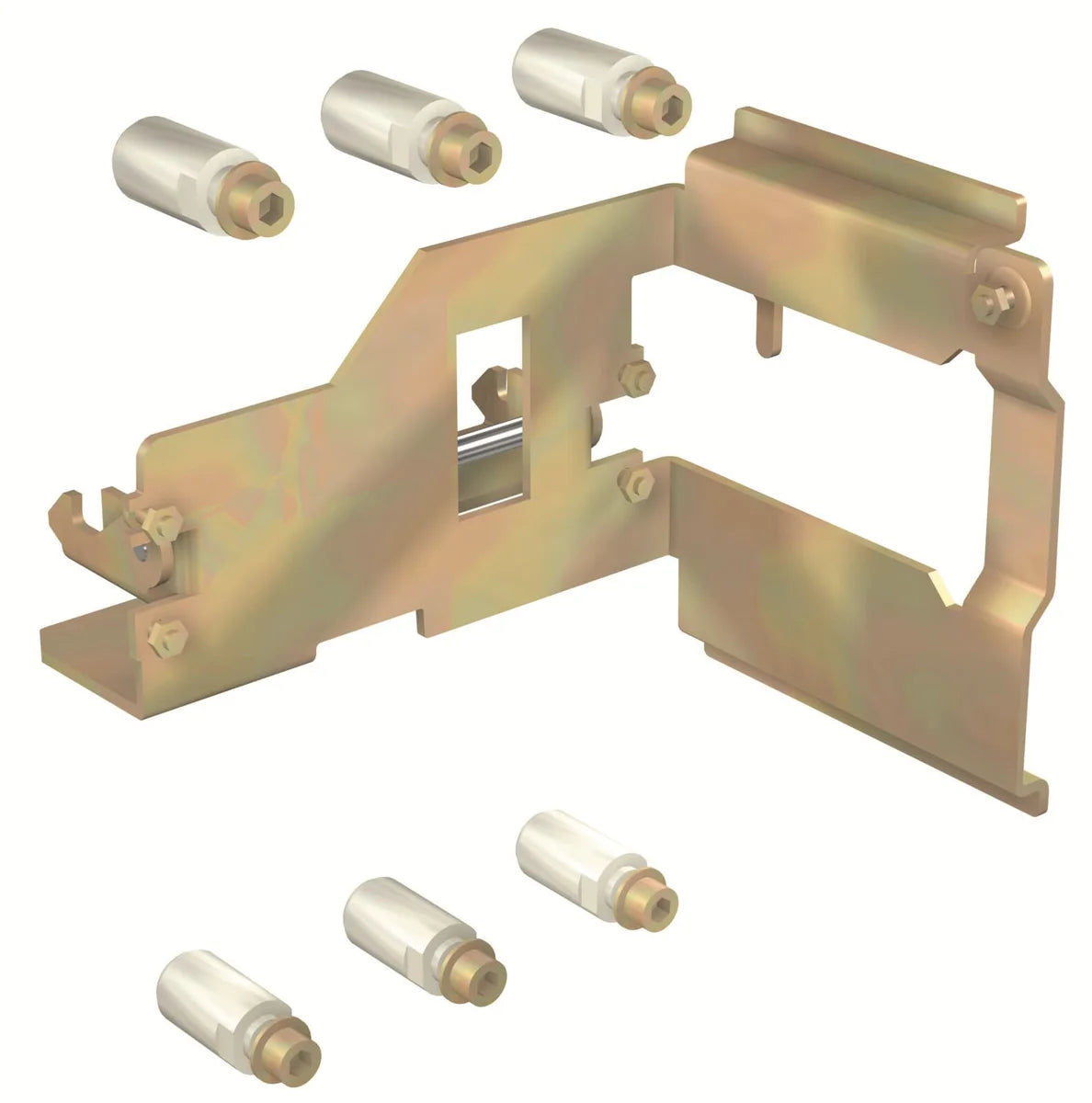

The ABB 1SDA054850R1 KIT MP T5 630 W 4p is a factory-certified conversion kit accessory designed to adapt a four-pole Tmax T5 630 moulded case circuit breaker to withdrawable mounting configuration. This Tmax T series accessory enables tool-assisted plug-in and withdrawable installation, supporting flexible panel design and simplified maintenance in industrial switchgear assemblies. The kit weighs 1.1 kg and fits within a 158 × 158 × 188 mm envelope.
The KIT MP T5 630 W 4p conversion kit is suited for engineers and panel builders who require withdrawable circuit breaker functionality in motor control centres (MCCs), main distribution boards, and industrial switchgear panels. By converting a fixed-mount Tmax T5 630 MCCB to a withdrawable unit, the KIT MP T5 630 W 4p allows the breaker to be safely isolated and removed from service without disturbing busbar connections, reducing downtime during inspection or replacement. It is widely specified in industrial automation, process control, and building services infrastructure projects.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Weight | 1.1 kg |
|---|
| Product Main Type | Accessories for Tmax T |
|---|---|
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| Suitable for Product Class | SACE Tmax T |
| Part number | 1SDA054850R1 |
|---|---|
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644559755 |
| ETIM class | EC002049 |
| eCl@ss | 27370402 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Configuration Type | Loose or configurable |
|---|---|
| Number of Poles | 4P |
| Standards | IEC |
| ETIM 10 | EC002049 - Modification set for power circuit breaker |
|---|---|
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370402 |
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 158 mm |
| Package Level 1 Height | 158 mm |
| Package Level 1 Depth / Length | 188 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 8015644559755 |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for 1SDA054850R1 is 85389099.
The EAN (GTIN) of 1SDA054850R1 is 8015644559755.
1SDA054850R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
